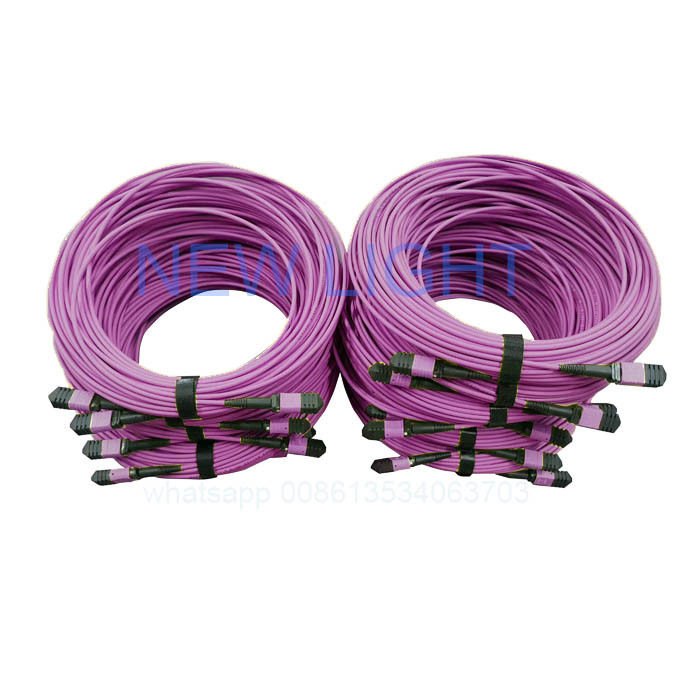

OM4 12 Core MPO MTP Cable with Customizable Length for High Density Data Centers

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

OM4 12 Core MPO MTP Cable with Customizable Length for High Density Data Centers

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP TO MPO / MTP

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Cable Color:

Magneta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

MPO/MTP Trunk Cable for Fiber Cassette

MPO/MTP trunk multicore cable assemblies enable rapid deployment of high-density backbone cabling in data centers and other high-fiber environments, significantly reducing network installation and reconfiguration time and costs. These cables interconnect cassettes, panels, and fan-outs with exceptional efficiency.

Applications

Single-mode or multi-mode options available
PC (plane) or APC (8 degree) configurations
Various insertion loss indices and color options
Stable performance with PIN fixed positioning
Plug-type connector with locking mechanism
High-density design for efficient wiring and management
Compliant with Telcordia GR-1435-CORE and RoHS standards

Key Features

Telecom network infrastructure
System cabling solutions
Precision telecom equipment connectivity
Cable loopback inspection capabilities

Technical Specifications

Parameter	Specifications
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	SM: ≤0.75dB (standard), ≤0.35dB (typical); MM: ≤0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12, 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Modes	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Cable Types	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

Type A, Type B, and Type C polarity methods ensure proper bi-directional allocation for optimal performance.

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact Information

WHATSAPP: +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity?

MOQ can be 1 piece, but we recommend larger quantities for better pricing and efficiency.

How is your product quality?

We adhere to IEC and European standards with imported production equipment and rigorous quality control. All products undergo 100% testing before delivery.

What is your lead time?

We maintain three factories with rapid production capabilities. Standard patch cords can be delivered in 2-3 working days for quantities up to 5,000 pieces.

Do you offer OEM/ODM services?

Yes, we provide comprehensive OEM/ODM services and can sign confidentiality agreements.

What are your payment terms?

We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, we offer 50% deposit with 50% balance before delivery.
