2m (6ft) 24 Core Single Mode MPO Female Connector Jumper Fiber Optic Cable

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP TO MPO / MTP

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Cable Color:

Magneta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Connector:

MPO,MTP

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

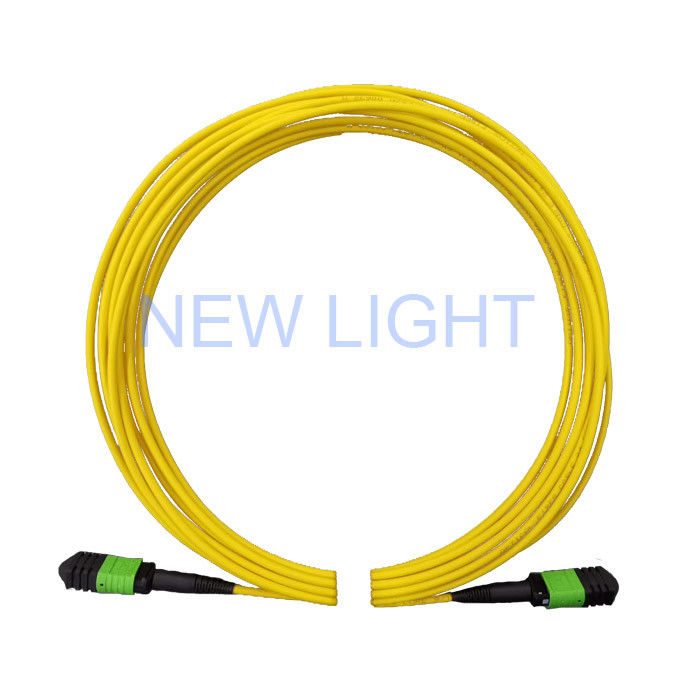

2m (6ft) MPO Female Connector Jumper / OS2 24 Core Single Mode Fiber Optic Cable

This 2-meter MPO Female Connector Jumper features OS2 24-core single mode fiber optic cable, designed for high-density data center applications requiring reliable performance and space optimization.

MPO/MTP Cable Overview

Our factory-terminated MPO/MTP fiber patch cords utilize simplex multi-fiber cables available in fiber counts of 4, 8, 12, 24, or 48 cores. These cables feature Male and Female MPO/MTP connectors on each end and are available in both multi-mode (62.5/125, 10G OM2/OM3/OM4, bend-insensitive fiber) and single-mode (G652D, G657A1) fiber types.

New Light MTP-MTP patch cords provide a cost-effective alternative to field termination, specifically designed for high-density fiber patching in data centers to optimize space utilization and simplify cable management.

Note: MTP connectors are fully compliant with MPO standards while achieving superior performance compared to generic MPO connectors.

MPO/MTP Cable Applications

Single-mode or multi-mode options available
PC (plane) or APC (8 degree) connector types
Various insertion loss indices and color options
Stable performance with PIN fixed positioning
Plug-type connector with locking mechanism
High-density design for efficient wiring and management
Compliant with Telcordia GR-1435-CORE and RoHS standards

MPO/MTP Cable Features

US Conec MTP connector and Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector with standard 0.6/0.75dB versions
Factory terminated and tested for guaranteed performance
Easy migration from 10GbE to 40GbE or 100GbE networks
Optional pulling eyes for fiber end protection during installation

Technical Parameters

Parameter	Specification
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	Single-mode: ≤0.75dB (standard), ≤0.35dB (typical) Multi-mode: ≤0.50dB (standard), ≤0.35dB (typical)
Return Loss	Single-mode: ≥60dB Multi-mode: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Modes	Single-mode (G652, G655, G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

WHATSAPP: +8613534063703

Polarity Methods

Three polarity methods (Type A, Type B, and Type C) ensure proper bi-directional allocation for optimal network performance.

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing depends on quantity. We offer competitive pricing for bulk orders.

Can you quote FOB price?

We typically recommend EXW or CFR pricing due to product size. Contact us for freight solutions.

How is your quality?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What's your lead time?

2-3 working days for 5,000 pieces. Regular products are available from stock.

What's your warranty?

2-year warranty for non-artificial damage. Artificial damage repairs are free with customer-paid freight.

What's your packing?

International export packaging with optional logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with customer-paid freight.

How can I order?

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% before delivery.
