10G OM3 12 Core LSZH MTP Fiber Optic Harness Cable for High-Density Data Networks

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP TO MPO / MTP

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Cable Color:

Magneta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Connector:

MPO,MTP

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

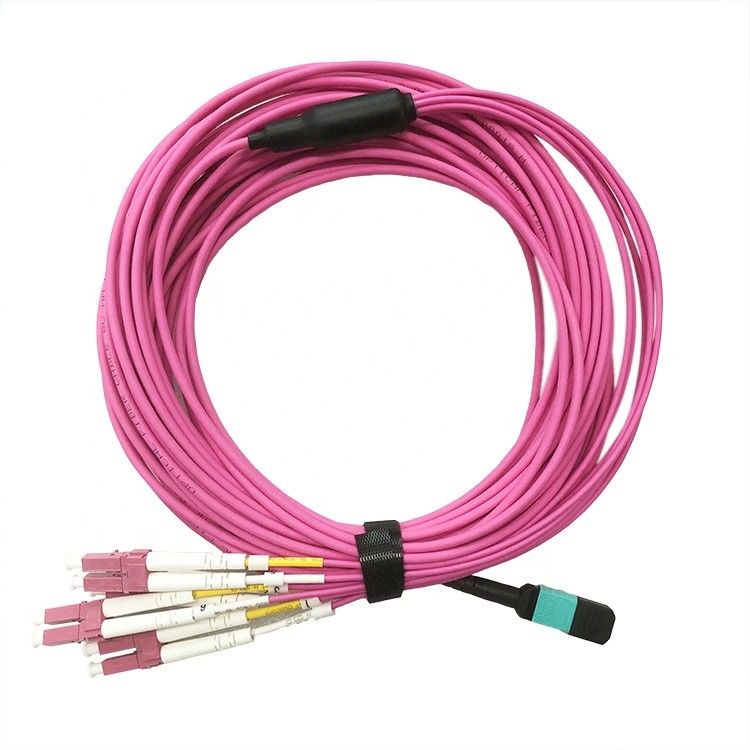

8 Fiber MTP-4LC Duplex 10G OM3 Fiber Optic Harness Fan Out / Breakout Cable

This 8 Fiber MTP-4LC Duplex 10G OM3 Fiber Optic Harness Fan-out/Breakout Cable provides reliable connectivity solutions for high-density data center applications.

Applications

Data communication networks
Optical system access networks
Storage area network fiber channel
High density architectures

Features and Benefits

100% factory pre-terminated and tested for optimal transfer performance
Rapid configuration and networking reduces installation time
Supports 40G and 100G network applications
Available jacket materials: LSZH, OFNR, OFNP
Supports up to 12F, 24F, 48F, 72F, 96F, 144F configurations with custom options available

MPO MTP Cable Overview

These fiber patch cords are simplex multi-fiber cables using MPO/MTP connectors in fiber counts of 4, 8, 12, 24, or 48. They feature Male and Female MPO/MTP connectors on each end and are available in multi-mode (62.5/125, 10G OM2/OM3/OM4, Bend-insensitive fiber) and single-mode (G652D, G657A1) fiber types.

New Light MTP-MTP Patch cords offer a cost-effective alternative to field termination, designed for high-density fiber patching in data centers where space saving and reduced cable management are critical. MTP connectors are fully compliant with MPO standards while achieving higher performance levels compared to generic MPO connectors.

MPO MTP Cable Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well as standard versions of 0.6/0.75dB
Factory terminated and tested
Easy migration from 10GbE to 40GbE or 100GbE
Optional pulling eyes to protect fiber ends during installation

Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP(F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Type (Other End)	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, Bundle fiber optic cable

Polarity Methods

Three polarity methods (Type A, Type B and Type C) are used to guarantee proper bi-directional allocation.

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery.

Contact Information

WHATSAPP: +8613534063703

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

What's the price?

Pricing varies by quantity. We offer competitive pricing for bulk orders.

Can you quote FOB price?

We typically recommend EXW or CFR pricing due to product size. Contact us for freight solutions.

How is your quality?

We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

What's your lead time?

Regular products are in stock. Custom orders: 2-3 working days for 5000 pieces.

What's your warranty?

2-year warranty for patch cords (non-artificial damage).

What's your packing?

International export packaging with optional logo printing available.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (freight paid by customer).

How can I order?

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% before delivery.
