|Connector Type:||MPO / MTP TO MPO / MTP||Material:||LSZH, OFNP Or OFNR|
|Mode Type:||OM4||Core Type:||12 Core|
|Cable Color:||Magneta||Length:||Can Be Customized According To Your Requirements|
|Certificate:||CE , ISO , RoHS||Delivery Time:||2-7 Working Days After Received Deposit|
|Production Ability:||500 Pcs / Day||Payment Term:||T/T , 30% Deposit In Advance|
mpo to mpo cable,
mpo fanout cable

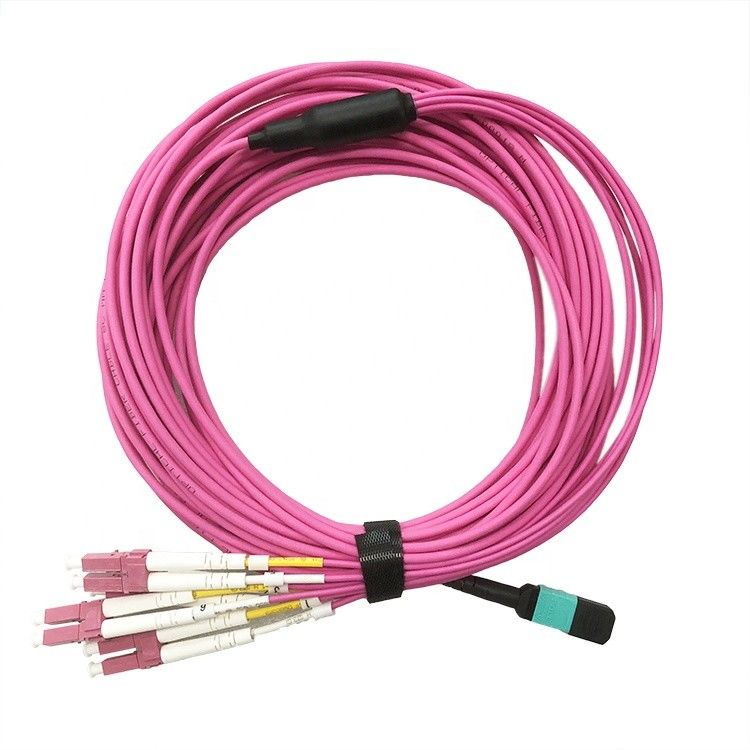

8 Fiber MTP-4LC Duplex 10G OM3 Fiber Optic Harness Fan-out/Breakout Cable
1.Data communication network
2.Optical system access network
3.Storage area network fiber channel
4.High density architectures
Features and benefits
1.100% pre-terminated and tested in factory to ensure transfer performance
2.Rapid configuration and networking, reduce installation time
3.Supports 40G and 100G network applications
4.Jacket material: LSZH, OFNR, OFNP available
5.Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
MPO MTP Cable Overview
This fiber patch cord are simplex multi-fiber cable using the MPO/MTP connector in fiber counts of 4, 8, 12, 24 or 48. They offer Male and Female MPO/MTP connectors on each end. Available in 4~48 fibers versions as well as multi-mode (62.5/125, 10G OM2/OM3/OM4, Bend-insensitive fiber, etc.) and single-mode(G652D, G657A1 etc.)fiber types
New Light MTP-MTP Patch cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Ps: The MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
