OM4 12 Core 40G-100G MPO MTP Cable MPO Fiber Optic Patch Cord for High-Speed Networks

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP TO MPO / MTP

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Cable Color:

Magneta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Connector:

MPO,MTP

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

OM3 OM4 40G-100G MPO MTP Cable / 3.6mm Round Trunk Cable MPO Fiber Optic Patch Cord

OM3 OM4 40G-100G 3.6mm round trunk cable MPO fiber optic patch cord designed for high-performance data center applications.

MPO MTP Cable Overview

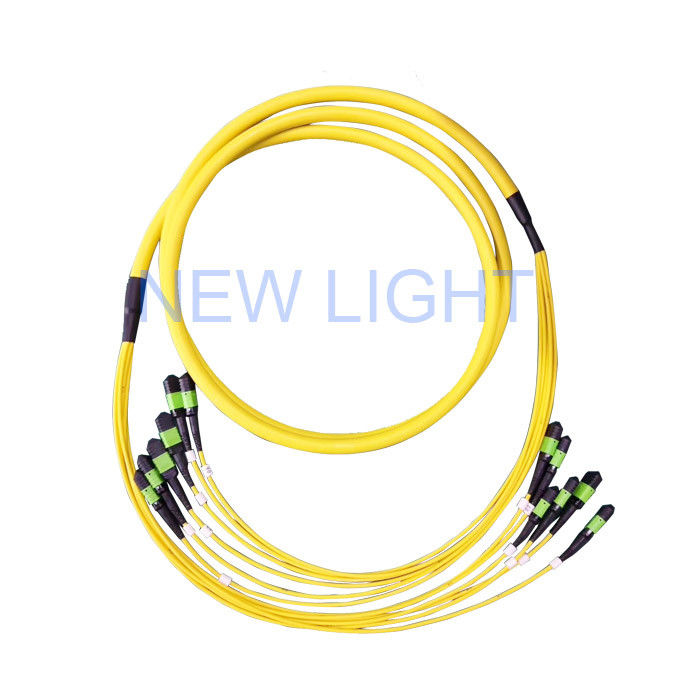

New Light MPO/MTP ribbon and trunk multicore cable assemblies facilitate rapid deployment of high-density backbone cabling in data centers and other high-fiber environments, reducing network installation or reconfiguration time and cost.

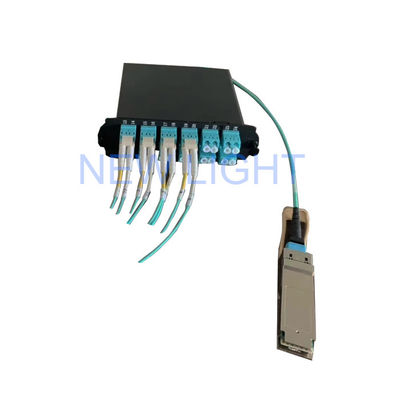

MTP/MPO connectors are used to interconnect cassettes, panels, or fan-outs, available in fiber types with standard 8, 12, 24, or 48 cores versions using a compact and rugged microcables structure. The compact cable design optimizes cableway use and improves airflow.

These MPO/MTP cables are built with the highest quality components. Low loss elite versions are offered, featuring low insertion loss for demanding high-speed networks where power budgets are critical.

MPO MTP Cable Applications

Single-mode or multi-mode available; PC (plane) or APC (8 degree) available
Different insertion loss index and various colors available
Stable performance index by PIN fixed position of connecting
Plug type connector with locking structure
High density design for convenient wiring and management systems
Comply with Telcordia GR-1435-CORE and RoHS standards

MPO MTP Cable Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well as standard versions of 0.6/0.75dB
Factory terminated and tested
Allow easy migration from 10GbE to 40GbE or 100GbE
Pulling eyes are provided as an option to protect fiber ends during installation

MPO MTP Cable Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM: ≤ 0.50dB (standard value), ≤0.35dB (typical value)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Type of Other End	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652, G655, G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Packaging

We pack cables using OPP bags and carton boxes to protect goods from damage during delivery.

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Q: Are you manufacturer?

A: Yes, we are manufacturer in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering single pieces as the cost and price will be higher than your budget.

Q: What's the price?

A: Price varies by quantity. We offer competitive pricing for bulk orders.

Q: Can you quote FOB price?

A: Yes, but due to small size and weight, most deliveries are by air. EXW price or CFR price is recommended.

Q: How is your quality?

A: We follow IEC and European standards with imported production equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: 2-3 working days for 5000 pieces. Regular products are in stock and we handle urgent orders.

Q: What's your warranty?

A: 2 years warranty for patch cords for non-artificial damage.

Q: What's your packing?

A: International export packaging with optional logo printing.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, pigtails (freight paid by customer).

Q: How can I order?

A: Send inquiry with product specifications and quantity. We provide quotation, proforma invoice, and arrange production after payment.

Q: What's your payment term?

A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
