5m OM4 (OM3) 50/125 MPO Female Connector to LC Duplex Multifiber Jumper with Customizable Length

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP TO MPO / MTP

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Cable Color:

Magneta

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Connector:

MPO,MTP

Supply Ability:

500 pcs per day

Highlight:

mpo to mpo cable

mpo fanout cable

Product Description

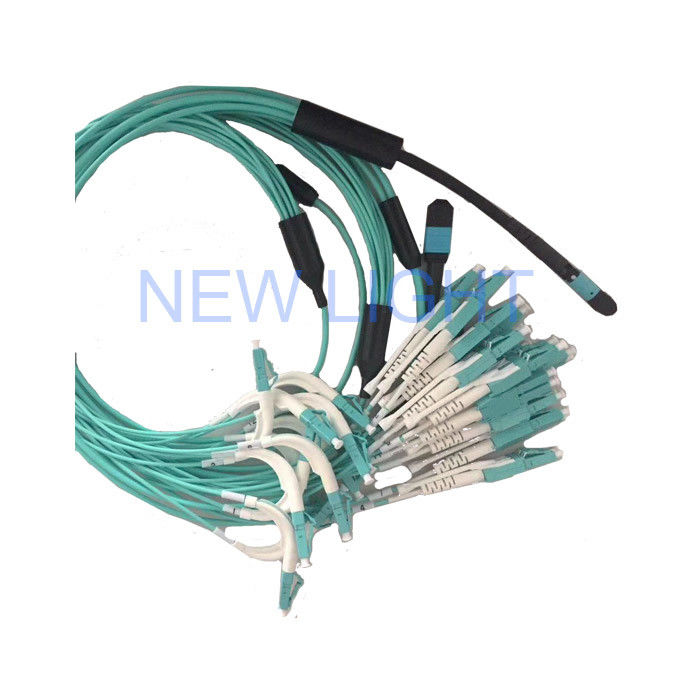

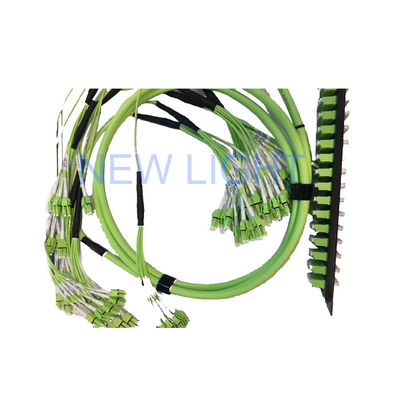

5m MPO Female Connector to LC Duplex OM4 (OM3) 50/125 Multifiber Jumper

This high-density MPO to LC breakout cable is engineered for fast ethernet, fiber channel, data center, and gigabit ethernet applications. The 8-fiber harness connects (4) SFP+ ports into an MPO adapter panel and MPO trunk system.

Product Overview

New Light MPO to LC breakout cables provide optimal performance for high-density fiber networks. These cables feature a compact and rugged microcable structure available in 8, 12, 24, or 48 core versions. The design optimizes cable management and improves airflow in data center environments.

Manufactured with premium components, these cables are available in low-loss elite versions featuring minimal insertion loss for demanding high-speed networks where power budgets are critical.

Applications

Available in single-mode or multi-mode configurations
PC (plane) or APC (8 degree) connector options
Various insertion loss indices and color options
Stable performance with PIN fixed positioning
Plug-type connector with locking mechanism
High-density design for efficient wiring and management
Compliant with Telcordia GR-1435-CORE and RoHS standards

Key Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector with standard 0.6/0.75dB versions
Factory terminated and tested for reliability
Easy migration from 10GbE to 40GbE or 100GbE
Optional pulling eyes for installation protection

Technical Specifications

Parameter	Specification
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

WHATSAPP +8613534063703

Polarity Methods

Three polarity methods (Type A, Type B, and Type C) ensure proper bi-directional allocation for optimal network performance.

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What is your minimum order quantity?

MOQ can be 1 piece, but we recommend larger quantities for better pricing.

How is pricing determined?

Pricing is based on quantity - larger orders receive more competitive pricing.

What quality standards do you follow?

We produce according to IEC and European standards in near dust-free workshops with imported production equipment. All products are 100% tested before delivery.

What is your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces, with regular products available from stock.

What is your warranty policy?

Patch cords carry a 2-year warranty against non-artificial damage from delivery date.

Do you offer OEM/ODM services?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.
