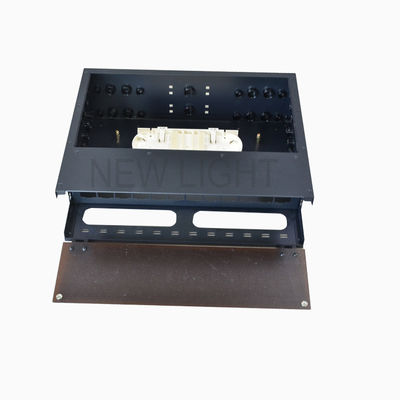

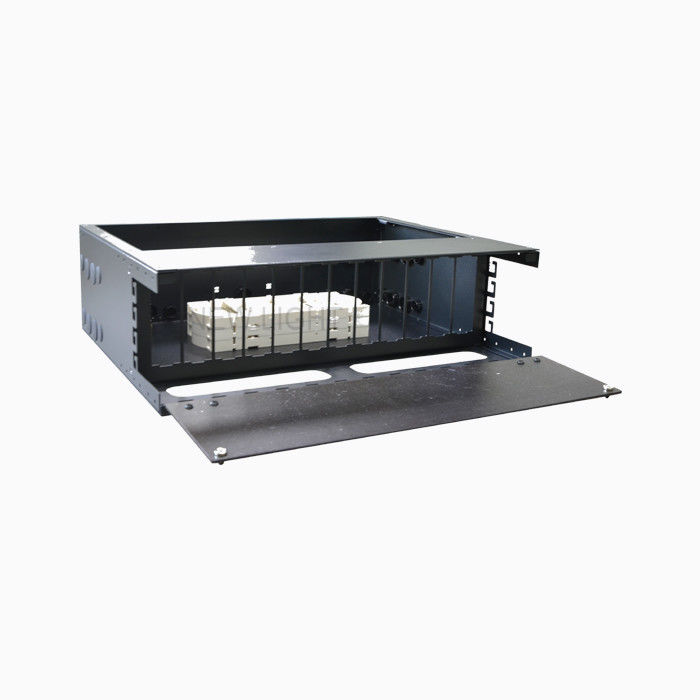

3U SC/APC Port Fiber Optic Patch Panel and Distribution Box with 19-inch Standard Size and Cold-Rolled Steel Construction

Brand Name:	New light
Model Number:	24 /12 fiber ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Weight:

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Type:

2U,draw Type Fiber Optic Path Panel,1U,Singlemode Or Mutil Mode

Material:

Cold-rolled Steel,Cold Rolled Steel

Application:

FTTH FTTB FTTX Network,Telecom,CATV,LAN

Product Name:

FTTH 12 24 48 96 144 Port Fiber Optic Patch Panel/ODF,24 Port Optic Fiber Terminal Box,Fiber Optic Distribution Box

Supply Ability:

10000 per day

Highlight:

odf optical fiber distribution frame

odf fiber optic patch panel

Product Description

Optical Fiber Patch Panel Fiber Distribution Box With 3U SC / APC Port

Product Overview

3U SC/APC port optical fiber patch panel fiber distribution box designed for professional telecommunications infrastructure.

Key Features

Standard 19-inch rack mount design with lightweight, robust construction
Interchangeable splice trays for flexible configuration
Compatible with both ribbon and single fiber applications
Multiple panel plates to accommodate various adapter interfaces
Front marking system for easy identification and operation
Available in 24C, 36C, 48C, 96C, 144C configurations
Optional fiber optic pigtails and adapters
Streamlined management and operation

Product Specifications

Types Available

Rack-mount fixed type
Rack-mount drawer type
Rack mount ODF
Indoor wall-mount type
Outdoor waterproof wall-mount type

Properties

Protective connection between cables and pigtails
Connection between optical cables and optical communication devices
Unique structure with easy installation for indoor use

Classification & Capacity

Available in Rack Mount and Wall Mount configurations
Compatible with FC, ST, SC, LC adapters
Capacity options: 12, 24, 32, 48, 64, 72, 96 splices
19-inch standard: 1U for 12/24 splices, 2U for 32/48 splices, 3U for 64/72/96 splices
Suitable for ribbon and bunchy fiber cable

Components

Cover: Easy-open design with outlet device for fiber metal high voltage protective earthing
Inner Components:
- Bracket: Supports inner structure
- Fiber Optic Splice Tray: Stores fiber connectors and spare fibers (≥1.6m length)
- Fixing Device: Secures fiber protective tubes and pigtails
Heat shrink protective sleeves for fiber connector protection

Applications

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN networks
CATV systems

Mechanical and Environmental Characteristics

Parameter	Specification
Operating temperature	-25℃ to +40℃
Storage temperature	-25℃ to +55℃
Relative humidity	≤85% (+30℃)
Air pressure	70Kpa to 106Kpa
Color	Black

Dimensions

Model	Fiber Quantity	Height	Dimension (LxWxH)
Rack mount	12/24/48/96 core	1U	430 * 354.1 * 44mm

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering single units as costs are higher. Larger quantities receive more competitive pricing.

What's the price?

Pricing depends on quantity. We provide our best pricing upon receiving your quantity requirements. Bulk orders receive highly competitive rates.

Can you quote FOB price?

Yes, but due to compact size and weight, most shipments go via air (DHL, TNT, UPS, FEDEX). EXW or CFR pricing is often better. We provide freight quotes with product pricing for reference.

How is your quality?

We produce according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are stocked for urgent orders.

What's your warranty?

Patch cords carry a 2-year warranty from delivery for non-artificial damage. Artificial damage repairs are free, but customer covers freight.

What's your packing?

We use international export packaging and can print your logo on packaging.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adapters, attenuators, patch cords, and pigtails (customer pays freight). Higher-value products require sample charge refundable with order.

How can I order?

Contact us with product details, specifications, quantity, and shipping address
We provide pricing and lead time based on your requirements
Upon acceptance, we issue Proforma Invoice
Production begins after payment receipt
We confirm shipping details and provide tracking after delivery

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
