OM4 12 Core MPO MTP Cable for 40G 100G High-Speed Data Transmission

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

OM4 12 Core MPO MTP Cable for 40G 100G High-Speed Data Transmission

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Connector:

MPO,MTP

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

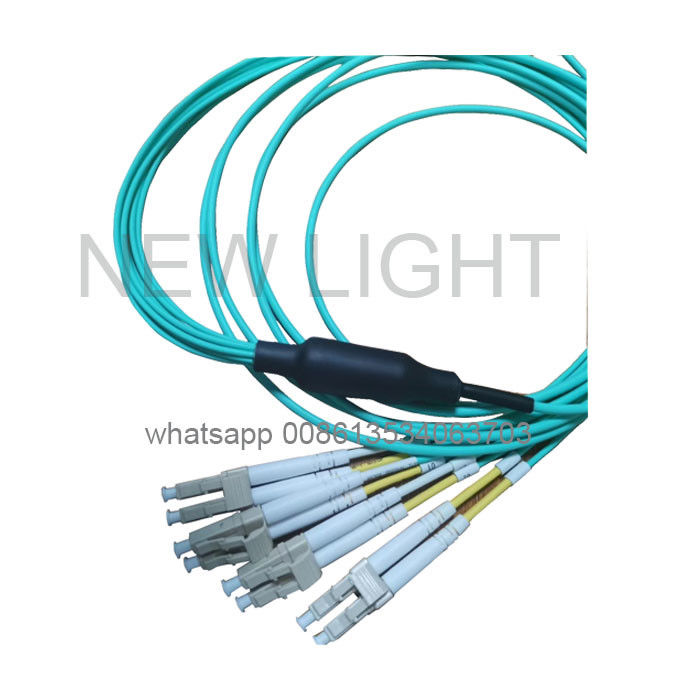

LC Uniboot Branch MPO MTP Cable

High-performance OM3/OM4 MPO patch cable designed for 40G/100G Ethernet applications with LC uniboot branch connectivity.

Applications

Multimode Fiber Applications (OM3/OM4 50/125)

Direct connection between QSFP+ transceivers for 40GBase-SR4
Direct connection between QSFP28 transceivers for 100GBase-SR4
Connection to MPO trunk cables

Singlemode Fiber Applications (OS1/OS2 9/125)

Direct connection between QSFP+ PLR4 transceivers for 40G Ethernet
Direct connection between QSFP28 PLR4 transceivers for 100G Ethernet
Connection to MPO trunk cables

Both multimode and singlemode patch cords typically feature polarity B and female connectors.

Product Overview

Our 40G parallel networks utilize MPO trunk cables and patch cables connected via MPO adapter modules. These cables can also enable direct connections between 40G or 100G ports. All products are part of our M400 Series.

While these cables typically use 12-fiber MPO connectors and cables, only 8 fibers are utilized in SR4 40G/100G Ethernet transmission. The 12-fiber design offers greater flexibility for integration with duplex 10G networking at minimal additional cost.

Key Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well as standard 0.6/0.75dB versions
Factory terminated and tested
Easy migration from 10GbE to 40GbE or 100GbE
Optional pulling eyes for fiber end protection during installation

Technical Specifications

Item	Technical Parameters
Connector	MPO/MTP (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard), ≤0.35dB (typical); MM: ≤ 0.50dB (standard), ≤0.35dB (typical)
Return Loss	SM: ≥60dB; MM: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Type (Other End)	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

Polarity Methods

Three polarity methods (Type A, Type B and Type C) ensure proper bi-directional allocation for reliable connectivity.

Packaging

Products are securely packaged in OPP bags and carton boxes to prevent damage during delivery.

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-unit orders incur higher costs.

Q: What's the price?

A: Pricing depends on quantity. We provide competitive pricing for larger orders upon request.

Q: Can you quote FOB price?

A: We primarily ship via air couriers (DHL, TNT, UPS, FEDEX). For large shipments, we can provide sea freight options. EXW or CFR pricing is typically more suitable.

Q: How is your quality?

A: We produce according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

Q: What's your lead time?

A: We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock.

Q: What's your warranty?

A: Patch cords carry a 2-year warranty against non-artificial damage. For artificial damage, we provide free repairs with customer covering freight costs.

Q: What's your packing?

A: We use international export packaging and can print customer logos upon request.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). Higher-value products require sample charges refundable with order placement.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time. Orders proceed with proforma invoice and payment confirmation.

Q: What are your payment terms?

A: T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
