12 Core OM4 MPO MTP Fiber Optic Cable with Duplex LC Connector for High-Density Networks

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Connector Type:

MPO / MTP TO MPO / MTP

Material:

LSZH, OFNP Or OFNR

Mode Type:

Length:

Can Be Customized According To Your Requirements

Certificate:

CE , ISO , RoHS

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Connector:

MPO,MTP

Color:

Aqua,orange,yellow

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

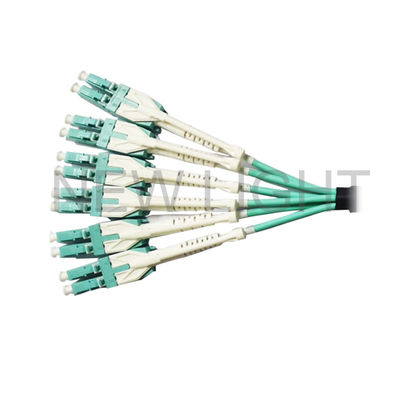

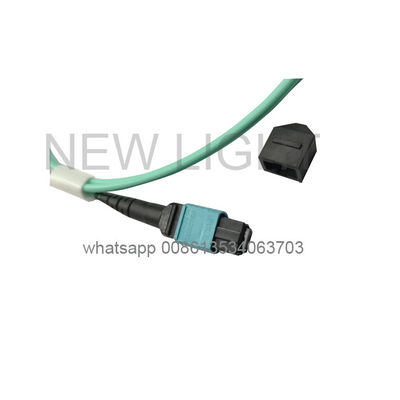

MTP / MPO - LC Duplex 12 Core Fiber Optic Cable Multimode OM3 / OM4

MTP / MPO - LC duplex 12 core multimode OM3 / OM4 fiber optic cable designed for high-density network applications.

Applications

Duplex 1G to 10G Ethernet Networks

MPO patch cables with 12 fiber connectors and cables are primarily used in distribution areas requiring high-density patching fields. These cables increase patching density by a factor of six compared to standard duplex LC-LC patch cables. Typically featuring polarity C with male MPO connectors, they connect to polarity C trunk/backbone MPO cables with female connectors.

Duplex 25G Ethernet Networks

This emerging application utilizes 8 fiber MPO connectors and cables for BASE-8 configurations. As 25G data rate equipment becomes more prevalent, this application is projected for rapid growth.

40G and 100G SR4 or PSM4 Ethernet Parallel Transmission Networks

These configurations typically use MPO 12 fiber connectors and cables, with only 8 fibers utilized for SR4 40G or 100G Ethernet transmission. The 12 fiber design offers compatibility with duplex 10G networking, providing greater flexibility and multiple purposes with minimal cost difference.

MPO MTP Cable Overview

40G parallel networks are created by combining MPO trunk cables and MPO patch cables via MPO adapter modules. Direct connections between two 40G or 100G ports can also be established using the same MPO patch cable.

MPO MTP Cable Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well standard versions of 0.6/0.75dB
Factory terminated and tested
Allow easy migration from 10GbE to 40GbE or 100GbE
Pulling eyes are provided as an option to protect the fiber ends during installation

MPO MTP Cable Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP(F or M) \| MPO/MTP (F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
Return Loss	SM:≥60dB; MM:≥35dB
The MPO end type	Male: with guide pin; Female: without guide pin
Fiber count	8,12&24 fiber
Connector type of the other end	MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type	250um ribbon fiber,ribbon cable,Bundle fiber optic cable

Polarity Methods

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

WHATSAPP +8613534063703

Frequently Asked Questions

Are you manufacturer?

Yes, we are manufacturer in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering single units as costs and prices will be higher. Larger quantities receive more competitive pricing.

What's the price?

Pricing depends on quantity. We provide our best pricing based on your order volume, with competitive rates for large quantities.

Can you quote FOB price?

Yes, but due to small size and weight, most shipments are via air couriers (DHL, TNT, UPC, FEDEX). EXW or CFR pricing is often more suitable. We provide freight quotes with product pricing for reference.

How is your quality?

Our production follows IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products are 100% tested before delivery.

What's your lead time?

We operate three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are typically in stock, and we accommodate urgent orders.

What's your warranty?

Patch cords carry a 2-year warranty from delivery for non-artificial damage. For artificial damage, we provide free repairs with customer responsible for freight costs.

What's your packing?

We use international export packaging and can print your logo on packaging materials.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails with customer paying freight. Higher-value products require sample charges refundable with subsequent orders.

How can I order?

Contact us with product specifications and quantity
We provide pricing and lead time
Proforma invoice issued after acceptance
Production begins after payment
Shipping confirmation with tracking provided

What your payment term?

T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
