6 X 4LC Ports Rack Mount Fiber Optic Patch Panel with Phosphor Bronze Material for Data Centers

Brand Name:	New light
Model Number:	6/24 /48 core ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Aplication:

Data Centers,pre-terminated Installations

Interface:

Powder Coated

Product Name:

6 X 4LC Ports Optic Rack Mount Patch Panels / Black Box Fiber Optics Patch Panel

Tray:

12/24/48/72/96 Fiber

Weight:

Material:

Phosphor Bronze

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Type:

2U,draw Type Fiber Optic Path Panel,1U,Singlemode Or Mutil Mode

Supply Ability:

10000 per day

Highlight:

fiber optic accessories

fiber optic termination panel

Product Description

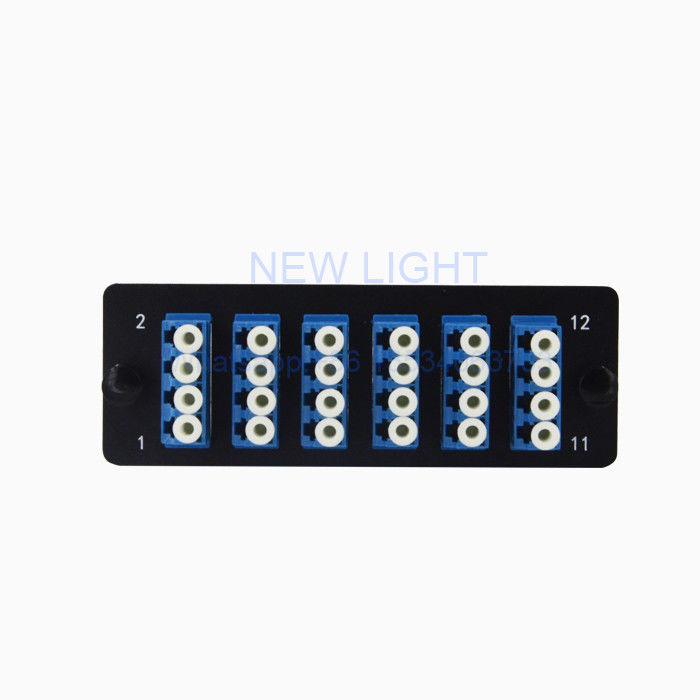

6 x 4LC Ports Optic Rack Mount Patch Panels

Black Box Fiber Optics Patch Panel designed for rack mount applications with 6 x 4LC ports configuration.

Product Overview

The Fiber Optic Terminal Box is a fiber optic management product used to distribute and protect optical fiber links in FTTH networks. Designed for the distribution and terminal connection of various optical fiber systems, these units are available in sizes that fit the most common distribution requirements.

Constructed from high-quality cold-rolled steel sheet with static plastic spraying treatment, this micro-sized fiber optical termination box is intended for indoor rack mount chassis installation.

Note: This box does not include adapters and pigtails. These can be installed upon request.

Available Configurations

Available in 12 fiber, 24 core, 48, 72 and 144 fiber configurations. Standard 1U, 2U, 3U and 4U (LIU) Fiber Optic Patch Panels and Optical Distribution Frames (ODF).

The splice tray inside the box is made of ABS material and accommodates 0.9mm, 2.0mm & 3.0mm Fiber Cable.

Each Patch Panel is fully loaded with panels, adaptors, splice trays and accessories, ready for immediate installation.

Technical Specifications

MTP/MPO standard compliant multifibre connector
LC (SFF data center standard), SC discrete interface
OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)
12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts
Polarity A (standard), B or C
Factory terminated and tested
High performance zirconia sleeve adaptors

Technical Parameters

Parameter	Unit	FDF-1U	FDF-2U	FDF-3U
Fiber Capacity	Core	≤24	≤48	≤72
Number of Tray	PCS	1	2	4
Height		1U	2U	3U
Dimension Width	mm	482	482	482
Dimension Depth	mm	305	305	305
Remark		Rack Mount	Rack Mount	Rack Mount

Applications

Telecommunication networks
Local Area Networks
FTTH
CATV networks
Active device termination

Features & Benefits

Low excess loss & high performance
Retractable splicing tray
Convenience and ease of handling
Indoor use, outdoor use customizable

Environmental Specifications

Projects	Parameter
Operating temperature	-25℃~+40℃
Storage temperature	-25℃~+55℃
Relative humidity	≤85％(+30℃)
Air pressure	70Kpa~106Kpa
Color	Black

Dimensions

Model	Fiber Quantity	Height	Dimension (LxWxH)
Rack Mount	12 / 24 / 48 / 96 core	1U	430354.144mm
