Fiber Optic Patch Panel

Custom 1U Form Factor Fiber Optic Patch Panel with Slide-Out Tray for 19 Inch Rack Mount

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Custom 1U Form Factor Fiber Optic Patch Panel with Slide-Out Tray for 19 Inch Rack Mount

Brand Name:	New light
Model Number:	6/24 /48 core ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Front Panel:

LC , SC , ST , FC , E2000

Size:

19 Inch

Interface:

Powder Coated

Product Name:

Custom Made Fiber Optic Patch Panel 3 LGX Adapter Plates For Rack Mount Patch Panel

Weight:

Material:

Phosphor Bronze

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Type:

2U,draw Type Fiber Optic Path Panel,1U,Singlemode Or Mutil Mode

Supply Ability:

10000 per day

Highlight:

fiber optic accessories

fiber optic termination panel

Product Description

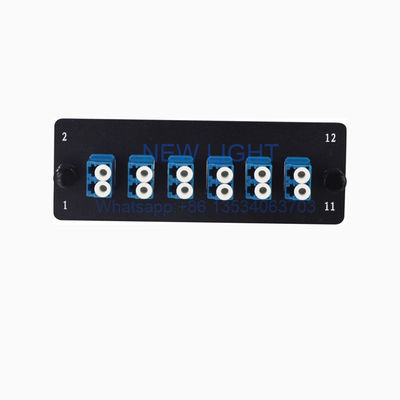

Custom Made Fiber Optic Patch Panel with 3 LGX Adapter Plates

1U 19" Rack Mount Patch Panel Overview

Our 1RU Patch Panel provides flexible fiber patching configurations in a compact 1RU form factor, accommodating 3 LGX adapter plates, MPO break modules, or splitter cassettes.

Key Features

LC (SFF data center standard) and SC discrete interfaces
Supports OS1/2, OM3, OM4 fiber grades (OM1 and OM2 available)
12 and 24 fiber versions - 12 LC (Duplex) / SC (Simplex) optical parts
Polarity A (standard), B or C options
Factory terminated and tested for reliability
High performance zirconia sleeve adaptors
Slide-out trays with removable front and back doors
Multiple cable retention brackets and tie-down spots
Spring-loaded stop latches for secure tray positioning
Rackmount installation for standard 19-inch racks

Construction & Design

Constructed from durable 14 gauge aluminum, these lightweight and rugged enclosures feature comprehensive cable organization with slack management spools, cable routing rings, and tie-down bridge stances. The splice tray inside is made of ABS material, compatible with 0.9mm, 2.0mm & 3.0mm fiber cables.

Technical Specifications

Parameter	Unit	FDF-1U	FDF-2U	FDF-3U
Fiber Capacity	Core	≤24	≤48	≤72
Number of Trays	PCS	1	2	4
Height		1U	2U	3U
Width	mm	482	482	482
Depth	mm	305	305	305
Remark		Rack Mount	Rack Mount	Rack Mount

Applications

Telecommunication networks
Local Area Networks
FTTH (Fiber to the Home)
CATV networks
Active device termination

Features & Benefits

Low excess loss & high performance
Retractable splicing tray
Convenience and ease of handling
Indoor use, outdoor use customizable

Environmental Specifications

Operating temperature: -25℃ to +40℃

Storage temperature: -25℃ to +55℃

Relative humidity: ≤85％ (+30℃)

Air pressure: 70Kpa to 106Kpa

Color: Black

Dimensions

Model	Fiber Quantity	Height	Dimension (LxWxH)
Rack Mount	12/24/48/96 core	1U	430 * 354.1 * 44mm

Each patch panel is fully loaded with panels, adaptors, splice trays, and accessories, ready for immediate installation.
