1U 19 Inch Rack Mount Fiber Optic Patch Panel with LGX Adapter Plates and Slide-Out Drawer Enclosure

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

1U 19 Inch Rack Mount Fiber Optic Patch Panel with LGX Adapter Plates and Slide-Out Drawer Enclosure

Brand Name:	New light
Model Number:	6/24 /48 core ptach panel
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag+Carton box
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS ;ISO9001

Aplication:

Data Centers,pre-terminated Installations

Front Panel:

LC , SC , ST , FC , E2000

Size:

19 Inch

Interface:

Powder Coated

Product Name:

24 Fiber Rack Mounted MPO/MTP Fiber Optic Patch Panel

Tray:

12/24/48/72/96 Fiber

Weight:

Material:

Phosphor Bronze

Storage Temperature:

-45°C~+60°C

Product Type:

Slide-out Drawer Enclosure With Splice Trays

Dimensions:

1.75"H X 17.0"W X 14.0"D,485mmx294mmx44mm

Type:

2U,draw Type Fiber Optic Path Panel,1U,Singlemode Or Mutil Mode

Supply Ability:

10000 per day

Highlight:

fiber optic accessories

fiber optic termination panel

Product Description

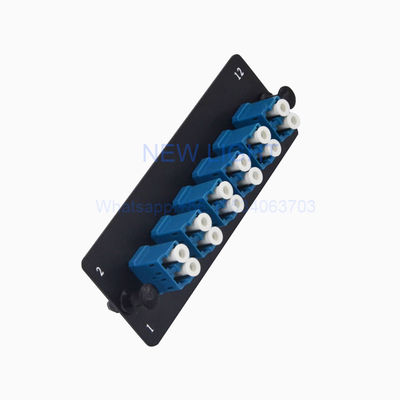

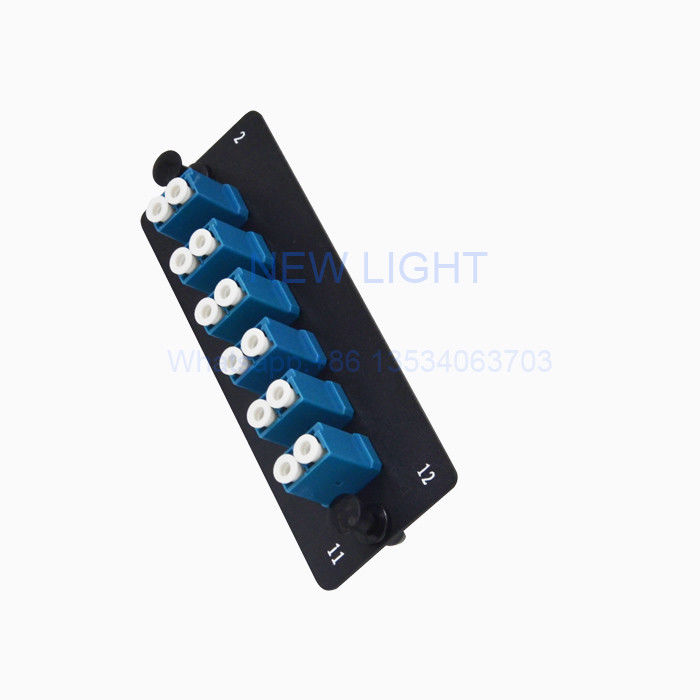

1U 19" Optical Distribution Frame for LGX Adapter Plates

Rack mount patch panel designed for efficient fiber optic distribution in data center and network environments.

Product Overview

Rack Mount Adapter Plate Holders provide a compact, cost-effective solution for fiber breakout in rack mount environments where splicing is not required. Constructed from durable, powder-coated steel in standard black finish.

Available in 12, 24, 48, 72, and 144 fiber configurations with standard 1U, 2U, 3U, and 4U (LIU) Fiber Optic Patch Panels and Optical Distribution Frames (ODF). Each unit includes ABS splice trays compatible with 0.9mm, 2.0mm, and 3.0mm fiber cables.

Fully loaded with panels, adapters, splice trays, and accessories, ready for immediate installation. Compatible with standard RLH Fiber Adapter Plates and any LGX footprint adapter plates.

Technical Specifications

Parameter	Unit	FDF-1U	FDF-2U	FDF-3U
Fiber Capacity	Core	≤24	≤48	≤72
Number of Trays	PCS	1	2	4
Height		1U	2U	3U
Width	mm	482	482	482
Depth	mm	305	305	305
Remark		Rack Mount	Rack Mount	Rack Mount

Key Features

MTP/MPO standard compliant multifiber connector
LC (SFF data center standard), SC discrete interface
OS1/2, OM3, OM4 fiber grades (OM1 and OM2 available)
12 and 24 fiber versions - 12 LC (Duplex) / SC (Simplex) optical parts
Polarity A (standard), B or C
Factory terminated and tested
High performance zirconia sleeve adapters
Low excess loss & high performance
Retractable splicing tray
Convenience and ease of handling
Indoor use, outdoor use customizable

Applications

Telecommunication networks
Local Area Networks
FTTH
CATV networks
Active device termination

Environmental Specifications

Parameter	Specification
Operating temperature	-25℃ to +40℃
Storage temperature	-25℃ to +55℃
Relative humidity	≤85％ (+30℃)
Air pressure	70Kpa to 106Kpa
Color	Black

Dimensions

Model	Fiber Quantity	Height	Dimension (LxWxH)
Rack Mount	12/24/48/96 core	1U	430 * 354.1 * 44mm
