|Name:||MPO MTP Cable||Material:||LSZH, OFNP Or OFNR|
|Mode Type:||OM4||Core Type:||12 Core|
|Delivery Time:||2-7 Working Days After Received Deposit||Production Ability:||500 Pcs / Day|
|Payment Term:||T/T , 30% Deposit In Advance||Connector:||MPO,MTP|
|Color:||Aqua,orange,yellow,Yellow/ Red/ Aqua|
mpo fiber cable,
mpo to mpo cable

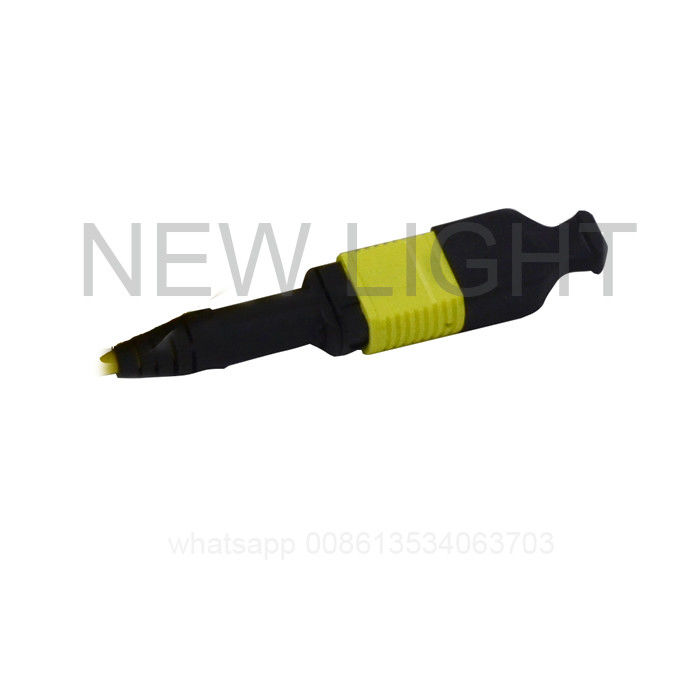

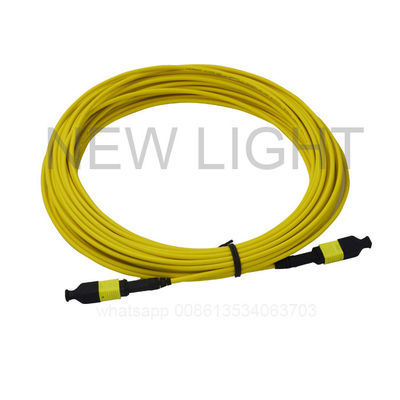

3.0 mm mpo mtp fiber connector 8 strand single mode fiber optic cable
Cable Assemblies’ MTP and MPO connectors can hold up to 12 fibers or 6 duplex channels. The compact design of the MPO/MTP connectors allow for high-density connections between network equipment. MTP/MPO fiber cables feature single mode or multimode function. Connectors for single-mode fiber have angled ends to minimize back-reflection, while multimode fiber versions typically have flat ends. MTP is a brand name for a version of the MPO connector with improved specifications.
MPO MTP Cable Application
Multimode (OM3 or OM4 50/125) fibre MPO patch cables have three main applications in this application:
To connect directly between two QSFP+ transceivers for 40GBase-SR4
To connect directly between two QSFP28 transceivers for 100GBase-SR4
To connect to MPO trunk cables
Singlemode (OS1 or OS2 9/125) fibre MPO patch cables have similar applications:
To connect directly between two QSFP+ PLR4 (also called LR4 PSM) transceivers for 40G Ethernet
To connect directly between two QSFP28 PLR4 (also called LR4 PSM) transceivers for 100G Ethernet
To connect to MPO trunk cables
For both multimode and singlemode these patch cords will typically have polarity B and have female connectors.
MPO MTP Cable Overview
New Light 40G parallel networks are created by combining MPO trunk cables and MPO patch cables via MPO adapter modules. Direct connection between two 40G or 100G ports can also be made using the same MPO patch cable. All these products are found within our M400 Series.
Typically, these cables will use an MPO 12 fibre connector and 12 fibre cable. However, in the transmission of SR4 40G or 100G Ethernet only 8 fibres within these cables are used. The advantage of using 12 fibre cables (as opposed to 8 fibre) is that the cabling is often used alongside duplex 10G networking and so these cables can have multiple purposes and offer greater flexibility with negligible cost difference.
MPO MTP Cable Technical Parameter
|Connector||MPO/MTP(F or M)||MPO/MTP (F or M)|
|Operation Temperature||-40°C ~ +80°C|
|Storage Temperature||-40°C ~ +85°C|
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value);
MM:≤ 0.50dB (standard value), ≤0.35dB (typical value);
|Return Loss||SM:≥60dB; MM:≥35dB|
|The MPO end type||Male: with guide pin; Female: without guide pin|
|Fiber count||8,12&24 fiber|
|Connector type of the other end||MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000|
|Fiber mode||Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)|
|Fiber cable type||250um ribbon fiber,ribbon cable,Bundle fiber optic cable|
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
