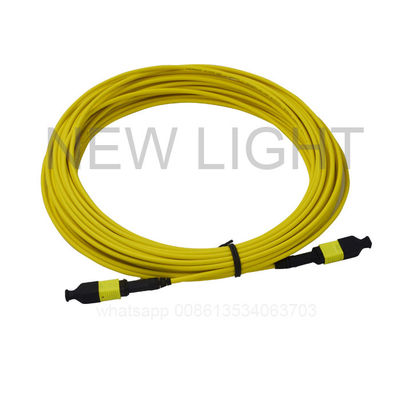

3.0mm MPO MTP Cable with 8 Strand Single Mode Fiber Optic Cable for High-Density Connections

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Connector:

MPO,MTP

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

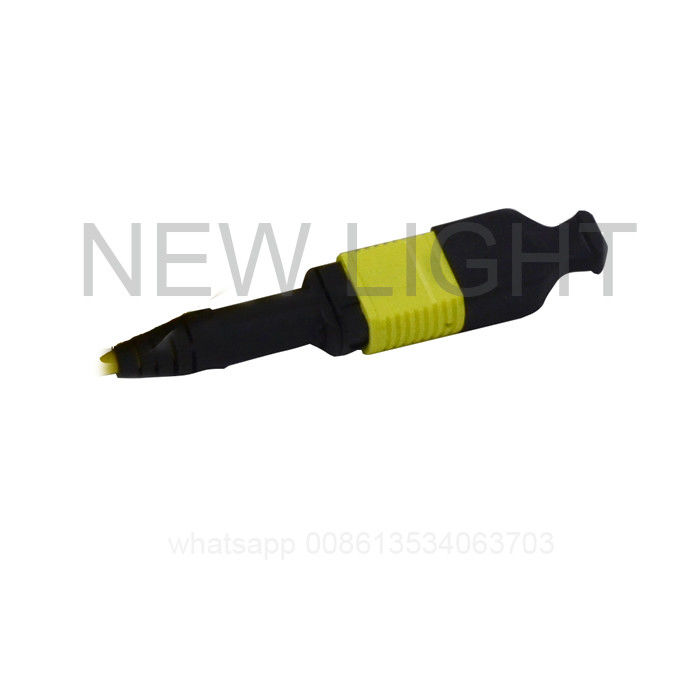

3.0 Mm MPO MTP Cable Fiber Connector, 8 Strand Single Mode Fiber Optic Cable

Cable Assemblies' MTP and MPO connectors can hold up to 12 fibers or 6 duplex channels. The compact design of the MPO/MTP connectors allow for high-density connections between network equipment. MTP/MPO fiber cables feature single mode or multimode function. Connectors for single-mode fiber have angled ends to minimize back-reflection, while multimode fiber versions typically have flat ends. MTP is a brand name for a version of the MPO connector with improved specifications.

MPO MTP Cable Applications

Multimode (OM3 or OM4 50/125) Applications

Connect directly between two QSFP+ transceivers for 40GBase-SR4
Connect directly between two QSFP28 transceivers for 100GBase-SR4
Connect to MPO trunk cables

Singlemode (OS1 or OS2 9/125) Applications

Connect directly between two QSFP+ PLR4 (LR4 PSM) transceivers for 40G Ethernet
Connect directly between two QSFP28 PLR4 (LR4 PSM) transceivers for 100G Ethernet
Connect to MPO trunk cables

For both multimode and singlemode applications, these patch cords typically have polarity B and feature female connectors.

MPO MTP Cable Overview

New Light 40G parallel networks are created by combining MPO trunk cables and MPO patch cables via MPO adapter modules. Direct connection between two 40G or 100G ports can also be made using the same MPO patch cable. All these products are found within our M400 Series.

Typically, these cables use an MPO 12 fibre connector and 12 fibre cable. However, in the transmission of SR4 40G or 100G Ethernet only 8 fibres within these cables are used. The advantage of using 12 fibre cables (as opposed to 8 fibre) is that the cabling is often used alongside duplex 10G networking, offering greater flexibility with negligible cost difference.

MPO MTP Cable Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well standard versions of 0.6/0.75dB
Factory terminated and tested
Allow easy migration from 10GbE to 40GbE or 100GbE
Pulling eyes are provided as an option to protect the fiber ends during installation

MPO MTP Cable Technical Parameters

Item	Technical Parameters
Connector	MPO/MTP(F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value)
Return Loss	SM:≥60dB; MM:≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Type of Other End	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, Bundle fiber optic cable

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Packaging

We pack products using OPP bags and carton boxes to protect goods from damage during delivery.

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Q: Are you manufacturer?

A: Yes, we are manufacturer in Shenzhen, China

Q: What's your MOQ?

A: MOQ can be 1 pcs, but we don't recommend ordering just 1 piece as the cost will be higher. Larger quantities receive more competitive pricing.

Q: What's the price?

A: Pricing depends on quantity. After you specify your quantity, we will offer our best price. Large quantities receive very competitive pricing.

Q: Can you quote FOB price?

A: Yes we can, but due to the small size and weight, most deliveries are by air (DHL, TNT, UPC, FEDEX, etc.). EXW price or CFR price is usually better. For large quantities with dozens of carton boxes, we can provide sea freight options.

Q: How is your quality?

A: Our production follows IEC and European standards in nearly dust-free workshops. We use imported production equipment and quality control equipment, especially MTP Daisi equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pcs. Regular products are in stock and we can handle urgent orders.

Q: What's your warranty?

A: For patch cords, we offer 2 years warranty from delivery for non-artificial damage. For artificial damage, we can repair for free but freight is paid by customer.

Q: What's your packing?

A: We use international export packaging and can print your logo on the packaging.

Q: Can you do OEM/ODM?

A: Yes, we can. We are a manufacturer and all products accept OEM/ODM. We can sign confidentiality agreements.

Q: Can I have a sample?

A: For adaptors, attenuators, patch cords, and pigtails, we can provide free samples with freight paid by customer. For high-value products, sample charge and freight are required upfront but will be returned after order placement.

Q: How can I order?

A: 1. Send inquiry with product name, specifications, quantity, and delivery address. 2. We provide best pricing and lead time. 3. After acceptance, we issue Proforma Invoice. 4. Production begins after payment. 5. We confirm delivery information and provide tracking number. 6. We strive for long-term cooperation.

Q: What is your payment term?

A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit in advance, 50% balance before delivery.
