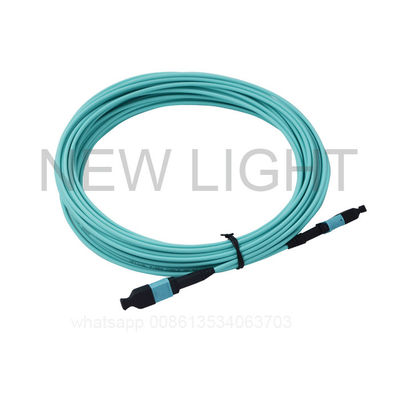

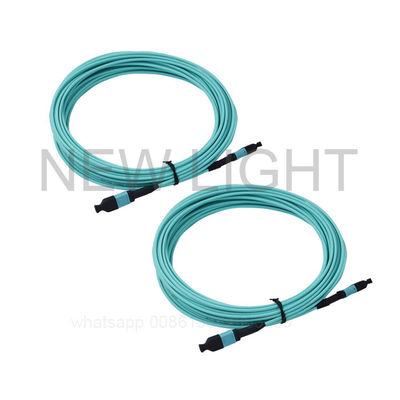

OM4 Multimode 12 Core MPO MTP Cable with LSZH Material for High-Density Connections

Brand Name:	New Light
Model Number:	MPO / MTP - MPO / MTP
MOQ:	1~10000
Price:	6~15
Packaging Details:	OPP bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

CE , ISO , RoHS

Name:

MPO MTP Cable

Material:

LSZH, OFNP Or OFNR

Mode Type:

Core Type:

12 Core

Delivery Time:

2-7 Working Days After Received Deposit

Production Ability:

500 Pcs / Day

Payment Term:

T/T , 30% Deposit In Advance

Connector:

MPO,MTP

Color:

Aqua,orange,yellow,Yellow/ Red/ Aqua

Supply Ability:

500 pcs per day

Highlight:

mpo fiber cable

mpo to mpo cable

Product Description

MTP/MPO Trunk Cables

High-density fiber optic trunk cables typically consisting of OM3/OM4 multimode cables terminated with MTP/MPO connectors on both ends, designed for efficient data center and network infrastructure applications.

Product Overview

MTP/MPO trunk cables are available in single mode and multimode configurations, typically featuring OM3/OM4 multimode cables with MTP/MPO connectors on both ends. These connectors are available in male (with guide pins) and female (without guide pins) versions, supporting fiber counts of 12, 24, 48, or 72 fibers.

Polarity Methods

ANSI/TIA 568-3.D standard defines three connectivity methods for maintaining proper polarity in multi-fiber array systems:

Method A (Straight-through): Most commonly used approach with pin 1 to pin 1 connection using key-up to key-down MPO connectors
Method B (Crossover): Pin 1 to pin 12 connection using key-up to key-up MPO connectors
Method C (Flipped pairs): Pin 1 to pin 2 connection using key-up to key-down MPO connectors (no migration pathway to 40-/100-GbE)

Key Features

US Conec MTP connector, Senko MPO Plus premium connector
OS2, OM3, OM4 fiber grades (OM1 and OM2 available)
0.35dB Elite low loss MTP/MPO connector as well as standard 0.6/0.75dB versions
Factory terminated and tested for reliability
Easy migration from 10GbE to 40GbE or 100GbE
Optional pulling eyes for fiber protection during installation

Technical Specifications

Parameter	Specification
Connector	MPO/MTP (Female or Male)
Operation Temperature	-40°C to +80°C
Storage Temperature	-40°C to +85°C
Insertion Loss	Single-mode: ≤0.75dB (standard), ≤0.35dB (typical) Multi-mode: ≤0.50dB (standard), ≤0.35dB (typical)
Return Loss	Single-mode: ≥60dB; Multi-mode: ≥35dB
MPO End Type	Male: with guide pin; Female: without guide pin
Fiber Count	8, 12 & 24 fiber
Connector Types	MPO-female, MPO-male, FC, SC, ST, MU, LC, E2000
Fiber Mode	Single-mode (G652, G655, G657), Multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber Cable Type	250um ribbon fiber, ribbon cable, bundle fiber optic cable

The three polarity methods (Type A, Type B, and Type C) ensure proper bi-directional allocation for reliable data transmission.

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery and transportation.

Contact: WHATSAPP +8613534063703

Frequently Asked Questions

Manufacturing & Quality

Q: Are you a manufacturer?
A: Yes, we are a manufacturer based in Shenzhen, China.
Q: What's your MOQ?
A: MOQ can be 1 piece, but larger quantities receive more competitive pricing.
Q: How is your quality?
A: Production follows IEC and European standards in near dust-free workshops with imported equipment and 100% testing before delivery.
Q: What's your warranty?
A: 2-year warranty for patch cords covering non-artificial damage.

Pricing & Orders

Q: What's the price?
A: Pricing varies by quantity - contact us with your requirements for competitive quotes.
Q: Can you quote FOB price?
A: EXW or CFR pricing is preferred for most orders due to product size and weight considerations.
Q: How can I order?
A: Send specifications and quantity - we'll provide pricing, lead time, and proforma invoice for payment processing.
Q: What are your payment terms?
A: T/T, Western Union, Paypal, MoneyGram. Large orders: 50% deposit, 50% before delivery.

Customization & Samples

Q: Can you do OEM/ODM?
A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.
Q: Can I have a sample?
A: Free samples available for adaptors, attenuators, patch cords, and pigtails (freight paid by customer).
Q: What's your packing?
A: International export packaging with optional custom logo printing available.
Q: What's your lead time?
A: 2-3 working days for 5,000 patch cords. Regular products are typically in stock.
