Product Details:
|
| Name: | MPO MTP Cable | Material: | LSZH, OFNP Or OFNR |
|---|---|---|---|
| Mode Type: | OM4 | Core Type: | 12 Core |
| Delivery Time: | 2-7 Working Days After Received Deposit | Production Ability: | 500 Pcs / Day |
| Payment Term: | T/T , 30% Deposit In Advance | Connector: | MPO,MTP |
| Color: | Aqua,orange,yellow,Yellow/ Red/ Aqua | ||
| High Light: | mpo fiber cable,mpo to mpo cable |
||

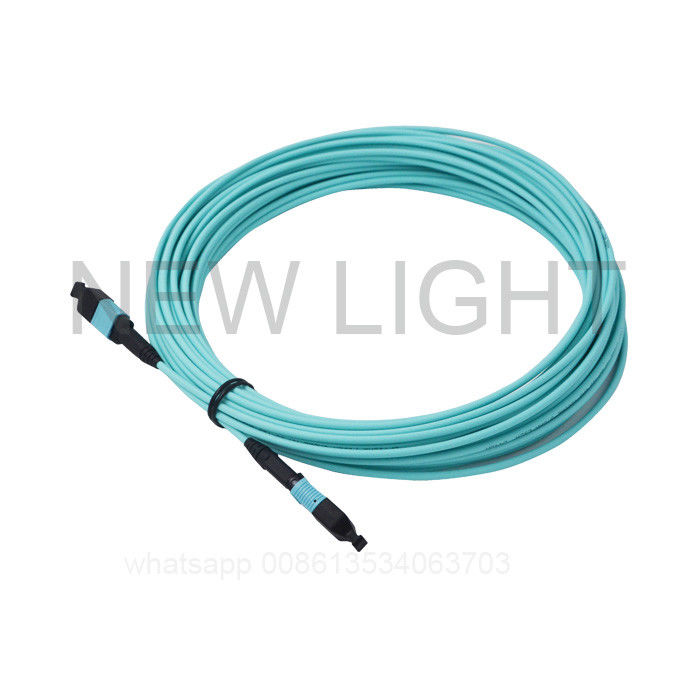

3.2 mm round LSZH jacketed cable MPO / MTP connector interface patch cord
Description
MTP/MPO trunk cables can be single mode, they typically consist of OM3/OM4 multimode cables terminated with MTP/MPO connectors on both ends. The MTP/MPO connectors can be male (with guide pin on the contact interface) and female (without guide pin on the contact interface). MTP/MPO trunk cables are typically available in 12, 24, 48, or 72 fibers. These fibers are connected between two connectors in three different methods that are called method A, method B, and method C. While in method A fibers are straight through, in method B fibers are reversed connected. In method C, the fibers are pairs flipped.
Because a single MTP/MPO connector can bring together 12, 24, 48, or 72 fibers in a single interface, they are designed to provide high-density connections between network equipment. Moreover, They use a simple push/pull latching mechanism for easy insertion and removal. This allows shorter installation time and lowers overall cost.
Features
1 . MPO / MTP connector interface patch cord
2 . Customizable fiber optic cable length
3 . Available in 12 and 24 core cable fiber types
4 . Uses multi-mode 50/125um, OM3 /OM4 Bend-insensitive fiber or single-mode (G652D, G657A1) Bend-insensitive fiber types with type 2mm diameter
5 . Comply with IEC 61754-7, Telcordia GR-1435-CORE
Specifications
1 . Cable type: 3.2 mm round LSZH jacketed cable
2 . Bandwidth fiber: Multimode OM3 XG lazer optimized ≥2000MHzxKm @850nm
3 . Single Mode OS2 ITU-T G.652d 9micron
4 . Connector-Type: High connectivity MPO
5 . Connector Interface: MPO interface requirements: IEC61754-4.20 and IEC61754-7
6 . Connector End face: MPO end face geometry requirements: EN50377-15-1
7 . Polishing Quality: Polished end-face quality: IEC61300-3-35
8 . Insertion Loss: ≤ 0.5dB OM3 / ≤ 0.6dB SM OS2
9 . Return Loss: ≥ 25dB OM3; ≥ 35dB
MPO MTP Cable Technical Parameter
| Item | Technical Parameters | |
| Connector | MPO/MTP(F or M) | MPO/MTP (F or M) |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
|
| Return Loss | SM:≥60dB; MM:≥35dB | |
| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 8,12&24 fiber | |
| Connector type of the other end | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode (G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |
The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.
Pakcing
We will pack it by OPP bag and carton box outside . in order to protect the goods are not damaged when delivery .
FQA
1. Q : Are you manufacturer ?
A: yes, we are manufacturer in Shenzhen,China
2. Q : What's your MOQ ?
A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .
3. Q : What's the price ?
A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .
4. Q: Can you quote FOB price ?
A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .
We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .
EXW price or CFR price will be better . You can contact us for more solution if you need .
5. Q: How is your quality ?
A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .
All the products are 100% test before delivery .
6. Q : Whats your lead time ?
A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .
For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .
7. Q : Whats your warranty ?
A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .
8. Q : Whats your packing ?
A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing
9. Q: Can you do OEM/ODM ?
A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .
10. Q: Can I have a sample ?
A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .
For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.
11. Q: How can I order ?
A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .
2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .
3. When you accept the quotation , we will make Profoma Invoice with our bank account .
4. We will arrange the production for you after we received payment .
5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .
6. We will try our best to meet your requirements for long-term cooperation .
12. Q: What your payment term ?
A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
