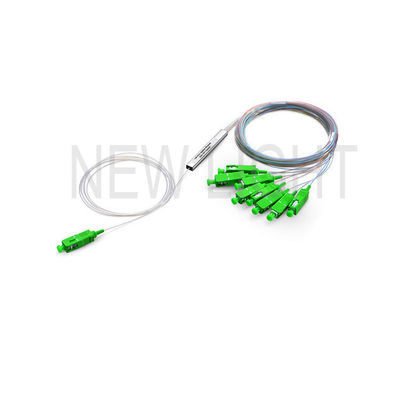

SC APC Connector 1x2 Split Ratio PLC Fiber Optic Splitter with Stainless Steel Tube

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1 In 2 Out Mini Type PLC Splitter

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

FTTH SC APC 1x2 FBT PLC Fiber Optic Splitter

Optical fiber splitter is a sophisticated power management device manufactured using silica optical waveguide technology. These splitters feature compact dimensions, exceptional reliability, broad operating wavelength range, and excellent channel-to-channel uniformity, making them ideal for PON networks where optical signal power splitting is required.

Product Features

Minimal excess loss with low polarization and temperature dependence
Available in various split ratios, housing types, and connector options
Compatible with single, dual, and triple wavelength windows (1310/1490/1550nm)
Low insertion loss and polarization dependent loss
Compact, space-efficient design
Excellent channel-to-channel uniformity
Wide operating wavelength: 1260nm to 1650nm
Broad temperature range: -40°C to 85°C
High reliability and long-term stability
Compliant with Telcordia GR-1209-CORE and GR-1221-CORE standards
RoHS compliant

Applications

FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Local Area Networks (LAN)
Test Equipment

Technical Specifications

Parameters	1*2	1*4	1*8	1*16	1*32	1*64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55
Polarization Dependent Loss (dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~85°C)(dB)	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (LWH)	1008010	1008010	1008010	1208018	14011518	14011518

Product Design

Tube Dimensions: 50x4x4 mm

Our PLC optical splitter MINI modules are available in multiple split configurations and package types, with customization options available to meet specific customer requirements.

Packaging

Products are securely packaged using OPP bags inside carton boxes to ensure protection during transit and delivery.

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What is your minimum order quantity (MOQ)?

A: MOQ can be 1 piece, though we recommend larger quantities for better pricing as single-unit orders incur higher costs.

Q: What are your pricing terms?

A: Pricing varies by quantity. We provide competitive quotes based on your order volume. EXW or CFR pricing is typically preferred for optimal freight solutions.

Q: How is your product quality?

A: We manufacture according to IEC and European standards in near dust-free environments using imported production and quality control equipment. All products undergo 100% testing before shipment.

Q: What is your production lead time?

A: We operate three factories in China with rapid production capabilities. Standard patch cord orders of 5,000 pieces typically ship in 2-3 working days, with many regular products available from stock.

Q: What warranty do you provide?

A: Patch cords include a 2-year warranty covering non-artificial damage. For artificial damage, we offer free repairs with customer responsible for freight costs.

Q: Do you offer OEM/ODM services?

A: Yes, we provide comprehensive OEM/ODM services and can sign confidentiality agreements to protect your designs.

Q: Can I request samples?

A: Free samples are available for adaptors, attenuators, patch cords, and pigtails with freight prepaid by customer. Higher-value products require sample charges refundable with subsequent orders.

Q: What are your payment terms?

A: We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, we can arrange 50% deposit with balance due before shipment.
