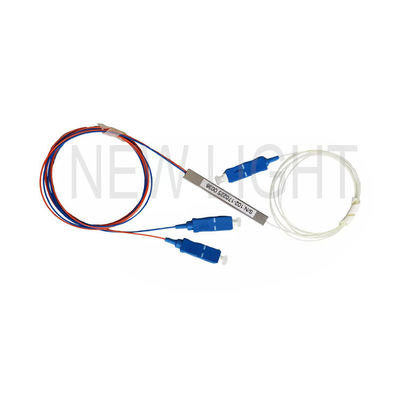

FTTH 1x2 1x4 1x8 1x16 Fiber Optic PLC Splitter with SC UPC/APC Connector and Stainless Steel Tube

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1 In 2 Out Mini Type PLC Splitter

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

FTTH 1x2 1x4 1x8 1x16 Fiber Optic Beam Splitter SC UPC / APC Connector

PLC Splitters are used to distribute optical signals to multiple locations for processing in optical networks. These devices split optical signals into multiple identical signals or combine multiple signals into a single signal. Fabricated using silica optical waveguide technology, PLC Splitters are optical power management devices designed for FTTx in PON, CWDM, DWDM and optical cable TV systems, distributing signals from Central Office (CO) to multiple premise locations.

We provide complete series of 1*N and 2*N splitter products tailored for specific applications. All products are tested to strict industry standards and meet GR-1209-CORE and GR-1221-CORE requirements.

Applications

FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

Features

Low Insertion Loss
Low PDL
Compact Design
Good Channel-to-Channel Uniformity
Wide Operating Wavelength: 1260nm to 1650nm
Wide Operating Temperature: -40°C to 85°C
High Reliability and Stability

Compliance Standards

Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, RoHS

Technical Specifications

Parameters	1*2	1*4	1*8	1*16	1*32	1*64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss (dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~85°C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (LWH)	1008010	1008010	1008010	1208018	14011518	14011518

CAD Drawing

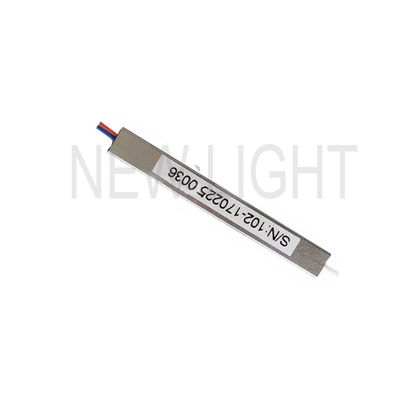

The tube size: 50x4x4 mm

The PLC optical splitter MINI module is available in various split modes and package types, and can be customized according to customer requirements.

Packaging

Products are packaged in OPP bags and carton boxes to ensure protection during delivery.

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing as single unit costs are higher.

Q: What's the price?

A: Pricing depends on quantity. We provide competitive pricing for larger orders upon request.

Q: Can you quote FOB price?

A: We primarily ship via air couriers (DHL, TNT, UPS, FEDEX). For large orders, we can provide sea freight options. EXW or CFR pricing is preferred.

Q: How is your quality?

A: We produce according to IEC and European standards in near dust-free workshops using imported equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock.

Q: What's your warranty?

A: Patch cords carry a 2-year warranty for non-artificial damage. Artificial damage repairs are free, but freight is customer's responsibility.

Q: What's your packing?

A: We use international export packaging and can print customer logos upon request.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails (freight paid by customer). Higher-value products require sample charges.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time. Payment required before production begins.

Q: What are your payment terms?

A: T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
