Fiber Optic Splitter

Single Mode 1x2 1x4 1x8 1x16 PLC Splitter with Stainless Steel Tube for Fiber Optic Networks

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Single Mode 1x2 1x4 1x8 1x16 PLC Splitter with Stainless Steel Tube for Fiber Optic Networks

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1 In 2 Out Mini Type PLC Splitter

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

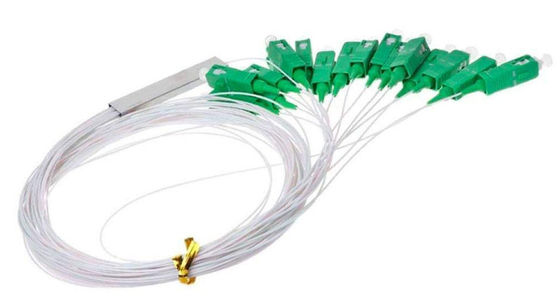

PLC Fiber Optic Splitters

Single Mode PLC (Planar Lightwave Circuit) Splitters with even split ratios from one input fiber to multiple output fibers. Available configurations: 1x2, 1x4, 1x8, 1x16, and 1x32.

Product Overview

PLC splitters utilize micro-optical technology with silica glass lightwave circuits to distribute optical signals. Available in various packaging options including bare splitters, ABS modules, LGX boxes, tray types, and rack mount configurations.

Fiber Options

Available with 900µm loose tube singlemode fiber, either unterminated for splicing or connectorized with LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, or ST/UPC connectors.

Applications

FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

Key Features

Low Insertion Loss
Low Polarization Dependent Loss (PDL)
Compact Design
Excellent Channel-to-Channel Uniformity
Wide Operating Wavelength: 1260nm to 1650nm
Wide Operating Temperature: -40°C to 85°C
High Reliability and Stability

Compliance Standards

Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, RoHS

Technical Specifications

Parameters	1*2	1*4	1*8	1*16	1*32	1*64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (LWH)	1008010	1008010	1008010	1208018	14011518	14011518

Product Design

Tube size: 50x4x4 mm

PLC optical splitter MINI modules available in multiple split configurations and package types, with custom options available.

Packaging

Products are securely packaged in OPP bags and carton boxes to ensure protection during delivery.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ is 1 piece, but larger quantities receive more competitive pricing.

What's the price?

Pricing varies by quantity. Contact us with your requirements for a detailed quote.

Can you quote FOB price?

We typically ship via air freight (DHL, TNT, UPS, FedEx). EXW or CFR pricing is preferred for most orders.

How is your quality?

We follow IEC and European standards with imported production equipment. All products undergo 100% testing before delivery.

What's your lead time?

Standard products are typically in stock. Custom orders: 2-3 working days for 5,000 pieces of patch cords.

What's your warranty?

2-year warranty for patch cords covering non-artificial damage.

What's your packing?

International export packaging with custom logo printing available.

Can you do OEM/ODM?

Yes, we support OEM/ODM and can sign confidentiality agreements.

Can I have a sample?

Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight).

How can I order?

Contact us with product specifications and quantity. We'll provide pricing and lead time, then proceed with proforma invoice and production upon payment.

What are your payment terms?

T/T, Western Union, PayPal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
