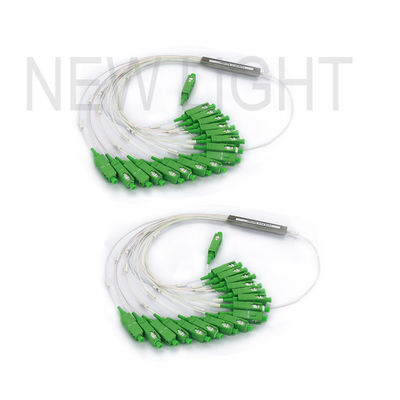

1x32 PLC Splitter with SC APC Connector and Low Insertion Loss for Fiber Optic Networks

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1 In 2 Out Mini Type PLC Splitter

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

1x8 LGX PLC Fiber Optic Splitter 1x32 With SC APC Connector

Planar waveguide light optical distributor (PLC Splitter) is a planar waveguide integrated optical device that preserves and distributes optical power across a wide wavelength range of 1260nm to 1650nm. This wavelength range covers the 1310nm, 1490nm, and 1550nm wavelengths used in EPON technology, making it particularly suitable for EPON Ethernet passive optical network access technology and FTTP fiber network systems in broadband passive optical distributors (POS).

PLC (Planar Lightwave Circuit) splitters use optical chips to split input signals into multiple outputs. These micro-optical devices feature silica glass lightwave circuits with ribbon-form mounting on carriers and fibers. The basic structure consists of substrate, waveguide, and lid layers, available with different polished finishes for various applications.

Applications

FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

Features

Low Polarization Dependent Loss (PDL)
Compact Design
Excellent Channel-to-Channel Uniformity
Wide Operating Wavelength: 1260nm to 1650nm
Wide Operating Temperature: -40°C to 85°C
High Reliability and Stability

Compliance Standards

Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS Compliant

Technical Specifications

Parameters	1*2	1*4	1*8	1*16	1*32	1*64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss (dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~85°C) (dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (LWH)	1008010	1008010	1008010	1208018	14011518	14011518

CAD Drawing

Tube size: 50x4x4 mm

The PLC optical splitter MINI module is available in various split modes and package types, and can be customized according to customer requirements.

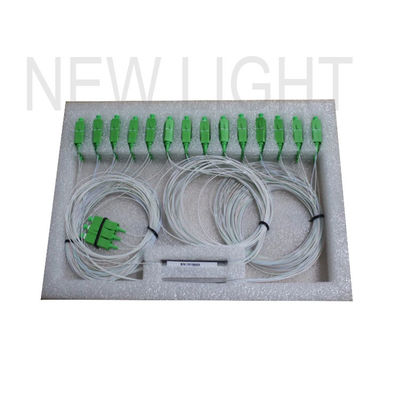

Packaging

Our products feature exquisite design and packaging to ensure they arrive in perfect condition, using international export-standard materials.

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we recommend larger quantities for better pricing as single-unit costs are higher.

Q: What's the price?

A: Pricing depends on quantity. We provide competitive pricing for larger orders upon request.

Q: Can you quote FOB price?

A: We primarily ship via air couriers (DHL, TNT, UPS, FEDEX). For large sea freight shipments, we can provide CFR pricing. EXW or CFR terms are preferred.

Q: How is your quality?

A: We produce according to IEC and European standards in near dust-free workshops using imported production and quality control equipment. All products undergo 100% testing before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5,000 pieces. Regular products are typically in stock, and we accommodate urgent orders.

Q: What's your warranty?

A: Patch cords carry a 2-year warranty for non-artificial damage. For artificial damage, we provide free repairs with customer covering freight costs.

Q: What's your packing?

A: We use international export packaging and can print customer logos upon request.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Q: Can I have a sample?

A: Free samples available for adaptors, attenuators, patch cords, and pigtails (customer pays freight). For high-value products, sample charges apply but are refundable with orders.

Q: How can I order?

A: Contact us with product specifications and quantity. We'll provide pricing and lead time. Payment required before production, with tracking provided upon shipment.

Q: What are your payment terms?

A: T/T, Western Union, Paypal, MoneyGram. For large orders: 50% deposit, 50% balance before delivery.
