1x8 Fiber Optic PLC Splitter with Low Insertion Loss High Return Loss and Temperature Stability for FTTH Networks

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Application:

FTTH FTTB FTTX Network

Material:

ABS+PC

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

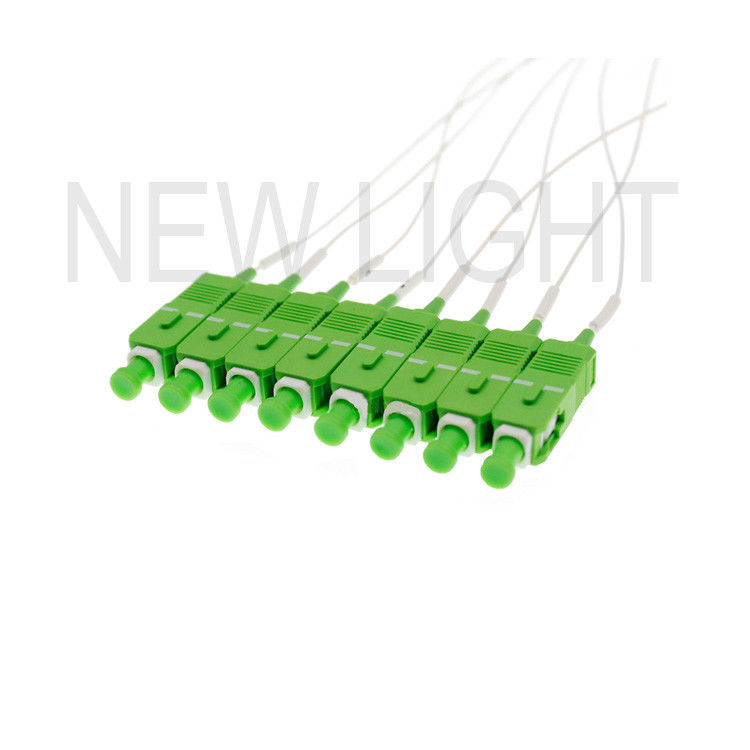

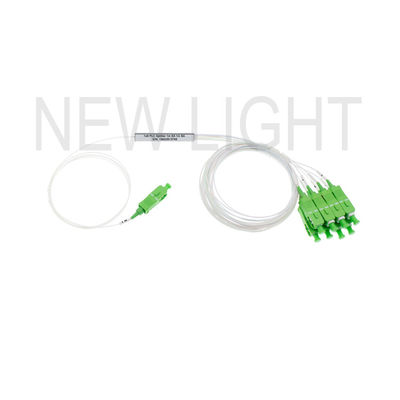

1*8 Fiber Optic with Connector 1x8 Steel Tube SC APC GPON PLC Splitter 1:8

Key Features

Low insertion loss, high return loss
Excellent temperature stability
Good repeatability and exchangeability
Excellent mechanical endurance
Strict curing time and temperature control
Strict testing standards and methods for quality
Environment protection (ROHS Compliance)
Customizable fiber optical patch cords (Connector/Length/Package)
100% new raw materials with quality control for maximum lifespan

Applications

Special cases requiring compact installation
FTTX/FTTH Systems
CATV Links
Optical Signal Distribution
Passive Optical Networks (PON)
DWDM/CWDM systems
Test equipment
LAN/MAN/WAN networks

Fiber Optic PLC Splitter Overview

PLC Splitters are branching devices used to distribute optical signals to multiple locations. These planar lightwave circuit splitters are fabricated using silica optical waveguide technology, designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV systems. Our complete series of 1*N and 2*N splitter products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Technical Specifications

Parameters	1*2	1*4	1*8	1*16	1*32	1*64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Module Dimension (mm) (LWH)	1008010	1008010	1008010	1208018	14011518	14011518

Our PLC optical splitter MINI module is available in various split modes and package types, with customization options available.

Packaging

Our products feature exquisite packaging design to ensure they arrive in perfect condition.

Frequently Asked Questions

1. Are you a manufacturer?

Yes, we are a manufacturer based in Shenzhen, China.

2. What's your MOQ?

Minimum order quantity can be 1 piece, but we recommend larger quantities for better pricing.

3. What's the price?

Pricing depends on quantity. Please contact us with your requirements for our best offer.

4. Can you quote FOB price?

We typically ship via air courier (DHL, TNT, UPS, FedEx). For large orders, we can provide sea freight options. EXW or CFR pricing is preferred.

5. How is your quality?

We produce according to IEC standards with imported equipment. All products undergo 100% testing before delivery.

6. What's your lead time?

We maintain three factories in China with quick turnaround times. Standard products are often in stock, with production lead times as short as 2-3 working days for 5000 pieces.

7. What's your warranty?

Patch cords come with a 2-year warranty against non-artificial damage.

8. What's your packing?

We use international export packaging and can customize with your logo.

9. Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

10. Can I have a sample?

Free samples are available for some products (customer pays shipping). For high-value items, sample costs are refundable with first order.

11. How can I order?

Contact us with your specifications and quantity. We'll provide pricing and lead time. After confirmation, we'll issue a proforma invoice and begin production upon payment.

12. What are your payment terms?

We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, we can arrange 50% deposit with 50% balance before delivery.
