2 Port IP65 Wall Mountable FTTH Termination Box for Indoor Fiber Optic Terminal Applications

Brand Name:	New Light
Model Number:	terminal box
MOQ:	10
Price:	2~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Color:

White

Material:

ABS,PC

Name:

Splitter Box

Avalaible

Type:

4/8/16/32/64ports,FC/SC/LC,wall Mounted,Waterproof Outdoor,Indoor Wall Mountable

Connector Type:

SC/APC Or SC/UPC,SC/APC/PC

Installation:

Pole-mounted Wall-mounted,drop Cables / Pigtails/ Indoor Patchcord

Product Name:

Ftth Terminal Box,12 Port Fiber Optic Patch Panel,FTTH 16 Cores Access Terminal Box Black/Cajas Nap Set Completo,Horizontal Fiber Optic Splice Plastic Enclosure,fiberhome An5506-01-a Gpon Onu

Application:

FTTH FTTB FTTX Network,Telecommunication,WANS,CATV

Supply Ability:

1000 pcs per month

Highlight:

wall mount fiber termination box

fiber optic termination box

Product Description

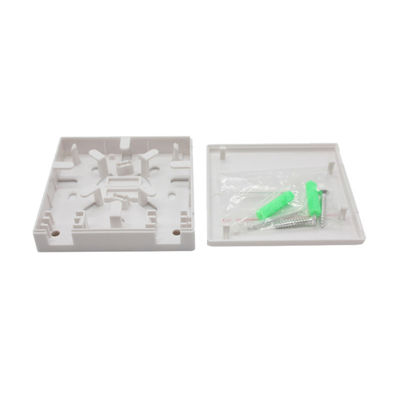

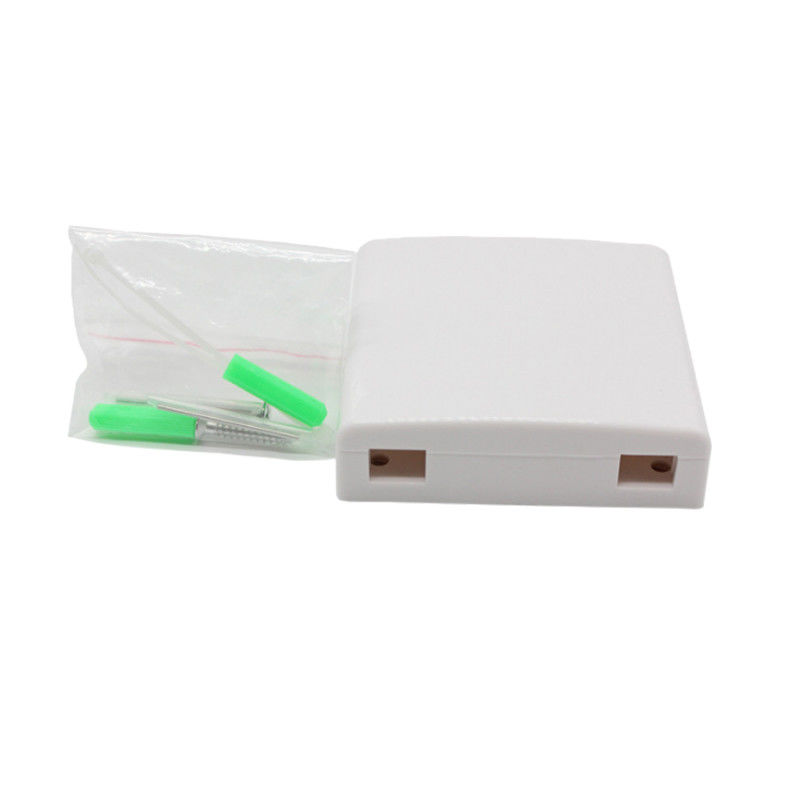

2 Port Optical FTTH Termination Box With Shield / Indoor Mini Terminal Box

This 2-port optical FTTH box with shield is an indoor mini terminal box designed for efficient fiber optic cable termination, splicing, and storage in various network applications.

Applications

Fiber to the home (FTTH)
Fiber to the building (FTTB)
Local area networks
Wide area networks

Features & Benefits

Supports termination, splicing and storage for fiber optic cable systems
Compact structure with perfect fiber management
Engineered fiber routing protects bend radius to ensure signal integrity
Applicable for desk-mount or wall-mounted installation
Compatible with flush-mount outlet
Working Temperature: -25℃ to +60℃
Atmospheric Pressure: 70kPa to 106kPa
Relative Humidity: ≤ 85% at +30℃
Protection Degree: IP65
Connector Repeatability: >1000 cycles
Connector Specification: IL ≤0.2dB; RL ≥50dB

Product Description

The FTB86 customer terminal box socket panel is designed for end termination in residential buildings, villas, and business applications. It can fix and splice with pigtails, accommodating up to 2 SC adapters. This unit supports various optical connection styles and enables effective fiber management with quick installation in office, house, or communication room environments.

Advantages

Economic design
Ability to allow cables to enter from both sides of the unit
Removable cover for easy access
Compact, low profile, wall mounted unit suitable for small and large business premises

Technical Specifications

Number of input cable ports: 1

Maximum input cable diameter: 5mm

Maximum Capacity: 2 fibres

Maximum number of customer feeds: 2 patch cords

Dimensions: 86 x 86 x 23mm

Material: ABS or PC

Compatible with FTTH drop cable or indoor cable

Specification	Value
Adapter Capacity	02 Adapters
Splice Trays	/
Splice Capacity	02 Splices
Ports	1 Input Port / 4 Output Ports
Material	PC/ABS
Height	86 mm
Width	86 mm
Depth	19mm
Color	White
Port Capacity	2 ports, each port for 1 cable with max 10mm

Applications

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV

Model Specifications

Model	Capacity	Type	Adapter Types	Pigtail Types
FFS	2	B	SC: SC/UPC, AS: SC/APC, LC: LC/UPC, AL: LC/APC	SC: SC/UPC, AS: SC/APC, LC: LC/UPC, AL: LC/APC

Frequently Asked Questions

Are you a trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally it is 7-15 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

How about your after-sales service?

We offer you 24 hours service phone, 9 hours with mail.

What is your terms of payment?

Payment ≤ 1000USD, 100% in advance. Payment ≥ 1000USD, 30% T/T in advance, balance before shipment.

Any questions please feel free to contact with us.

Email: sales03@newlightfiber.com

WHATSAPP: 008613534063703

Hot Tags: 4 port pc+abs mini fiber optic termination box plastic box, China, factory, manufacturers, suppliers, wholesale, cheap, made in China
