|Type:||4/8/16/32/64ports,FC/SC/LC,wall Mounted,Waterproof Outdoor,Indoor Wall Mountable||Connector Type:||SC/APC Or SC/UPC,SC/APC/PC|
|Installation:||Pole-mounted Wall-mounted,drop Cables / Pigtails/ Indoor Patchcord||Ip:||65|
|Product Name:||Ftth Terminal Box,12 Port Fiber Optic Patch Panel,FTTH 16 Cores Access Terminal Box Black/Cajas Nap Set Completo,Horizontal Fiber Optic Splice Plastic Enclosure,fiberhome An5506-01-a Gpon Onu||Application:||FTTH FTTB FTTX Network,Telecommunication,WANS,CATV|
wall mount fiber termination box,
fiber optic termination box
2 port optical FTTH box with shield / indoor Mini terminal box
1.Fiber to the home(FTTH)
2.Fiber to the building(TFFB)
3.Local area networks
4.Wide area networks
Features & Benefits
1.Support termination, splicing and storage for fiber optic cable systems.
2.Compact structure and perfect fiber management.
3.Engineered fiber routing protect bend radius through the unit to ensure signal integrity.
4.Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.
5.Working Temperature: -25℃~+60℃; Atmospheric
7.Relative Humidity: ≤ 85%(+30℃);
8.Protection Degree: IP65;
9.Connector Repeatability: >1000;
10. Connector Specification: IL: ≤0.2dB; RL: ≥50dB;

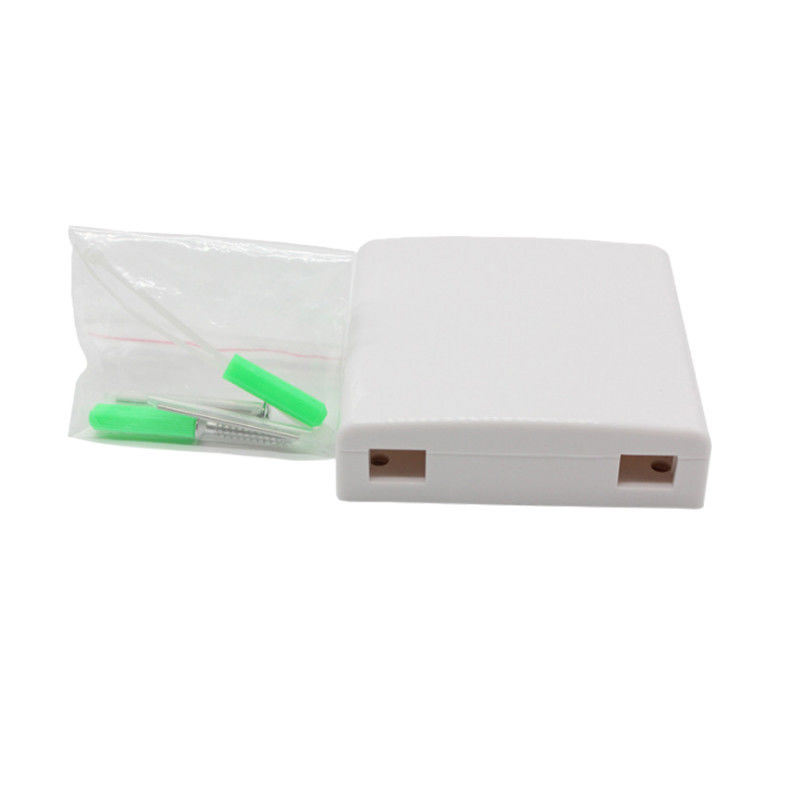

The FTB86 customer terminal box socket panel are used in the end termination of residential buildings
and villas or business applications;It can fix and splice with pigtails,max hold 2 pcs SC adapters, it may
adaptvariety of optical connection styles and the optical fiber can be managed effectively and quickly
installed within an office,house or communication room environment.
Ability to allow cables to enter from both sides of the unit
Removable cover for easy access
compact,low profile, wall mounted unit used for small and large business premise
Number of input cable ports:1
Maximum input cable diameter(mm):5mm
Maximum Capacity: 2 fibres
Maximum no. of customer feeds: 2 patch cords
Dimension: 86 x 86 x 23mm
Material:ABS or PC
FTTH drop cable or indoor cable can be used.
|Adapter Capacity||02 Adapters|
|Splice Capacity||02 Splices|
|Ports||1 Input Port / 4 Output Ports|
|Port Capacity||2 ports, each port for 1 cable with max 10mm|
Telecommunications subscriber loop
Fiber to the home (FTTH)
|Model||Capacity||Type||XX: Adapter||XX: Pigtail|
|FFS||2||B||SC: SC/UPC||SC: SC/UPC|
|AS: SC/APC||AS: SC/APC|
|LC: LC/UPC||LC: LC/UPC|
|AL: LC/APC||AL: LC/APC|
