Product Details:
|
| Color: | White | Material: | ABS,PC |
|---|---|---|---|
| Name: | Splitter Box | OEM: | Avalaible |
| Type: | 4/8/16/32/64ports,FC/SC/LC,wall Mounted,Waterproof Outdoor,Indoor Wall Mountable | Connector Type: | SC/APC Or SC/UPC,SC/APC/PC |
| Installation: | Pole-mounted Wall-mounted,drop Cables / Pigtails/ Indoor Patchcord | Ip: | 65 |
| Product Name: | Ftth Terminal Box,12 Port Fiber Optic Patch Panel,FTTH 16 Cores Access Terminal Box Black/Cajas Nap Set Completo,Horizontal Fiber Optic Splice Plastic Enclosure,fiberhome An5506-01-a Gpon Onu | Application: | FTTH FTTB FTTX Network,Telecommunication,WANS,CATV |
| High Light: | wall mount fiber termination box,fiber optic termination box |
||

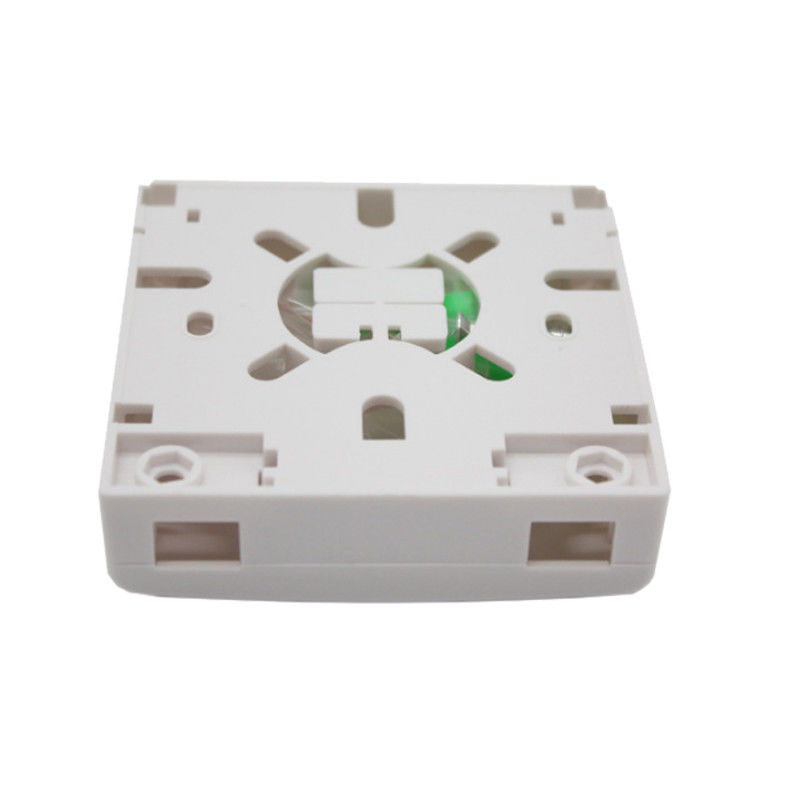

FTTH fiber optic socket Mini optical terminal termination box 2 port SC faceplate
Applications
Wall mounting installation
Suitable for 2*3mm FTTH Drop Cable
Features:
Standard 86 type panel, small size and simple operation
Large arc-shaped winding column to avoid the potential damage risks
UL94 V1 flame retardance complied (UL94 V0 is available upon request)
Multi-function optical fiber socket for a variety of cables and multi-mode access
Flexible termination methods: splicing + pigtail, mechanical splice + pigtail, fast connector on site.
Description
The FTB86 customer terminal box socket panel are used in the end termination of residential buildings
and villas or business applications;It can fix and splice with pigtails,max hold 2 pcs SC adapters, it may
adaptvariety of optical connection styles and the optical fiber can be managed effectively and quickly
installed within an office,house or communication room environment.
Advantage:
Economic design
Ability to allow cables to enter from both sides of the unit
Removable cover for easy access
compact,low profile, wall mounted unit used for small and large business premise
Technical Data:
Number of input cable ports:1
Maximum input cable diameter(mm):5mm
Maximum Capacity: 2 fibres
Maximum no. of customer feeds: 2 patch cords
Dimension: 86 x 86 x 23mm
Material:ABS or PC
FTTH drop cable or indoor cable can be used.
| Adapter Capacity | 02 Adapters |
| Splice Trays | / |
| Splice Capacity | 02 Splices |
| Ports | 1 Input Port / 4 Output Ports |
| Material | PC/ABS |
| Height | 86 mm |
| Width | 86 mm |
| Depth | 19mm |
| Color | White |
| Port Capacity | 2 ports, each port for 1 cable with max 10mm |
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Parameters:
| Model | Capacity | Type | XX: Adapter | XX: Pigtail |
| FFS | 2 | B | SC: SC/UPC | SC: SC/UPC |
| AS: SC/APC | AS: SC/APC | |||
| LC: LC/UPC | LC: LC/UPC | |||
| AL: LC/APC | AL: LC/APC |
FAQ
Q:Are you trading company or manufacturer ?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 7-15 days if the goods are in stock.Or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples ? Is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:How about your after-sales service?
A:We offer you 24 hours service phone, 9 hours with mail.
Q:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,balance before shippment.
