FTTH Termination Box with 2 Port SC Faceplate - Wall Mountable Mini Optical Terminal Box for Waterproof Outdoor Use

Brand Name:	New Light
Model Number:	terminal box
MOQ:	10
Price:	2~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Color:

White

Material:

ABS,PC

Name:

Splitter Box

Avalaible

Type:

4/8/16/32/64ports,FC/SC/LC,wall Mounted,Waterproof Outdoor,Indoor Wall Mountable

Connector Type:

SC/APC Or SC/UPC,SC/APC/PC

Installation:

Pole-mounted Wall-mounted,drop Cables / Pigtails/ Indoor Patchcord

Product Name:

Ftth Terminal Box,12 Port Fiber Optic Patch Panel,FTTH 16 Cores Access Terminal Box Black/Cajas Nap Set Completo,Horizontal Fiber Optic Splice Plastic Enclosure,fiberhome An5506-01-a Gpon Onu

Application:

FTTH FTTB FTTX Network,Telecommunication,WANS,CATV

Supply Ability:

1000 pcs per month

Highlight:

wall mount fiber termination box

fiber optic termination box

Product Description

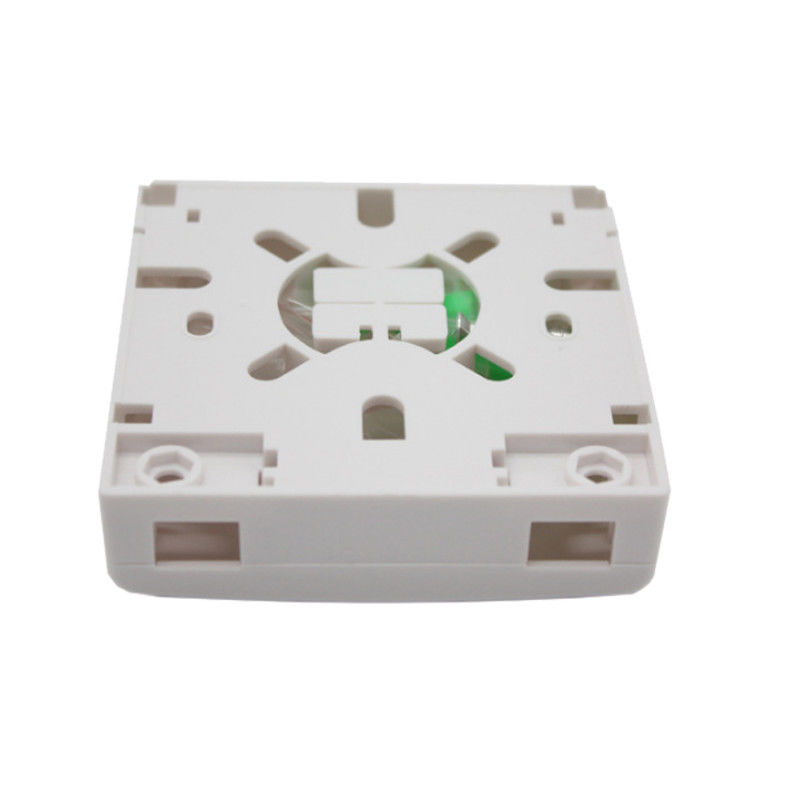

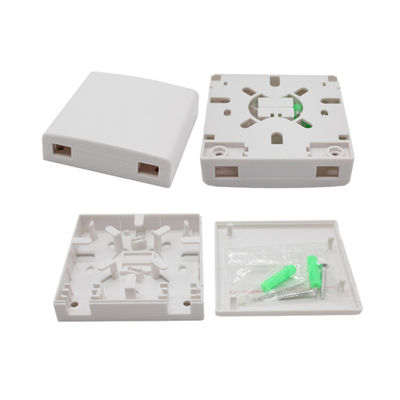

FTTH Fiber Optic Socket Mini Optical Terminal Termination Box 2 Port SC Faceplate

This FTTH fiber optic socket mini optical terminal termination box with 2-port SC faceplate is designed for efficient fiber optic network termination in residential and commercial applications.

Applications

Wall mounting installation
Suitable for 2*3mm FTTH Drop Cable

Key Features

Standard 86 type panel with compact size and simple operation
Large arc-shaped winding column to prevent cable damage
UL94 V1 flame retardance (UL94 V0 available upon request)
Multi-function optical fiber socket for various cables and multi-mode access
Flexible termination methods: splicing + pigtail, mechanical splice + pigtail, fast connector on site

Product Description

The FTB86 customer terminal box socket panel is designed for end termination in residential buildings, villas, and business applications. It can fix and splice with pigtails, accommodating up to 2 SC adapters. This versatile solution supports various optical connection styles and enables efficient fiber management with quick installation in office, residential, or communication room environments.

Advantages

Economical design
Cable entry from both sides of the unit
Removable cover for easy access
Compact, low-profile wall-mounted unit suitable for small and large business premises

Technical Specifications

Number of input cable ports	1
Maximum input cable diameter	5mm
Maximum Capacity	2 fibres
Maximum customer feeds	2 patch cords
Dimensions	86 x 86 x 23mm
Material	ABS or PC
Compatible cables	FTTH drop cable or indoor cable

Detailed Specifications

Specification	Value
Adapter Capacity	02 Adapters
Splice Trays	/
Splice Capacity	02 Splices
Ports	1 Input Port / 4 Output Ports
Material	PC/ABS
Height	86 mm
Width	86 mm
Depth	19mm
Color	White
Port Capacity	2 ports, each port for 1 cable with max 10mm

Applications

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV

Model Parameters

Model	Capacity	Type	Adapter Options	Pigtail Options
FFS	2	B	SC: SC/UPC, AS: SC/APC, LC: LC/UPC, AL: LC/APC	SC: SC/UPC, AS: SC/APC, LC: LC/UPC, AL: LC/APC

Frequently Asked Questions

Are you a trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally 7-15 days if goods are in stock, or 15-30 days if not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we offer samples free of charge but the customer pays the freight cost.

How about your after-sales service?

We offer 24-hour service phone and 9-hour email support.

What are your payment terms?

Payment ≤ 1000USD: 100% in advance. Payment ≥ 1000USD: 30% T/T in advance, balance before shipment.
