4 Port PC+ABS Mini Fiber Optic Termination Box Wall Mountable FTTH Distribution Box

Brand Name:	New Light
Model Number:	terminal box
MOQ:	10
Price:	2~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Color:

White

Material:

ABS,PC

Name:

Splitter Box

Avalaible

Type:

4/8/16/32/64ports,FC/SC/LC,wall Mounted,Waterproof Outdoor,Indoor Wall Mountable

Connector Type:

SC/APC Or SC/UPC,SC/APC/PC

Installation:

Pole-mounted Wall-mounted,drop Cables / Pigtails/ Indoor Patchcord

Product Name:

Ftth Terminal Box,12 Port Fiber Optic Patch Panel,FTTH 16 Cores Access Terminal Box Black/Cajas Nap Set Completo,Horizontal Fiber Optic Splice Plastic Enclosure,fiberhome An5506-01-a Gpon Onu

Application:

FTTH FTTB FTTX Network,Telecommunication,WANS,CATV

Supply Ability:

1000 pcs per month

Highlight:

wall mount fiber termination box

fiber optic termination box

Product Description

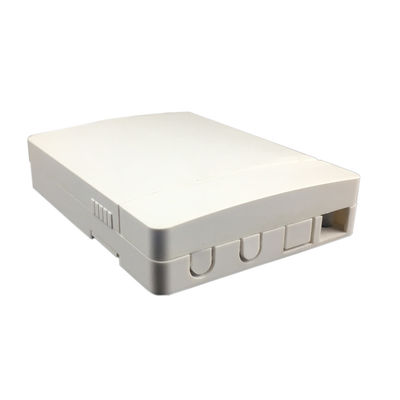

4 Port PC+ABS Mini Fibre Optic Termination Box

This compact plastic fiber termination box features a low-profile wall-mount design perfect for FTTx applications, providing reliable interconnection between central office and dwelling units.

Product Overview

This indoor wall mount 2-fiber distribution box includes a multi-layer design that allows installers to access only the components necessary for initial installation or subscriber turn-up. Preloaded with 2 simplex SC adapters with dust covers and 1 SC 2-meter pigtail.

Applications

Wall mounting installation
Suitable for 2*3mm FTTH Drop Cable
FTTH, FTTB, FTTC networks
Telecommunication Networks
CATV systems
Local Area Networks

Key Features

Standard 86 type panel with compact dimensions

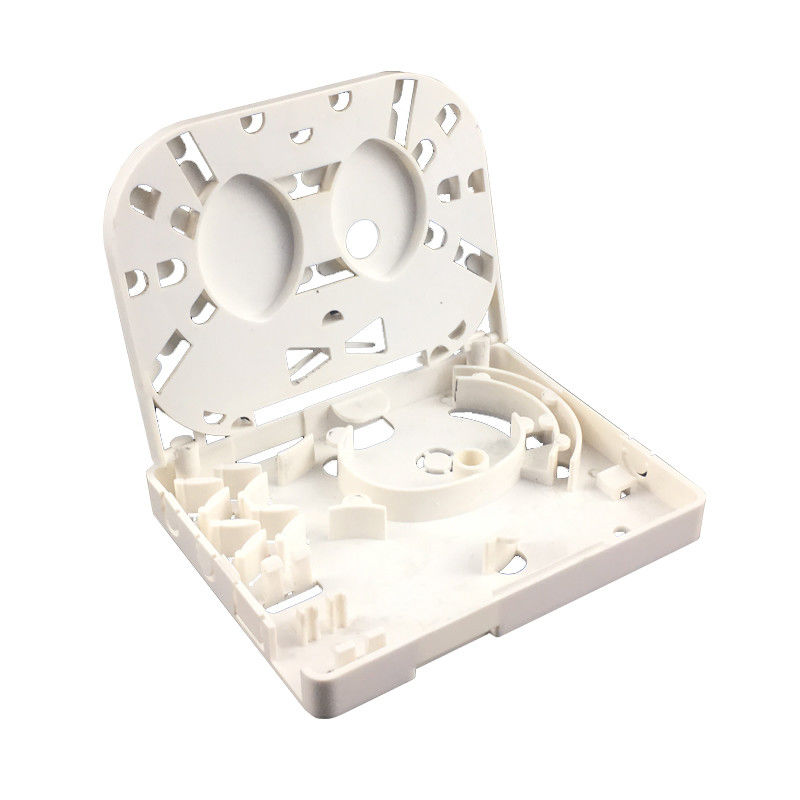

Large arc-shaped winding column prevents cable damage
UL94 V1 flame retardance (V0 available upon request)
Multi-function optical fiber socket for various cable types
Flexible termination methods: splicing + pigtail, mechanical splice + pigtail, fast connector on site

Product Advantages

Cost-effective economic design
Dual-side cable entry capability
Removable cover for easy access
Compact, low-profile wall-mounted unit
Suitable for small and large business premises

Technical Specifications

Input Cable Ports	1
Maximum Input Cable Diameter	5mm
Maximum Fiber Capacity	2 fibers
Customer Feed Capacity	2 patch cords
Dimensions	86 x 86 x 23mm
Material	ABS or PC
Compatible Cables	FTTH drop cable or indoor cable

Detailed Specifications

Specification	Value
Adapter Capacity	02 Adapters
Splice Trays	/
Splice Capacity	02 Splices
Ports	1 Input Port / 4 Output Ports
Material	PC/ABS
Height	86 mm
Width	86 mm
Depth	19mm
Color	White
Port Capacity	2 ports, each port for 1 cable with max 10mm

Model Configuration

Model	Capacity	Type	Adapter Options	Pigtail Options
FFS	2	B	SC: SC/UPC, AS: SC/APC, LC: LC/UPC, AL: LC/APC	SC: SC/UPC, AS: SC/APC, LC: LC/UPC, AL: LC/APC

Frequently Asked Questions

Are you a trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally 7-15 days if goods are in stock, or 15-30 days if not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we offer samples free of charge but freight costs are not included.

How about your after-sales service?

We offer 24-hour service phone support and 9-hour email support.

What are your payment terms?

Payment ≤ $1000 USD: 100% in advance. Payment ≥ $1000 USD: 30% T/T in advance, balance before shipment.
