ABS+PC Material Wall Mountable Waterproof IP65 Fiber Optic Termination Box for FTTH Networks

Brand Name:	New Light
Model Number:	terminal box
MOQ:	10
Price:	2~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Color:

White

Material:

ABS,PC

Name:

Splitter Box

Avalaible

Type:

4/8/16/32/64ports,FC/SC/LC,wall Mounted,Waterproof Outdoor,Indoor Wall Mountable

Connector Type:

SC/APC Or SC/UPC,SC/APC/PC

Installation:

Pole-mounted Wall-mounted,drop Cables / Pigtails/ Indoor Patchcord

Product Name:

Ftth Terminal Box,12 Port Fiber Optic Patch Panel,FTTH 16 Cores Access Terminal Box Black/Cajas Nap Set Completo,Horizontal Fiber Optic Splice Plastic Enclosure,fiberhome An5506-01-a Gpon Onu

Application:

FTTH FTTB FTTX Network,Telecommunication,WANS,CATV

Supply Ability:

1000 pcs per month

Highlight:

wall mount fiber termination box

fiber optic termination box

Product Description

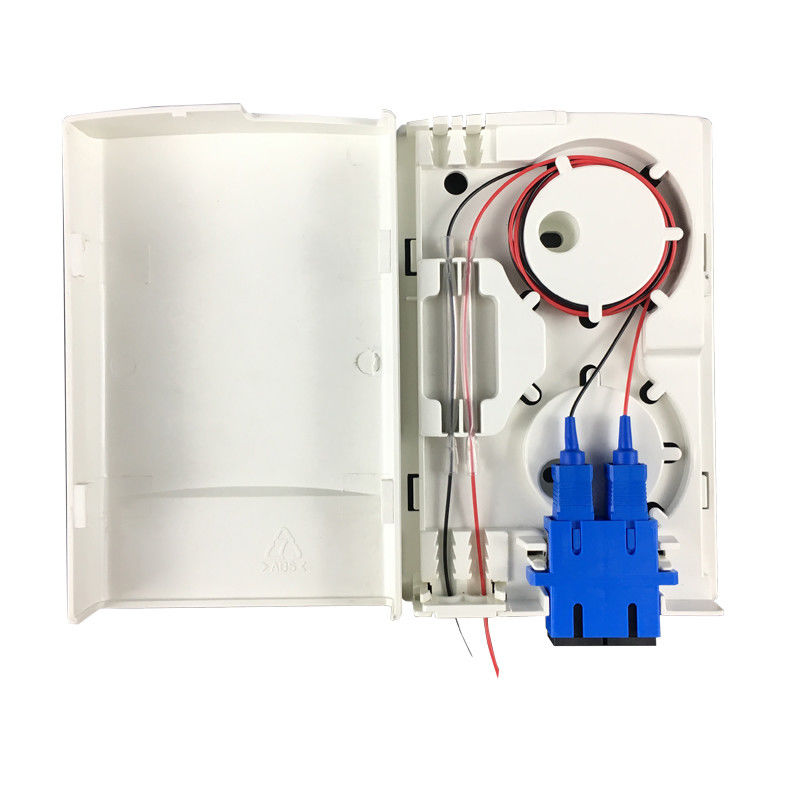

Fiber Optic Wall Socket Panel End User Box

Plastic wall mount fiber termination box designed for end-user installations with professional-grade performance.

Product Overview

High-quality fiber optic termination box made from brand new ABS+PC material, featuring anti-collision, flame retardant, and impact-resistant properties. All materials comply with ROHS standards.

Key Features

Three-direction fiber cable inlets for versatile installation scenarios
Compact white design with large storage and management area
Supports maximum of 2 SC or LC duplex couplers
Standard 86-type panel with simple operation
Large arc-shaped winding column to prevent cable damage
UL94 V1 flame retardance (V0 available upon request)
Multi-function optical fiber socket for various cables and multi-mode access
Flexible termination methods: splicing + pigtail, mechanical splice + pigtail, fast connector on site

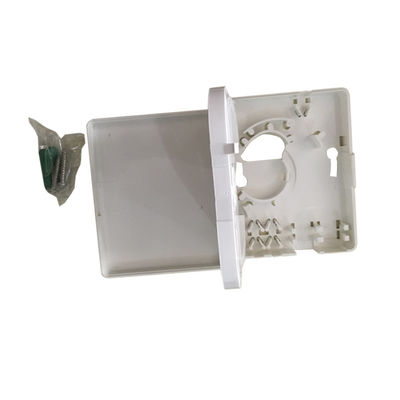

Wall mount screws included

Technical Specifications

Dimensions: 86 * 86 * 23mm
Input Cable Ports: 1
Maximum Input Cable Diameter: 5mm
Maximum Capacity: 2 fibers
Customer Feeds: 2 patch cords
Material: ABS or PC
Compatible Cables: FTTH drop cable or indoor cable

Detailed Specifications

Specification	Details
Adapter Capacity	02 Adapters
Splice Trays	/
Splice Capacity	02 Splices
Ports	1 Input Port / 4 Output Ports
Material	PC/ABS
Height	86 mm
Width	86 mm
Depth	19mm
Color	White
Port Capacity	2 ports, each port for 1 cable with max 10mm

Model Configuration

Model	Capacity	Type	Adapter Options	Pigtail Options
FFS	2	B	SC: SC/UPC, AS: SC/APC, LC: LC/UPC, AL: LC/APC	SC: SC/UPC, AS: SC/APC, LC: LC/UPC, AL: LC/APC

Applications

Wall mounting installation
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN networks
CATV systems
Suitable for 2*3mm FTTH Drop Cable

Compliance Standards

TIA/EIA 568.C - Optical Fiber Cabling Components Standard
IEC61754 - Fiber optic connector interfaces Standard
ANSI/TIA/EIA-606-A - Administration Standard for Telecommunications Infrastructure
GR-449-CORE - Generic Requirements and Design Consideration for Fiber Distributing Frames
RoHS - Directive on Restriction of Hazardous Substances

Frequently Asked Questions

Are you a trading company or manufacturer?

We are the factory.

How long is your delivery time?

Generally 7-15 days if goods are in stock, or 15-30 days if not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we offer samples free of charge but the customer pays for freight costs.

How about your after-sales service?

We offer 24-hour service phone support and 9-hour email support.

What are your payment terms?

Payment ≤ $1000 USD: 100% in advance. Payment ≥ $1000 USD: 30% T/T in advance, balance before shipment.
