IP65 Waterproof Wall and Pole Mountable FTTH Termination Box with 4/8/16/32/64 Ports for Fiber Optical Terminal Distribution

Brand Name:	New Light
Model Number:	terminal box
MOQ:	10
Price:	2~100
Packaging Details:	1 piece per pack
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Color:

White

Material:

ABS,PC

Name:

Splitter Box

Avalaible

Type:

4/8/16/32/64ports,FC/SC/LC,wall Mounted,Waterproof Outdoor,Indoor Wall Mountable

Connector Type:

SC/APC Or SC/UPC,SC/APC/PC

Installation:

Pole-mounted Wall-mounted,drop Cables / Pigtails/ Indoor Patchcord

Product Name:

Ftth Terminal Box,12 Port Fiber Optic Patch Panel,FTTH 16 Cores Access Terminal Box Black/Cajas Nap Set Completo,Horizontal Fiber Optic Splice Plastic Enclosure,fiberhome An5506-01-a Gpon Onu

Application:

FTTH FTTB FTTX Network,Telecommunication,WANS,CATV

Supply Ability:

1000 pcs per month

Highlight:

wall mount fiber termination box

fiber optic termination box

Product Description

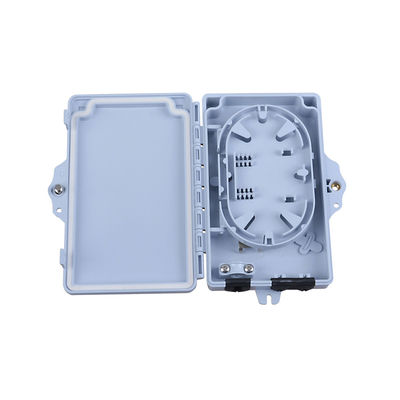

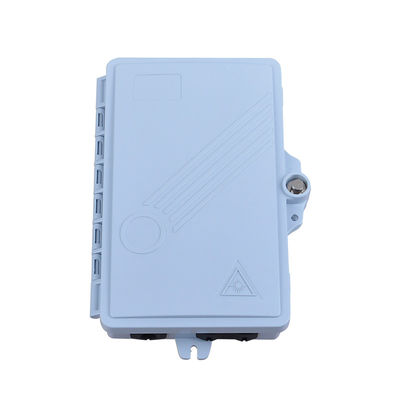

Pole Wall Mounted Outdoor FTTH Termination Box

Professional network and telecommunication fiber optic terminal distribution box designed for FTTx network building applications.

Product Overview

This Pole Wall Mounted Outdoor FTTH Fiber Optical Terminal Distribution Box serves as a termination point for feeder cables to connect with drop cables. It facilitates fiber splicing, splitting, and distribution while providing robust protection and management for FTTx network infrastructure.

Key Features

Industry standard user interface constructed from ABS plastic
Accommodates 1*4, 1*8, 2*4, 2*8 PLC splitters
IP65 waterproof rating for indoor and outdoor use
Supports up to 8 FTTH drop cables
Wall mounting and pole mounting applications
Multiple cable port options: 1 oval or 2 round cable entry ports; 8 or 9 cable exit ports
Standard 86 type panel with compact size and simple operation
Large arc-shaped winding column to prevent potential damage risks
UL94 V1 flame retardance (UL94 V0 available upon request)
Multi-function optical fiber socket for various cables and multi-mode access
Flexible termination methods: splicing + pigtail, mechanical splice + pigtail, fast connector on site

Compliance Standards

TIA/EIA 568.C Optical Fiber Cabling Components Standard
IEC61754 Fiber Optic Connector Interfaces Standard
ANSI/TIA/EIA-606-A Administration Standard for Telecommunications Infrastructure
GR-449-CORE Generic Requirements and Design Consideration for Fiber Distributing Frames
RoHS Directive on Restriction of Hazardous Substances

Technical Specifications

Basic Specifications:
Number of input cable ports: 1
Maximum input cable diameter: 5mm
Maximum capacity: 2 fibers
Maximum customer feeds: 2 patch cords
Dimension: 86 x 86 x 23mm
Material: ABS or PC
Compatible with FTTH drop cable or indoor cable

Specification	Value
Adapter Capacity	02 Adapters
Splice Trays	/
Splice Capacity	02 Splices
Ports	1 Input Port / 4 Output Ports
Material	PC/ABS
Height	86 mm
Width	86 mm
Depth	19mm
Color	White
Port Capacity	2 ports, each port for 1 cable with max 10mm

Model Configuration

Model	Capacity	Type	Adapter Options	Pigtail Options
FFS	2	B	SC: SC/UPC, AS: SC/APC, LC: LC/UPC, AL: LC/APC	SC: SC/UPC, AS: SC/APC, LC: LC/UPC, AL: LC/APC

Applications

Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN networks
CATV systems

Frequently Asked Questions

Are you a trading company or manufacturer?

We are the factory.

How long is your delivery time?

Generally 7-15 days if goods are in stock, or 15-30 days if not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we offer samples free of charge but the customer pays for freight costs.

How about your after-sales service?

We offer 24-hour service phone support and 9-hour email support.

What are your payment terms?

Payment ≤ 1000USD: 100% in advance. Payment ≥ 1000USD: 30% T/T in advance, balance before shipment.

Contact Information

For any questions, please feel free to contact us:
Email: sales03@newlightfiber.com
Phone: 0086 13534063703
WhatsApp: 008613534063703
