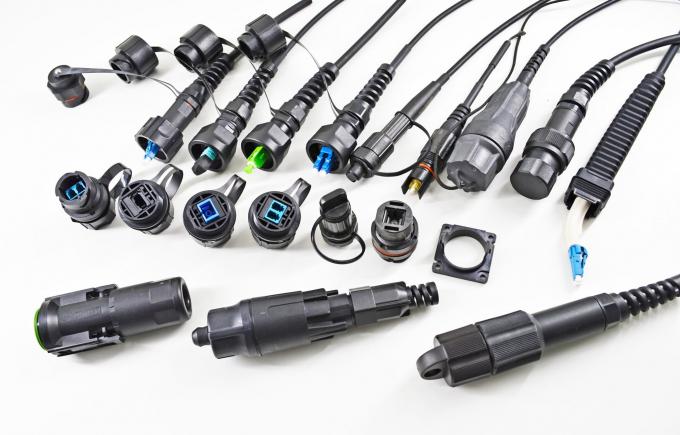

FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector

FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector
FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector
FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector

Large Image :  FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector

Product Details:
Place of Origin: China
Brand Name: NewLight
Certification: IS09001-2008.ROHS
Model Number: NL001
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negoatiate
Packaging Details: 1 pcs per pack
Delivery Time: 3 to 5 working day
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month

FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector

Description
Connector: LC-LC Application: FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments
Length: Any Length Is Customizable Connector Type: SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
Type: Single Mode/Multi-mode Material: PVC/LSZH
Color: Yellow,Orange Or Others,aqua Or Cusomized Wavelength: 850 Nm,1310nm,1310nm Or 1550nm
Fiber Type: G652D,G655,anything,SM Or MM
High Light:

sc sc fiber patch cord

,

single mode fiber optic cable

FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC


Description:

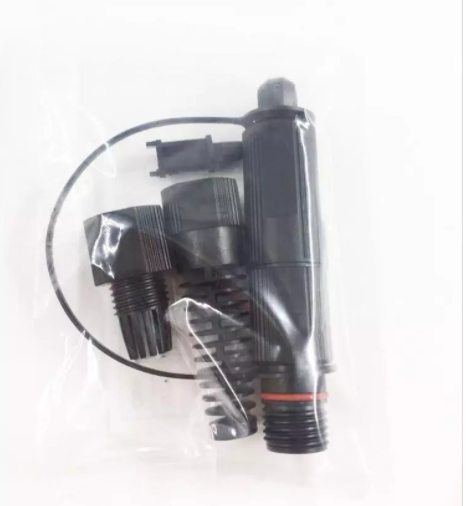

Waterproof outdoor Mini SC APC Fast filed assembly connector which compatiable with optitap adapter. Suitable for drop flat cable,
3.0mm round cable, 5.0mm round cable.
H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
The H connector end incorporates an SC type connection within a slim, sealed, threaded polymer housing allowing easy connection to
either a multi port terminal or in-line extension receptecal.
The SC connectors mate to a standard adapter providing a common interface for FTTX applications

Features:
-Provides superior weather resistance for FTTA and other outdoor applications.;
- Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;
- Suitable for FTTA and outdoor temperature extremes;
-Ensures functionality in harsh weather environments;
- Can be installs without special tooling;
-Threaded style coupling;
-Provides bend protection for installation and long term use.
Application:
-FTTA FTTH FTTX
-Local Area Network (LAN)
-Data communication network
-Telecommunication optical transmission network
-Optical access network(OAN)
-Active device termination
-Fiber optics data transmission(FODT)
-Test Equipment
-CATV

Specification:


Model NumberIP67 field fast assembly mini SC/APC H connector
ApplicationFTTH BBU RRU FTTX Network
Waterproof LevelIP67
MaterialFlame-Retardant
Connector TypeUPC/APC

FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector 0
FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector 1


Ordering Options:

Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.
These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector 2



Connector typeSC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc
PolishUPC,APC,PC
Cable typeSimplex,Duplex straight,Duplex Reverse
FiberSM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655)
Cable JacketRiser,Plenum,LSZH
Cable Diameter3.0mm,2.0mm,0.9mm,etc
Cable LengthLength in meter


Type:

* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.
* Ferrule endface: PC,UPC,APC,etc.
* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.
* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.
* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.




Features

* Good durability
* Good exchangeability
* High temperature stability
* Low insertion loss and back reflection loss
* Superior quality standard PC/UPC/APC Polishing
* Standard: Telcordia GR-326-CORE,TIA/EIA and IEC

FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector 3

FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini Sc / APC Connector 4
