IP67 Waterproof FTTA Outdoor SC/APC Connector with Field Fast Assembly for Temperature Extremes

Brand Name:	NewLight
Model Number:	NL001
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector:

LC-LC

Application:

FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Type:

Single Mode/Multi-mode

Material:

PVC/LSZH

Color:

Yellow,Orange Or Others,aqua Or Cusomized

Wavelength:

850 Nm,1310nm,1310nm Or 1550nm

Fiber Type:

G652D,G655,anything,SM Or MM

Supply Ability:

1000000

Highlight:

sc sc fiber patch cord

single mode fiber optic cable

Product Description

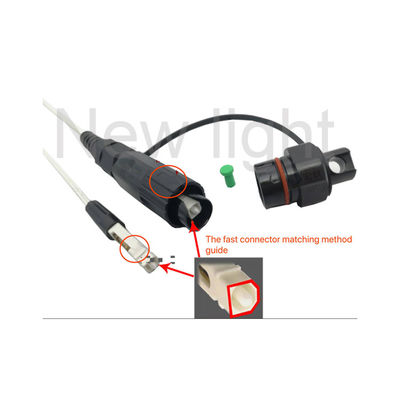

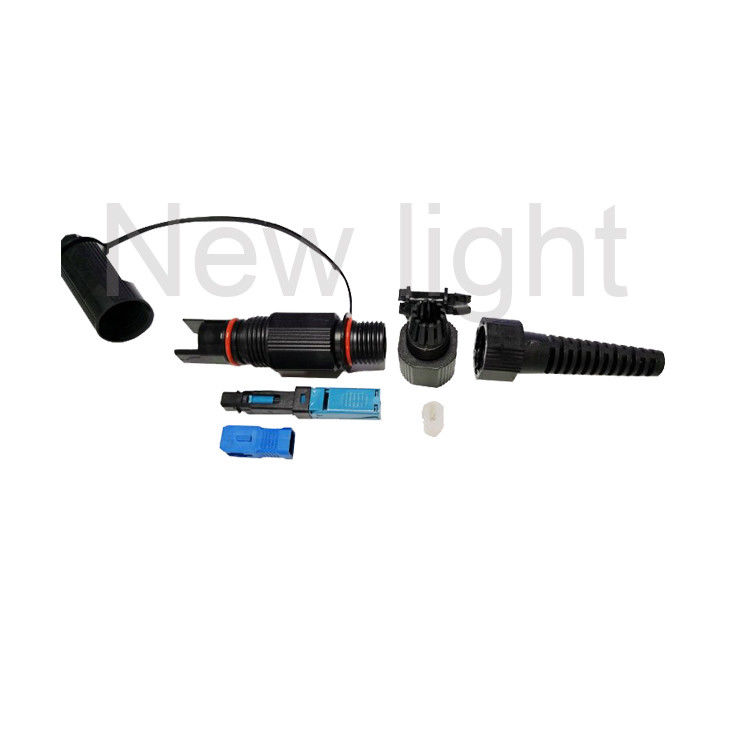

FTTA Outdoor Waterproof IP67 Field Fast Assembly Mini SC/APC Connector

Waterproof outdoor Mini SC APC Fast field assembly connector compatible with Optitap adapter. Suitable for drop flat cable, 3.0mm round cable, and 5.0mm round cable. H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H connector end incorporates an SC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptacle. The SC connectors mate to a standard adapter providing a common interface for FTTX applications.

Key Features

Provides superior weather resistance for FTTA and other outdoor applications
Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
Suitable for FTTA and outdoor temperature extremes
Ensures functionality in harsh weather environments
Can be installed without special tooling
Threaded style coupling
Provides bend protection for installation and long term use

Applications

FTTA FTTH FTTX
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network (OAN)
Active device termination
Fiber optics data transmission (FODT)
Test Equipment
CATV

Specifications

Model Number	IP67 field fast assembly mini SC/APC H connector
Application	FTTH BBU RRU FTTX Network
Waterproof Level	IP67
Material	Flame-Retardant
Connector Type	UPC/APC

Ordering Options

Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC, UPC, APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.

Connector type	SC, FC, ST, LC, E2000, DIN, MU, MTRJ, etc
Polish	UPC, APC, PC
Cable type	Simplex, Duplex straight, Duplex Reverse
Fiber	SM(G652), 62.5/125um, 50/125um, OM2, OM3, SM(G655)
Cable Jacket	Riser, Plenum, LSZH
Cable Diameter	3.0mm, 2.0mm, 0.9mm, etc
Cable Length	Length in meter

Available Types

Connector type: FC, SC, ST, LC, MT-RJ, MU, etc.
Ferrule endface: PC, UPC, APC, etc.
Fiber type: single mode, polarization-maintaining optical fiber, multimode 50/125, multimode 62.5/125, etc.
Cable diameter: 0.9mm, 2.0mm, 3.0mm, etc.
Number of fiber connected: single-core connector, dual-core connector and multi-core connector.

Product Features

Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior quality standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Frequently Asked Questions

Are you trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally it is 7-15 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, according to quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

How about your after-sales service?

We offer you 24 hours service phone, 9 hours with mail.

What is your terms of payment?

Payment <= 10000USD, 100% in advance. Payment >= 10000USD, 30% T/T in advance, balance before shipment.
