HUAWEI Mini SC Waterproof Outdoor IP67 Rated FTTA Optical Fiber Patch Cord for Harsh Environments

Brand Name:	NewLight
Model Number:	NL001
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector:

LC-LC

Application:

FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Type:

Single Mode/Multi-mode

Material:

PVC/LSZH

Color:

Yellow,Orange Or Others,aqua Or Cusomized

Wavelength:

850 Nm,1310nm,1310nm Or 1550nm

Fiber Type:

G652D,G655,anything,SM Or MM

Connector:

LC-LC

Application:

FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Type:

Single Mode/Multi-mode

Material:

PVC/LSZH

Color:

Yellow,Orange Or Others,aqua Or Cusomized

Wavelength:

850 Nm,1310nm,1310nm Or 1550nm

Fiber Type:

G652D,G655,anything,SM Or MM

Supply Ability:

1000000

Highlight:

single mode fiber optic cable

duplex fiber patch cord

Product Description

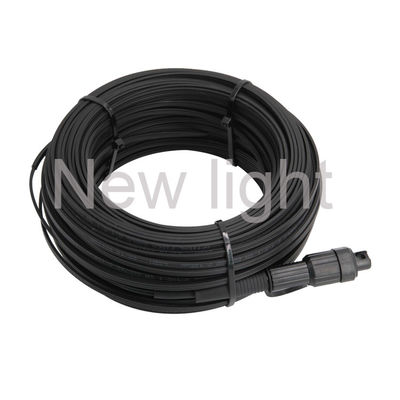

HUAWEI Mini SC Connector Optical Fiber Patch Cord

Waterproof Outdoor Patch Cord

HUAWEI Mini SC connector fiber optic waterproof outdoor patch cord provides reliable connectivity for demanding outdoor applications. These sealed circular IP67 ODVA duplex LC fiber patch cable assemblies are available in both single mode and multimode versions, designed specifically for outdoor use in various temperature and weather conditions.

Technical Specifications

Parameter	Single-mode	Multi-mode
Insertion Loss	≦0.3dB
Return Loss	≧50 dB(PC),≧60 dB(APC)	≧50 dB(PC),≧60 dB(APC)
Repeatability	≦0.1dB
Durability	0.2dB Max, 1000 mating cycles
Operating Temperature	-40℃ ~ 80℃
Storage Temperature	-40℃ ~ 81℃

Key Features

Cost-effective solution for in-house termination
IP67 Water immersion and Dust protection for harsh environments
Chemical Resistance
Simple assembly requiring no special tools
Push-pull insertion with bayonet-style mechanical latch for easy installation and removal
Durable mechanical mating, minimum of 500 matings
Wide operational temperature range for outside plant: -40°C to +85°C
SC/APC IL<0.3 typically
100% optically tested to ensure quality performance

Applications

FTTA FTTH FTTX
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network (OAN)
Active device termination
Fiber optics data transmission (FODT)
Test Equipment
CATV

Ordering Options

Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC, UPC, APC profile and convex spherical end. These end face types allow for faster polishing, low back reflection and optical loss, while ensuring maximum repeatability.

Available Configurations

Connector type: FC, SC, ST, LC, MT-RJ, MU, etc.
Ferrule endface: PC, UPC, APC, etc.
Fiber type: single mode, polarization-maintaining optical fiber, multimode 50/125, multimode 62.5/125, etc.
Cable diameter: 0.9mm, 2.0mm, 3.0mm, etc.
Number of fiber connected: single-core connector, dual-core connector and multi-core connector.

Quality Standards

Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior quality standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Frequently Asked Questions

Are you trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally it is 7-15 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

How about your after-sales service?

We offer you 24 hours service phone, 9 hours with mail.

What is your terms of payment?

Payment <= 10000USD, 100% in advance. Payment >= 10000USD, 30% T/T in advance, balance before shipment.

Contact Information

Any questions please feel free to contact with us.

Email: sales03@newlightfiber.com

Phone: 0086 13534063703
