Waterproof Corrosion Resistant FULLAXS Connector Optical Fiber Patch Cord for Outdoor Use

Brand Name:	NewLight
Model Number:	NL001
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector:

LC-LC

Application:

FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Type:

Single Mode/Multi-mode

Material:

PVC/LSZH

Color:

Yellow,Orange Or Others,aqua Or Cusomized

Wavelength:

850 Nm,1310nm,1310nm Or 1550nm

Fiber Type:

G652D,G655,anything,SM Or MM

Connector:

LC-LC

Application:

FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Type:

Single Mode/Multi-mode

Material:

PVC/LSZH

Color:

Yellow,Orange Or Others,aqua Or Cusomized

Wavelength:

850 Nm,1310nm,1310nm Or 1550nm

Fiber Type:

G652D,G655,anything,SM Or MM

Supply Ability:

1000000

Highlight:

sc sc fiber patch cord

single mode fiber optic cable

Product Description

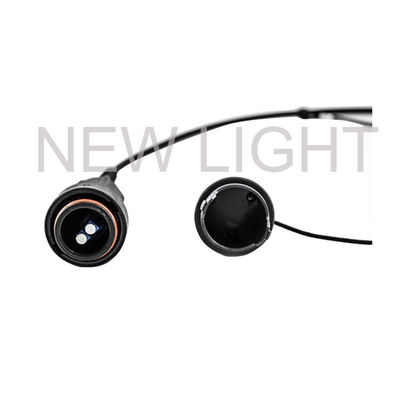

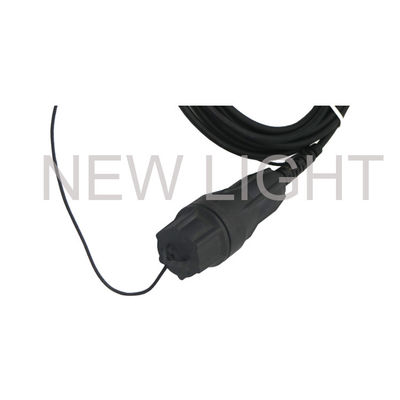

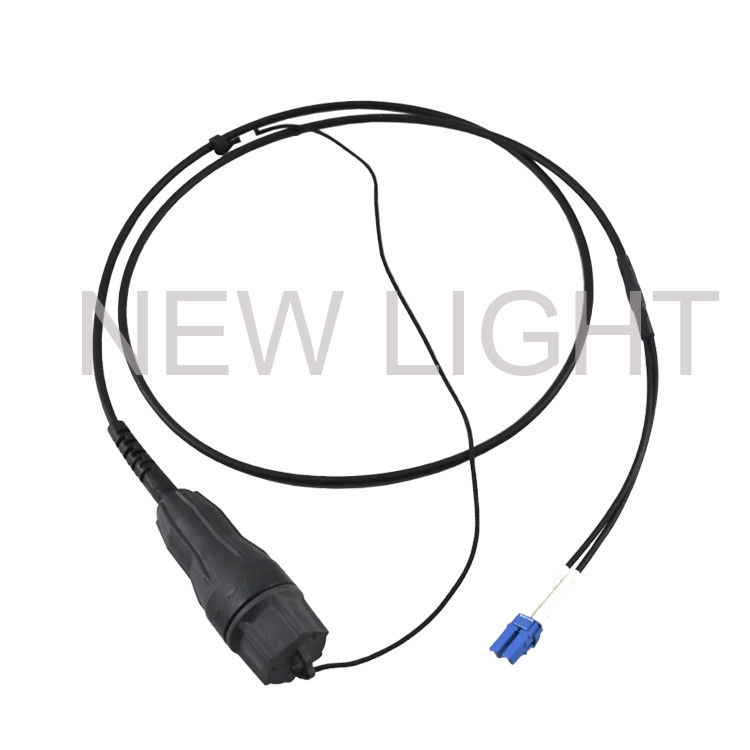

SM/MM Outdoor Optical Fiber Patch Cord with FULLAXS Connector

Waterproof FULLAXS Connector SM/MM outdoor fiber optic patch cable designed for next-generation WIMAX and Long Term Evolution (LTE) Fiber To The Antenna (FTTA) connectivity. These rugged cable assemblies are engineered for outdoor use and direct connection to optical transceivers through bulkhead construction.

Key Features

Open bulkhead for easy access to SFP transceivers
Positive feedback to operator when fully mated
One-hand mating operation
Duplex LC interface compatibility
Bulkhead cutouts allow transceiver removal without opening RRH
Robust bayonet locking for secure mating
Available for Multimode and Singlemode applications
Waterproof, dust proof and corrosion resistant
Expansion capability to RJ45 and other interfaces
Tolerance-free design with fully free floating Z-axis
No cable buckling during or after installation
100% tested and serialized fiber assemblies
Field installable version available

Applications

WIMAX and LTE Base Stations
Remote Radio Heads (RRH)
Industrial outdoor applications
Robotics systems
Aerospace & Defense equipment

Performance Parameters

Parameter	Single-mode	Multi-mode
Insertion Loss	≦0.3dB
Return Loss	≧50 dB(PC),≧60 dB(APC)	≧50 dB(PC),≧60 dB(APC)
Repeatability	≦0.1dB
Durability	0.2dB Max, 1000 matings
Operating Temperature	-40℃ ~ 80℃
Storage Temperature	-40℃ ~ 81℃

Additional Features

Cost effective solution for in-house termination
IP67 Water immersion and Dust protection for harsh environments
Chemical Resistance
Simple assembly requiring no special tools
Push-pull insertion with bayonet-style mechanical latch
Durable mechanical mating, minimum of 500 matings
Wide operational temperature range: -40 to +85°C
SC/APC IL<0.3 typically
100% optically tested for quality performance

Ordering Options

Both singlemode and multimode versions come with zirconia ceramic ferrules with pre-polished PC, UPC, APC profiles and convex spherical ends. These end face types ensure faster polishing, low back reflection, minimal optical loss, and maximum repeatability.

Available Configurations

Connector type: FC, SC, ST, LC, MT-RJ, MU, etc.
Ferrule endface: PC, UPC, APC, etc.
Fiber type: single mode, polarization-maintaining, multimode 50/125, multimode 62.5/125, etc.
Cable diameter: 0.9mm, 2.0mm, 3.0mm, etc.
Number of fibers: single-core, dual-core and multi-core connectors

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are the factory.

Q: How long is your delivery time?

A: Generally 7-15 days if goods are in stock, or 15-30 days if not in stock, depending on quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we offer samples free of charge but the customer pays for freight.

Q: How about your after-sales service?

A: We offer 24-hour service phone support and 9-hour email support.

Q: What are your payment terms?

A: Payment <= 10000 USD: 100% in advance. Payment >= 10000 USD: 30% T/T in advance, balance before shipment.

Contact Information

For any questions, please feel free to contact us:
Email: sales03@newlightfiber.com
Mobile: 0086 13534063703
