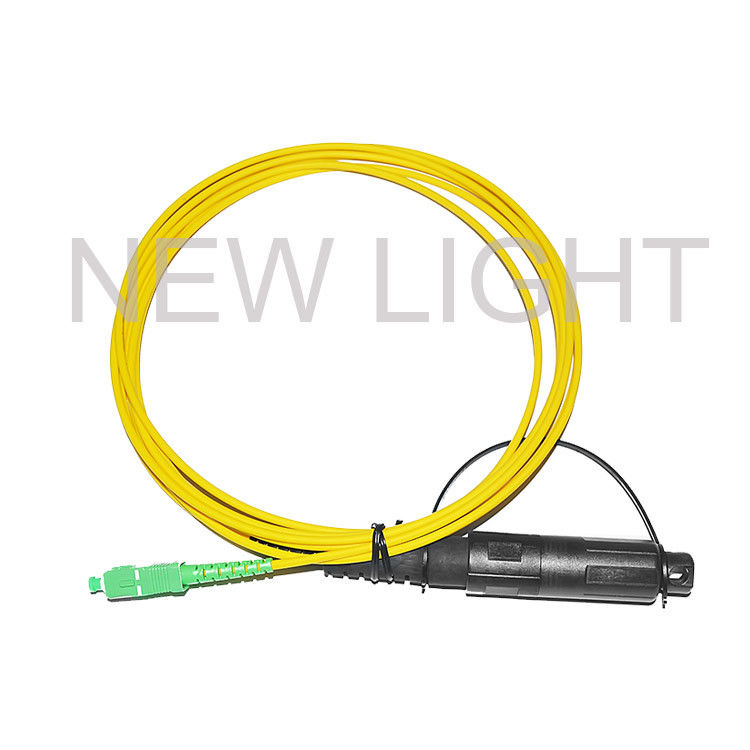

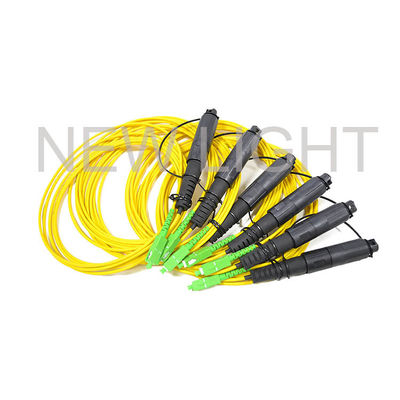

Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector

Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector
Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector
Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector

Large Image :  Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector

Product Details:
Place of Origin: China
Brand Name: NewLight
Certification: IS09001-2008.ROHS
Model Number: NL001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negoatiate
Packaging Details: 1 pcs per pack
Delivery Time: 3 to 5 working day
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month

Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector

Description
Connector: LC-LC Application: FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments
Length: Any Length Is Customizable Connector Type: SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
Type: Single Mode/Multi-mode Material: PVC/LSZH
Color: Yellow,Orange Or Others,aqua Or Cusomized Wavelength: 850 Nm,1310nm,1310nm Or 1550nm
Fiber Type: G652D,G655,anything,SM Or MM
High Light:

sc sc fiber patch cord

,

single mode fiber optic cable

Waterproof ftta fiber optic patch cord supplier ip68 fiber H connector


Description:



Outdoor waterproof Optical Fiber OptiTap SC/APC Drop Patch Cords Cables Jumpers with one copper wire, Outer jacket is PE Materials. OptiTap SC/APC fiber optical outdoor jumper.Fiber Optic OptiTap SC/APC outdoor patch cords drop cable assembly.Outdoor Fiber Optic Patch Cables Cords with Corning OptiTap SC/APC Connectors

We also can do 3.0mm, 5.0mm, 4.5*8.0mm OptiTap SC/APC patch cords for customers, more request please feel free to contact with SpringOptic, your comments is very important for our SpringOptic Team.


Features And Benefits:



1. Smaller profile and reduced bend-radius
Designed for rapid connection to external flush-mounted bulkhead adapters on terminals or closures
2. Robust design keeps connector intact during installation
Integral pulling eye/connector cap designed for 100 lb maximum pulling tension
3. Easy , easy-to-connect screw closure system
4. Double cable cover 4.6mm XTREMDROP
5. High effectiveness and performance Low Loss by Insertion
6. IP67 Protection against water and protection against dust in rigorous environments
7. Wide operation with temperatures -40 to 70ºC
8. Mounting range, available for DualDrop hoses and other drop-in cables with simple cover
9. High Resistance



Temperature Range:


Operation -40 °C to 70 °C (-40 °F to 158 °F )

Optical Specifications:
Insertion loss, typical ≤ 0.3 dB
Reflectance, typical >-60 dB



Parameter :

  Single-mode Multi-mode
Insertion Loss 0.3dB
Return Loss ≧50 dB(PC),≧60 dB(APC)
Repeatability ≦0.1dB
Durability 0.2dB Max ,1000 matting
Operating Temperature -40℃ ~ 80℃
Storage Temperature -40℃ ~ 81℃





Features :
1. Cost effective solution for in house termination
2. IP67 Water immersion and Dust protection for hash environment ·
3. Chemical Resistance ·
4. Simple assembly requiring no special tools ·
5. Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
6. Durable mechanical mating, minimum of 500 matings
7. Wide range of operational temperature for outside plant -40 to+85°C
8. SC/APC IL<0.3 typically.
9.100% optically tested to ensure quality performance assemblies.

Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector 0


Ordering Options:

Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.
These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector 1


Type:

* Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.
* Ferrule endface: PC,UPC,APC,etc.
* Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.
* Cable diameter: 0.9mm,2.0mm,3.0mm,etc.
* Number of fiber connected: single-core connector,dual-core connector and multi-core connector.




Features

* Good durability
* Good exchangeability
* High temperature stability
* Low insertion loss and back reflection loss
* Superior quality standard PC/UPC/APC Polishing
* Standard: Telcordia GR-326-CORE,TIA/EIA and IEC

Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector 2

Customized Ftta Optical Fiber Patch Cord PVC/LSZH Ip68 Fiber H Connector 3
