FTTA Fiber Optic Cable with IP68 Waterproof Connector, Customizable Length, and Wide Temperature Range for Harsh Environments

Brand Name:	NewLight
Model Number:	NL001
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector:

LC-LC

Application:

FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Type:

Single Mode/Multi-mode

Material:

PVC/LSZH

Color:

Yellow,Orange Or Others,aqua Or Cusomized

Wavelength:

850 Nm,1310nm,1310nm Or 1550nm

Fiber Type:

G652D,G655,anything,SM Or MM

Connector:

LC-LC

Application:

FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Type:

Single Mode/Multi-mode

Material:

PVC/LSZH

Color:

Yellow,Orange Or Others,aqua Or Cusomized

Wavelength:

850 Nm,1310nm,1310nm Or 1550nm

Fiber Type:

G652D,G655,anything,SM Or MM

Supply Ability:

1000000

Highlight:

sc sc fiber patch cord

single mode fiber optic cable

Product Description

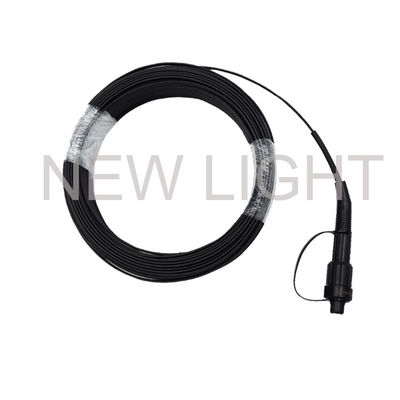

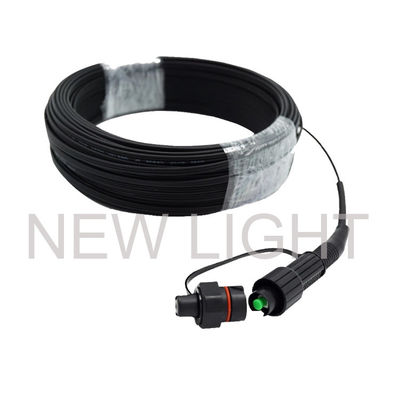

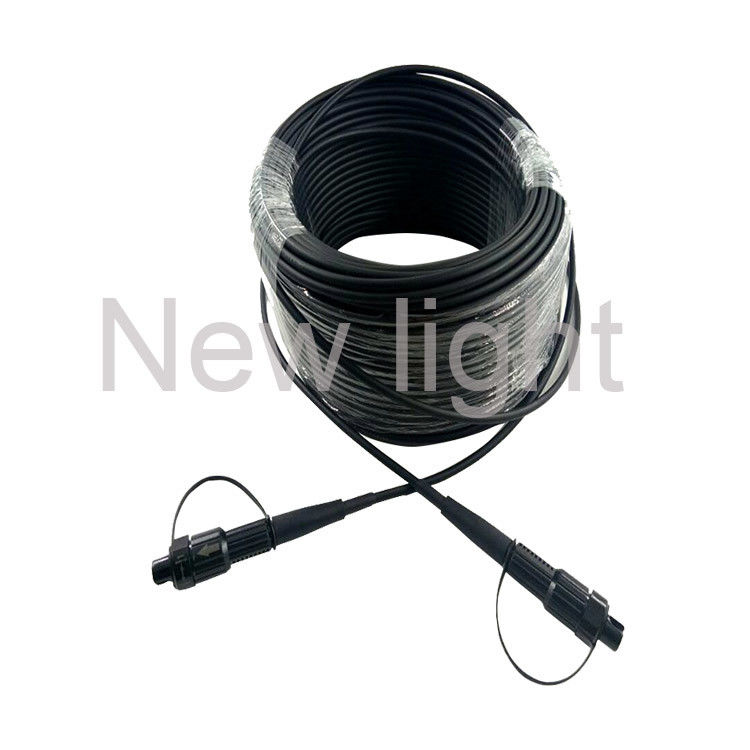

FTTA Fiber Optic Cable With IP68 Fiber Optical Waterproof Connector

Fiber connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G, and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. These assemblies are well-suited for industrial, aerospace, and defense applications.

These cable assemblies have passed rigorous tests including salt mist, vibration, and shock, and meet protection class IP67/IP68.

Key Advantages

Fast network roll out and customer installations
100% tested assemblies built in a controlled environment
Lower cost deployment by utilizing plug and play solutions
Custom built solutions with quick turnaround times
Cost effective solution for in-house termination
IP67 Water immersion and Dust protection for harsh environments
Chemical Resistance
Simple assembly requiring no special tools
Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
Durable mechanical mating, minimum of 500 matings
Wide range of operational temperature for outside plant -40 to +85°C
SC/APC IL<0.3 typically
100% optically tested to ensure quality performance assemblies

Technical Specifications

Temperature Range

Operation: -40°C to 70°C (-40°F to 158°F)

Optical Specifications

Insertion loss, typical ≤ 0.3 dB

Reflectance, typical >-60 dB

Parameter Table

Parameter	Single-mode	Multi-mode
Insertion Loss	≦0.3dB	≦0.3dB
Return Loss	≧50 dB(PC),≧60 dB(APC)	≧50 dB(PC),≧60 dB(APC)
Repeatability	≦0.1dB	≦0.1dB
Durability	0.2dB Max, 1000 matings	0.2dB Max, 1000 matings
Operating Temperature	-40℃ ~ 80℃	-40℃ ~ 80℃
Storage Temperature	-40℃ ~ 81℃	-40℃ ~ 81℃

Ordering Options

Both singlemode and multimode versions of fiber optic patch cords come with a zirconia ceramic ferrule with pre-polished PC, UPC, APC profile and convex spherical end.

These end face types allow for faster polishing, low back reflection and optical loss, while ensuring maximum repeatability.

Available Types

Connector type: FC, SC, ST, LC, MT-RJ, MU, etc.
Ferrule endface: PC, UPC, APC, etc.
Fiber type: single mode, polarization-maintaining optical fiber, multimode 50/125, multimode 62.5/125, etc.
Cable diameter: 0.9mm, 2.0mm, 3.0mm, etc.
Number of fiber connected: single-core connector, dual-core connector and multi-core connector

Technical Characteristics

Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior quality standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Frequently Asked Questions

Are you a trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally it is 7-15 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, according to quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

How about your after-sales service?

We offer you 24 hours service phone, 9 hours with mail.

What is your terms of payment?

Payment <= 10000USD, 100% in advance. Payment >= 10000USD, 30% T/T in advance, balance before shipment.
