Waterproof IP67 FTTA SC/APC Fiber Patch Cord for Outdoor and Base Station Applications

Brand Name:	NewLight
Model Number:	NL001
MOQ:	1~100000
Price:	0.1~100
Packaging Details:	1 pcs per pack
Payment Terms:	T/T,Western Union,MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Connector:

LC-LC

Application:

FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Type:

Single Mode/Multi-mode

Material:

PVC/LSZH

Color:

Yellow,Orange Or Others,aqua Or Cusomized

Wavelength:

850 Nm,1310nm,1310nm Or 1550nm

Fiber Type:

G652D,G655,anything,SM Or MM

Connector:

LC-LC

Application:

FTTA FTTH BBU RRU RRH LTE & Base Station,For ODF Internal Link,For Room Equipment Internal Link,FTTH/Test Equipments/TV/LAN/Telecommunication Equipments

Length:

Any Length Is Customizable

Connector Type:

SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO

Type:

Single Mode/Multi-mode

Material:

PVC/LSZH

Color:

Yellow,Orange Or Others,aqua Or Cusomized

Wavelength:

850 Nm,1310nm,1310nm Or 1550nm

Fiber Type:

G652D,G655,anything,SM Or MM

Supply Ability:

1000000

Highlight:

sc sc fiber patch cord

single mode fiber optic cable

Product Description

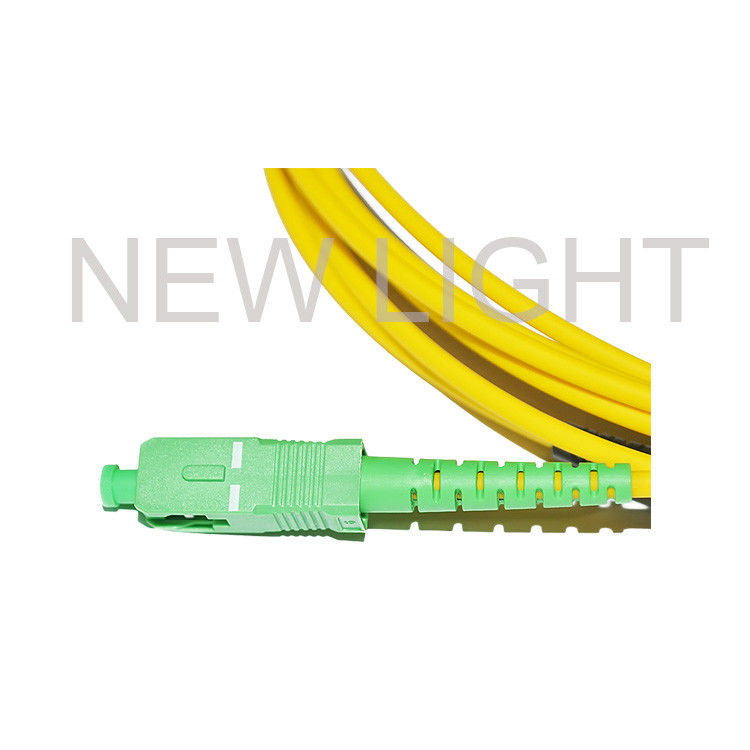

Waterproof FTTA SC APC Fiber Patch Cord IP67 Fiber H Connector

Fiber optic round cable pigtails are designed for linking equipment and components in fiber optic networks. These patch cords feature various connector types and are classified accordingly, such as SC fiber optic pigtails with SC connectors. Available in PC, UPC, and APC polish types to meet different performance requirements.

Product Overview

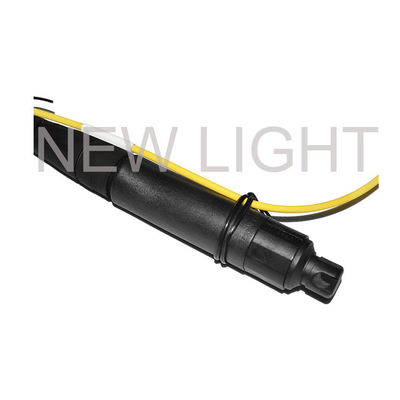

This round fiber optic cable patch cord features SC/APC mini waterproof connectors with integrated adapters and inner connectors for reliable coupling. Engineered for outdoor applications, these connectors provide excellent environmental protection and compatibility with SC, LC, and MPO connectors.

Key Features & Benefits

Smaller profile with reduced bend-radius
Designed for rapid connection to external flush-mounted bulkhead adapters
Robust construction maintains integrity during installation
Integral pulling eye/connector cap supports 100 lb maximum pulling tension
Easy screw closure system for simple operation
Double cable cover 4.6mm XTREMDROP design
High performance with low insertion loss
IP67 rated for protection against water and dust
Wide operating temperature range: -40°C to 70°C
Compatible with DualDrop hoses and other drop-in cables
High resistance to environmental factors

Technical Specifications

Temperature Range: Operation -40°C to 70°C (-40°F to 158°F)

Optical Specifications: Insertion loss ≤ 0.3 dB typical, Reflectance > -60 dB typical

Parameter	Single-mode	Multi-mode
Insertion Loss	≤ 0.3dB
Return Loss	≥ 50 dB (PC)	≥ 60 dB (APC)
Repeatability	≤ 0.1dB
Durability	0.2dB Max, 1000 mating cycles
Operating Temperature	-40℃ to 80℃
Storage Temperature	-40℃ to 81℃

Additional Features

Cost-effective in-house termination solution
IP67 rated for water immersion and dust protection
Chemical resistance for harsh environments
Simple assembly requiring no special tools
Push-pull insertion with bayonet-style mechanical latch
Durable mechanical mating (minimum 500 cycles)
Wide operational temperature range: -40°C to +85°C
SC/APC insertion loss typically < 0.3 dB
100% optically tested for quality assurance

Ordering Options

Both singlemode and multimode fiber optic patch cords feature zirconia ceramic ferrules with pre-polished PC, UPC, or APC profiles and convex spherical ends. These end face types enable faster polishing while ensuring low back reflection, minimal optical loss, and maximum repeatability.

Available Configurations

Connector types: FC, SC, ST, LC, MT-RJ, MU, etc.
Ferrule endface: PC, UPC, APC, etc.
Fiber type: Single mode, polarization-maintaining, multimode 50/125, multimode 62.5/125, etc.
Cable diameter: 0.9mm, 2.0mm, 3.0mm, etc.
Number of fibers: Single-core, dual-core, and multi-core connectors

Quality Standards

Excellent durability and exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior quality PC/UPC/APC polishing
Compliant with Telcordia GR-326-CORE, TIA/EIA, and IEC standards

Frequently Asked Questions

Are you a trading company or manufacturer?

We are the factory.

How long is your delivery time?

Generally 7-15 days for in-stock items, or 15-30 days for out-of-stock items, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we offer samples free of charge, but customers pay the freight cost.

How about your after-sales service?

We provide 24-hour phone service and 9-hour email support.

What are your payment terms?

Payment ≤ $10,000 USD: 100% in advance. Payment ≥ $10,000 USD: 30% T/T in advance, balance before shipment.

Contact Information

Email: sales03@newlightfiber.com

Phone: 0086 13534063703

Please feel free to contact us with any additional questions.
