24 Core GYTS Fiber Optic Cable with LSZH Jacket for Aerial Application

Brand Name:	NL
Model Number:	NL
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Fiber Type:

Singlemode G652D ,G657A

Outer Jacket Material:

LSZH

Strength Member Material:

KFRP / FRP / Steel Wire

Packaging:

Wooden Wheel

Test Repor:

Out Package Of The Cable

Fiber Struction:

Figure8

Usage:

Aerial

Certification:

ISO9001,ROHS,CE,CE And ROHS,ISO9001/CE/ROHS

Type:

Single-Mode Or Multi-Mode

Jacket Material:

LSZH,PVC,PE,TPU,PVC/LSZH

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

fiber optic drop cable

Product Description

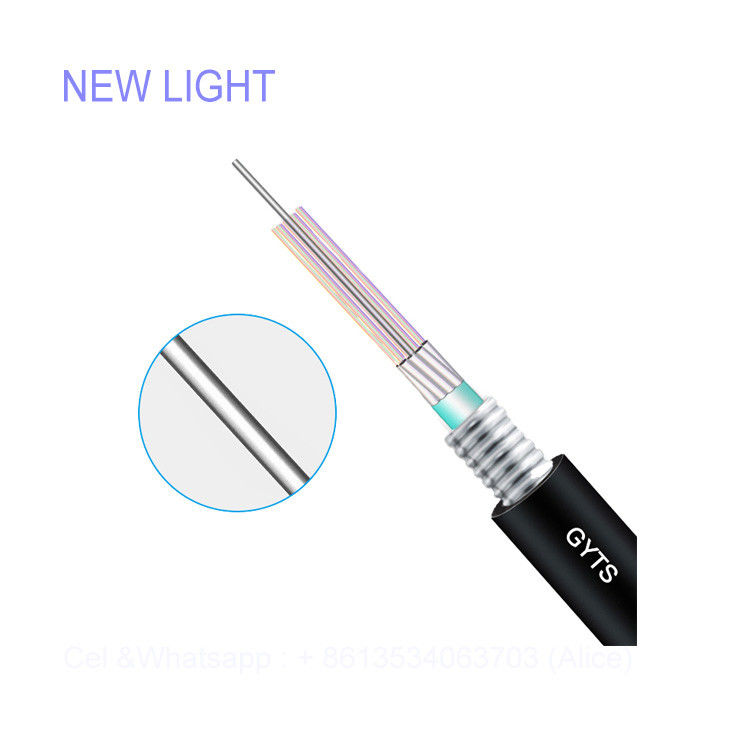

PSP Flexibility GYTS 24 Core 12 Fibra Armored Duct and Aerial Fiber Optic Cable

This high-performance armored fiber optic cable features PSP flexibility and is designed for both duct and aerial applications. The GYTS 24 Core 12 Fibra cable provides reliable data transmission with robust construction.

Product Description

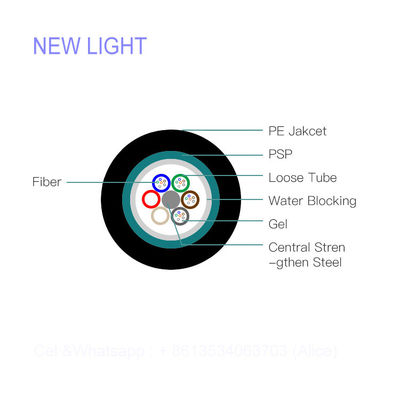

This fiber optic cable utilizes single-mode fibers (G652, G655, G657) with loose tubes constructed from high modulus plastic. The cable features water-resistant filling compound for enhanced protection.

The center steel wire serves as a metallic strength member, with some variants featuring polyethylene-sheathed steel wire. Tubes and fillers are stranded around the strength member to form a compact, circular cable core. The cable includes double-sided chromium PSP with PE sheath.

Designed for installation with single or double wire configurations, the cable features a durable PE outer sheath for maximum protection.

Features and Applications

Small cable diameter with high tensile strength
Excellent mechanical and temperature performance
Robust 900μm tight buffered fibers for easy termination
Outer jacket provides superior anti-ultraviolet and water blocking performance
Glass yarn strength members and steel tape armor for rodent resistance
Ideal for short run interconnect links
Suitable for under floor or ceiling spaces
Perfect for installation in trunking and LAN backbones
Designed for duct/conduit, aerial, and direct burial applications
Excellent for fiber backbones in riser and horizontal configurations

Technical Specifications

GYTS cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.

	G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@1310nm ≤0.36 dB/km	@1310nm ≤0.40 dB/km	@850nm ≤3.0 dB/km	@850nm ≤3.0 dB/km
	@1550nm ≤0.22 dB/km	@1550nm ≤0.23 dB/km	@1300nm ≤1.0 dB/km	@1300nm ≤1.0 dB/km
			Bandwidth (Class A)
			@850nm ≥500 MHzkm @1300nm ≥1000 MHzkm	@850nm ≥200 MHzkm @1300nm ≥600 MHzkm
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	≤1260nm	≤1480nm

Packaging

Length and packaging	2000m/3000 plywood reel
Packaging details	Wooden wheel

Applications

Ideal solution for tight-buffered distribution waterproof indoor/outdoor cable. This distribution waterproof indoor/outdoor cable is easy to install and handle. With high mechanical strength, rodent and waterproof protection, the ideal application of the cable is for LAN backbones, direct burial, ducts, trunking, and under floor or ceiling spaces.

Packaging & Shipping

NEW LIGHT offers standardized packaging of cable, and we can ship it as soon as possible for adequate inventory. We pack the cable with roll, then put it into carton. The package provides good protection for cable. Usually we only attach test report on the out package of the cable, but we could also mark as your requirements.

Frequently Asked Questions

Are you trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally it is 7-15 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

How about your after-sales service?

We offer you 24 hours service phone, 9 hours with mail.

What is your terms of payment?

Payment ≤ 10000USD, 100% in advance. Payment ≥ 10000USD, 30% T/T in advance, balance before shipment.

Contact Information

Any questions please feel free to contact with us.

Email: sales03@newlightfiber.com

Phone: 0086 13534063703
