Waterproof LSZH Jacket G652D Singlemode Fiber Optic Cable Armoured for Outdoor Telecommunication

Brand Name:	NL
Model Number:	NL
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Fiber Type:

Singlemode G652D ,G657A

Outer Jacket Material:

LSZH

Strength Member Material:

KFRP / FRP / Steel Wire

Packaging:

Wooden Wheel

Test Repor:

Out Package Of The Cable

Fiber Struction:

Figure8

Usage:

Aerial

Certification:

ISO9001,ROHS,CE,CE And ROHS,ISO9001/CE/ROHS

Type:

Single-Mode Or Multi-Mode

Jacket Material:

LSZH,PVC,PE,TPU,PVC/LSZH

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

fiber optic drop cable

Product Description

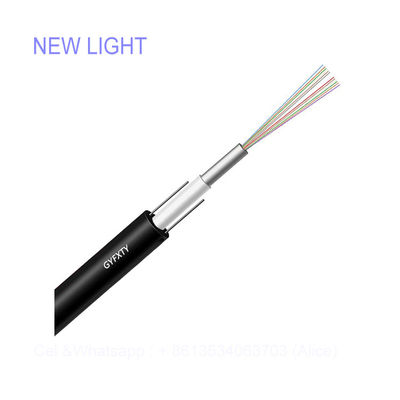

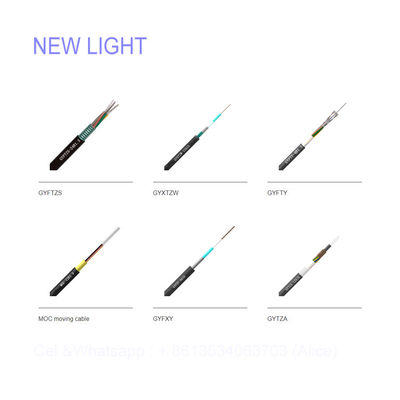

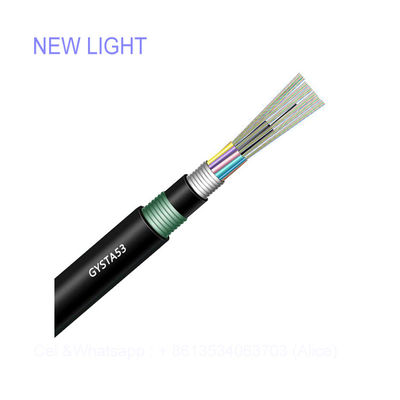

Waterproof Fiber Optic Ethernet Cable / GYTS GYTA GYFTY Armoured Fiber Cable

Product Overview

Fiber optic cable GYTS, 2~144 fibers, featuring central strength member (steel), jelly filled fiber containment in central loose tube, PP filler (when required), water blocking jelly, aluminium polyethylene laminate, and PE outer sheath with G652D single-mode fiber.

Product Specifications

Product Name: 2-288cores GYTS/GYTA G652D Fiber Optic Cable
Color: Black or gray
Jacket: PE/PVC/LSZH
Application: Indoor or outdoor telecommunication, Network
Core: 2 to 288 cores
Length: 0.5m/1m/3m/5m, 2KM/roll, custom lengths available
Working Temperature: -40°C to +60°C
Fiber Types: G652D, G655, G657, A1a(50/125), A1b(62.5/125), OM3
Package: 2km/roll
OEM and ODM services available with over 10 years experience
Certification: CE, Rohs, UL, ISO9001

Features and Applications

Small cable diameter with high tensile strength
Excellent mechanical and temperature performance
Robust 900μm tight buffered fibers for easy termination
Outer jacket provides superior anti-ultraviolet and water blocking performance
Glass yarn strength members and steel tape armor for rodent resistance
Ideal for short run interconnect links
Suitable for under floor or ceiling spaces
Perfect for installation in trunking and LAN backbones
Designed for duct/conduit, aerial, and direct burial applications
Fiber backbones in riser and horizontal configurations

Technical Standards

GYTS cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.

Parameter	G.652	G.655	50/125μm	62.5/125μm
Attenuation @850nm			≤3.0 dB/km	≤3.0 dB/km
Attenuation @1300nm			≤1.0 dB/km	≤1.0 dB/km
Attenuation @1310nm	≤0.36 dB/km	≤0.40 dB/km
Attenuation @1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth @850nm			≥500 MHz*km	≥200 MHz*km
Bandwidth @1300nm			≥1000 MHz*km	≥600 MHz*km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	≤1260nm	≤1480nm

Packaging Information

Length and packaging	2000m/3000 plywood reel
Packaging details	wooden wheel

Application Details

Ideal Solution for Tight-Buffered Distribution Waterproof Indoor/Outdoor Cable. Distribution waterproof indoor/outdoor cable is easy to install and handle. With high mechanical strength, rodent and waterproof protection, the ideal application of the cable is for LAN backbones, direct burial, ducts, trunking, and under floor or ceiling spaces.

Packaging & Shipping

NEW LIGHT offers standardized packaging of cable, and we can ship it as soon as possible for adequate inventory. We pack the cable with roll, then put it into carton. The package provide good protection for cable. Usually we only attach test report on the out package of the cable, but we could also mark as your requirements.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally it is 7-15 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

How about your after-sales service?

We offer you 24 hours service phone, 9 hours with mail.

What is your terms of payment?

Payment ≤ 10000USD, 100% in advance. Payment ≥ 10000USD, 30% T/T in advance, balance before shipment.

Contact Information

Any questions please feel free to contact with us.

Email: sales03@newlightfiber.com

Phone: 0086 13534063703
