Aerial Fiber Optic Cable with LSZH Jacket and Self-Supporting Stranded Wires for Hydrolysis Resistant Loose Tube GYXTC8Y

Brand Name:	NL
Model Number:	NL
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Fiber Type:

Singlemode G652D ,G657A

Outer Jacket Material:

LSZH

Strength Member Material:

KFRP / FRP / Steel Wire

Packaging:

Wooden Wheel

Test Repor:

Out Package Of The Cable

Fiber Struction:

Figure8

Usage:

Aerial

Certification:

ISO9001,ROHS,CE,CE And ROHS,ISO9001/CE/ROHS

Type:

Single-Mode Or Multi-Mode

Jacket Material:

LSZH,PVC,PE,TPU,PVC/LSZH

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

fiber optic drop cable

Product Description

Aerial Uni Loose Tube 8 Optic Fiber Cable Self Supported Figure GYXTC8Y

Aerial Uni Loose Tube Self Supported Figure 8 Optic Fiber Cable GYXTC8Y offers reliable performance for outdoor aerial installations with excellent mechanical and environmental characteristics.

Features and Applications

Small cable diameter with figure 8 cross section design
Self-supporting stranded wires for easy installation
Excellent mechanical and environmental performance
High strength hydrolysis resistant loose tube
Medium density polyethylene jacket for low friction installation
Designed for outdoor aerial applications
Ideal for long-haul communication systems
Suitable for subscriber network systems
Compatible with junction communication systems
Perfect for CATV & computer networks systems

Product Description

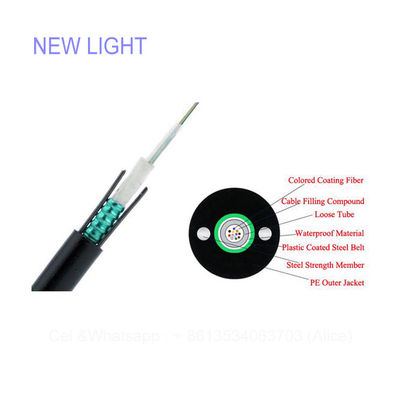

The cable core consists of loose tubes accommodating 2-24 fibers each. The metal strength member features stranded wires as the supporting component, completed with a polyethylene (PE) sheath forming the distinctive figure 8 structure. With high strength hydrolysis resistant loose tubes, GYXTC8Y represents an ideal self-supporting outdoor cable solution for aerial installation.

Standards Compliance

Cable complies with Standard YD/T 901-2001 as well as IEC 60794-1.

Technical Specifications

Parameter	G.652	G.655	50/125μm	62.5/125μm
Attenuation @850nm			≤3.0 dB/km	≤3.0 dB/km
Attenuation @1300nm			≤1.0 dB/km	≤1.0 dB/km
Attenuation @1310nm	≤0.36 dB/km	≤0.40 dB/km
Attenuation @1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth @850nm (Class A)			≥500 MHz*km	≥200 MHz*km
Bandwidth @1300nm (Class A)			≥1000 MHz*km	≥600 MHz*km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	≤1260nm	≤1480nm

Packaging Details

Item	Specification
Length and packaging	2000m/3000 plywood reel
Packaging details	Wooden wheel

Application Solutions

Ideal solution for tight-buffered distribution waterproof indoor/outdoor cable. Distribution waterproof indoor/outdoor cable is easy to install and handle. With high mechanical strength, rodent and waterproof protection, the ideal application of the cable is for LAN backbones, direct burial, ducts, trunking, and under floor or ceiling spaces.

Packaging & Shipping

NEW LIGHT offers standardized packaging of cable, and we can ship it as soon as possible for adequate inventory. We pack the cable with roll, then put it into carton. The package provides good protection for cable. Usually we only attach test report on the out package of the cable, but we could also mark as your requirements.

Frequently Asked Questions

Are you trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally it is 7-15 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

How about your after-sales service?

We offer you 24 hours service phone, 9 hours with mail.

What is your terms of payment?

Payment <=10000USD, 100% in advance. Payment >=10000USD, 30% T/T in advance, balance before shipment.
