Direct Burial Fiber Optic Cable GYTY53 with 12/24/36/48/72/96/144/216/288 Core, Steel Tape Armored and LSZH Outer Jacket

Brand Name:	NL
Model Number:	NL
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Fiber Type:

Singlemode G652D ,G657A

Outer Jacket Material:

LSZH

Strength Member Material:

KFRP / FRP / Steel Wire

Packaging:

Wooden Wheel

Test Repor:

Out Package Of The Cable

Fiber Struction:

Figure8

Usage:

Aerial

Certification:

ISO9001,ROHS,CE,CE And ROHS,ISO9001/CE/ROHS

Type:

Single-Mode Or Multi-Mode

Jacket Material:

LSZH,PVC,PE,TPU,PVC/LSZH

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

fiber optic drop cable

Product Description

Direct Burial Fiber Optic Cable GYTY53 12/24/36/48/72/96/144/216/288 Core

GYTY53 fiber optic cable is designed for direct burial underground applications, suitable for long distance communications and LAN fiber networks. Available in both single mode and multimode configurations.

Product Overview

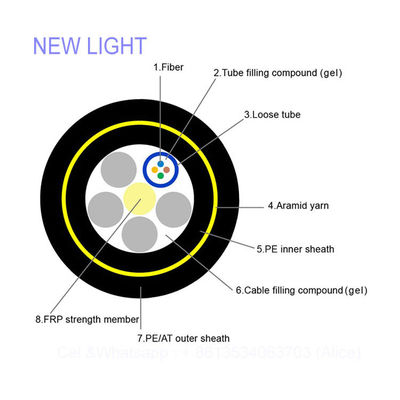

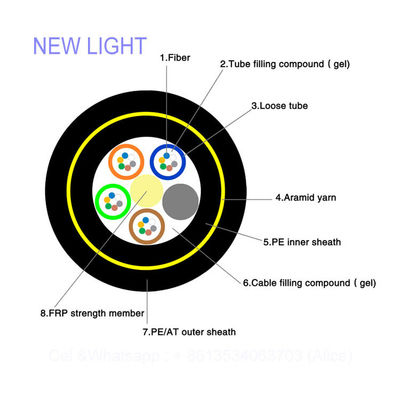

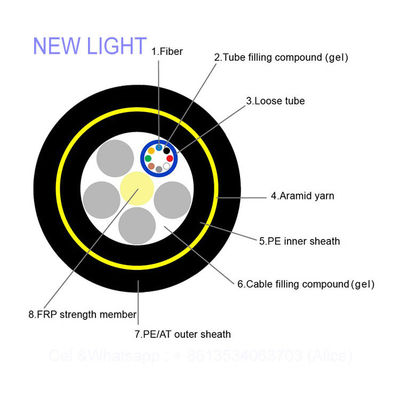

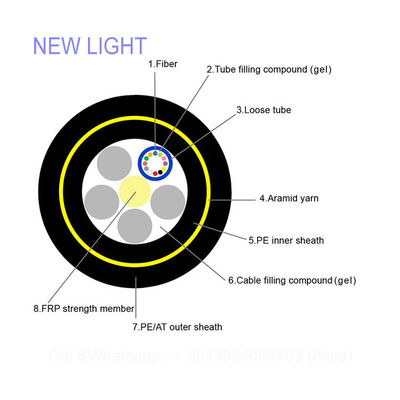

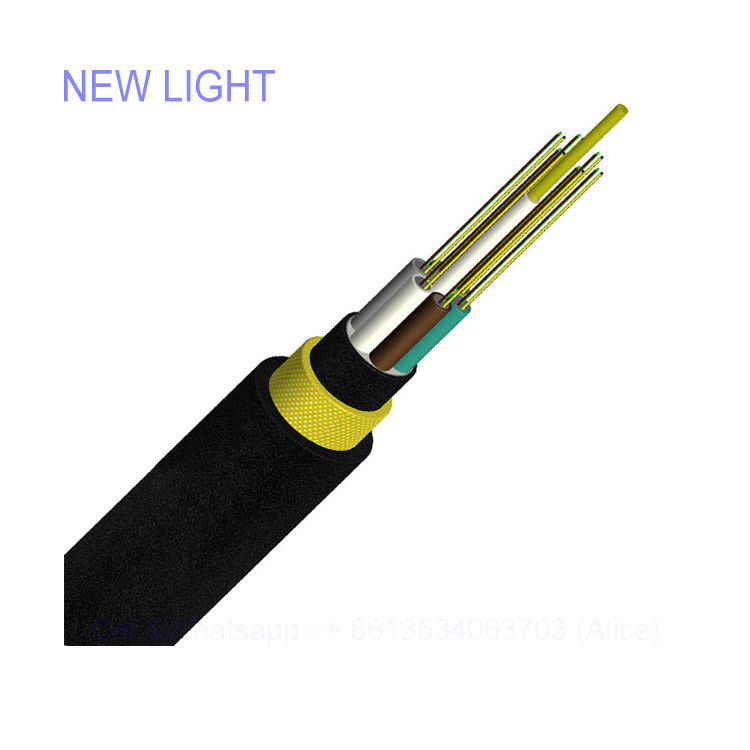

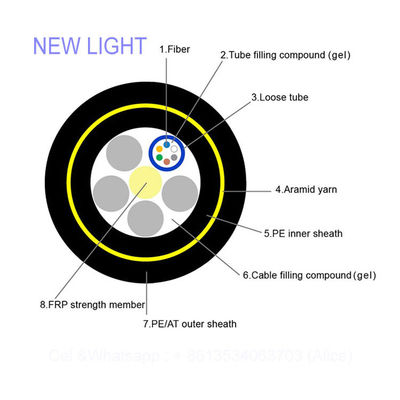

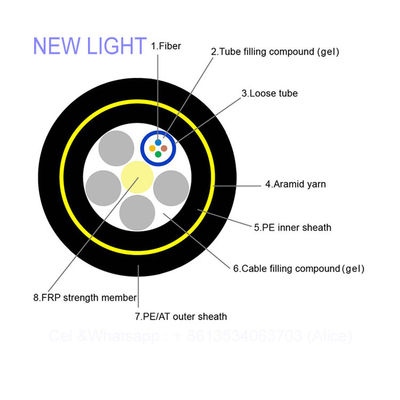

GYTY53 fiber cable features a stranded loose tube structure with steel tape double sheaths. The loose tube stranding technology provides excellent secondary excess length and allows fiber movement within the tube, keeping fibers stress-free during longitudinal stress. Steel tape armor and double PE sheath deliver superior crush resistance and rodent protection.

Key Features

Low dispersion and attenuation
Precise fiber excess length control for excellent mechanical and environmental properties
Double-jacket structure for superior moisture and crush resistance
Small diameter and lightweight for easy installation
Operating Temperature: -40°C to +60°C

Applications

Direct burial installation for long-distance communication, local trunk lines, CATV systems, and computer networks.

Technical Specifications

Standards Compliance

GYTA cable complies with Standard YD/T 901-2001 and IEC 60794-1.

Parameter	G.652	G.655	50/125μm	62.5/125μm
Attenuation @850nm			≤3.0 dB/km	≤3.0 dB/km
Attenuation @1300nm			≤1.0 dB/km	≤1.0 dB/km
Attenuation @1310nm	≤0.36 dB/km	≤0.40 dB/km
Attenuation @1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth @850nm			≥500 MHz*km	≥200 MHz*km
Bandwidth @1300nm			≥1000 MHz*km	≥600 MHz*km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	≤1260nm	≤1480nm

Packaging

Length and packaging	2000m/3000 plywood reel
Packaging details	wooden wheel

Application Details

Ideal solution for tight-buffered distribution waterproof indoor/outdoor cable. With high mechanical strength, rodent and waterproof protection, perfect for LAN backbones, direct burial, ducts, trunking, and under floor or ceiling spaces.

Packaging & Shipping

NEW LIGHT offers standardized cable packaging with prompt shipping from adequate inventory. Cables are packed on reels in protective cartons. Test reports are included with each shipment, with custom marking available upon request.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally 7-15 days if goods are in stock, or 15-30 days if not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we offer samples free of charge but freight costs are not included.

How about your after-sales service?

We offer 24-hour phone service and 9-hour email support.

What are your payment terms?

Payment ≤ $10,000 USD: 100% in advance. Payment ≥ $10,000 USD: 30% T/T in advance, balance before shipment.

For any questions, please contact us:

Email: sales03@newlightfiber.com

Phone: 0086 13534063703
