GYXTW Outdoor Fiber Optic Cable with Steel Wire Strength and LSZH Jacket for Aerial Applications

Brand Name:	NL
Model Number:	NL
MOQ:	1 roll
Price:	0.1~100
Packaging Details:	export packing
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Fiber Type:

Singlemode G652D ,G657A

Outer Jacket Material:

LSZH

Strength Member Material:

KFRP / FRP / Steel Wire

Packaging:

Wooden Wheel

Test Repor:

Out Package Of The Cable

Fiber Struction:

Figure8

Usage:

Aerial

Certification:

ISO9001,ROHS,CE,CE And ROHS,ISO9001/CE/ROHS

Type:

Single-Mode Or Multi-Mode

Jacket Material:

LSZH,PVC,PE,TPU,PVC/LSZH

Supply Ability:

1000000

Highlight:

duplex fiber optic patch cable

fiber optic drop cable

Product Description

Single Armored Single Jacket Outdoor Cable GYXTW Steel Wire High Strength

Product Overview

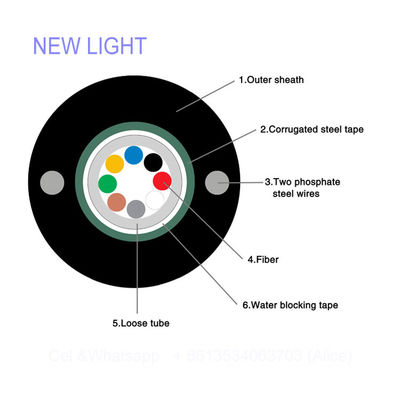

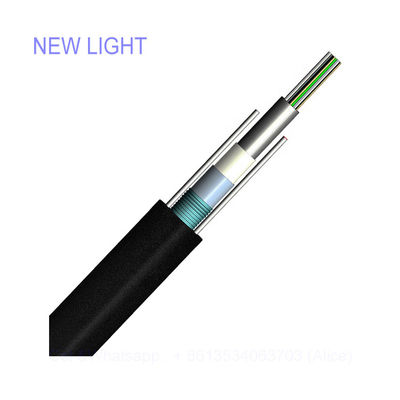

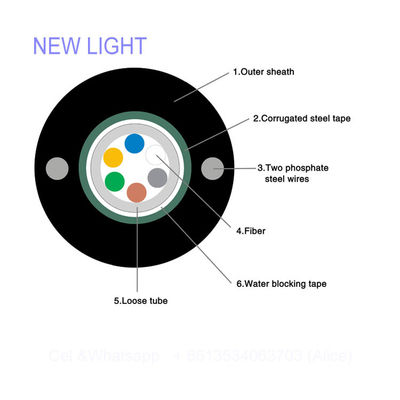

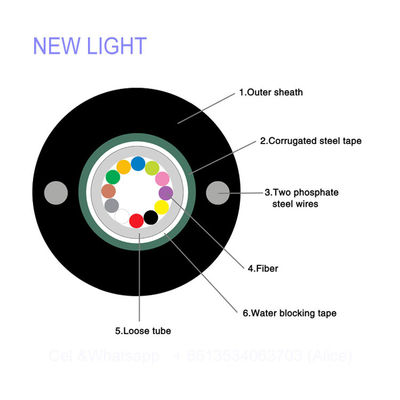

GYXTW single-armored cables feature central loose tube wrapped with a layer of PSP longitudinally, providing excellent crush-resistant performance. Between the PSP and the loose tube, water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath.

Applications

Suitable for installation in aerial or duct environments for communication between bureaus, metropolitan networks, access networks, and is especially suitable for situations where high-density fibers are expected.

Available Specifications

We supply GYXTW fiber optic cable from 2 fiber cores to 24 fiber cores. Both single mode type and multimode types are available.

Key Features

Low dispersion and attenuation
Light weight, small diameter, easy to lay
Good tensile strength and crush resistance performance
Excellent moisture-resistance, water blocking, and flexibility
Superior mechanical and temperature resistant performance

Technical Specifications

Fiber Type	G.652	G.655	50/125μm	62.5/125μm
Attenuation @850nm			≤3.0 dB/km	≤3.0 dB/km
Attenuation @1300nm			≤1.0 dB/km	≤1.0 dB/km
Attenuation @1310nm	≤0.36 dB/km	≤0.40 dB/km
Attenuation @1550nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth @850nm			≥500 MHz*km	≥200 MHz*km
Bandwidth @1300nm			≥1000 MHz*km	≥600 MHz*km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	≤1260nm	≤1480nm

Packaging Details

Length and packaging	2000m/3000 plywood reel
Packaging details	wooden wheel

Application Environments

Central Loose Tube Structure for Duct and Aerial Application. With excellent mechanical and temperature resistant performance, GYXTW outdoor cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including aerial or duct environment for communication between bureaus, metropolitan network, access network and extreme conditions, like rainy, foggy environments.

Packaging & Shipping

NEW LIGHT offers standardized packaging of cable, and we can ship it as soon as possible with adequate inventory. We pack the cable with roll, then put it into carton. The package provides good protection for cable. Usually we only attach test report on the outer package of the cable, but we could also mark as per your requirements.

Frequently Asked Questions

Are you trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally it is 7-15 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

How about your after-sales service?

We offer you 24 hours service phone, 9 hours with mail.

What is your terms of payment?

Payment ≤ 10000USD, 100% in advance. Payment ≥ 10000USD, 30% T/T in advance, balance before shipment.

Contact Information

Any questions please feel free to contact with us.

Email: sales03@newlightfiber.com

Phone: 0086 13534063703
