Fiber Optic Splitter

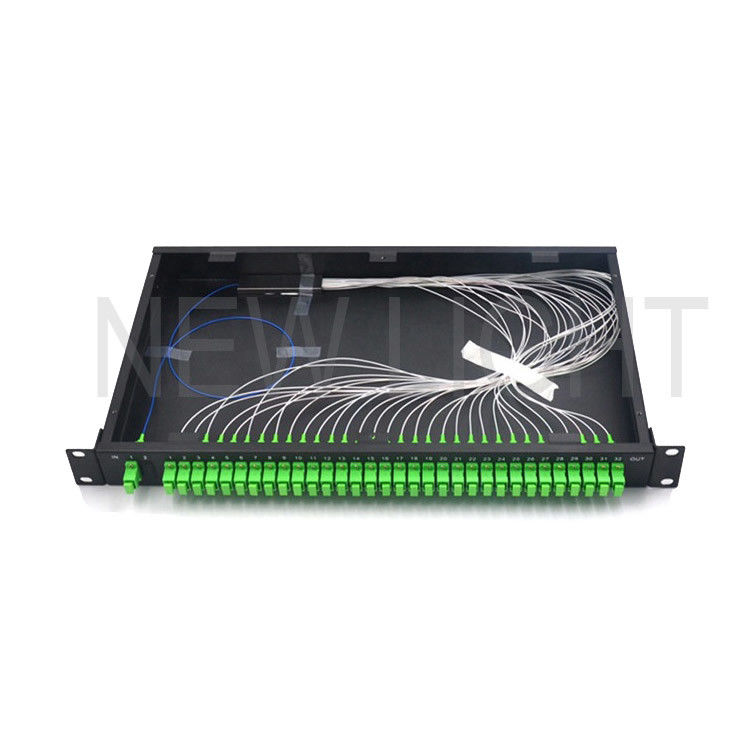

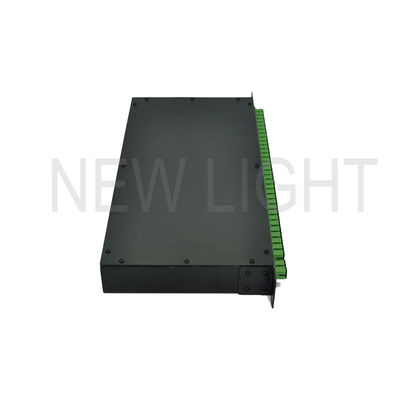

Rack Mounted 1x32 Fiber Optic Splitter with Stainless Steel Tube for High Reliability PLC Optical Splitter

All Category

Switch And Socket

Mrs. Alice

sales03@newlightfiber.com

0086-13534063703

86 13534063703

Contact Now

Rack Mounted 1x32 Fiber Optic Splitter with Stainless Steel Tube for High Reliability PLC Optical Splitter

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1 In 2 Out Mini Type PLC Splitter

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

LC SC FC ST E2000 Optical Input Splitter, Rack Mounted Type 1x32

PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, featuring small volume, wide working wavelength range, high reliability, and excellent light uniformity. This makes it particularly suitable for passive optical networks (EPON, BPON, GPON) to connect local and terminal equipment and distribute optical signals.

Product Overview

The bare PLC splitter consists of a PLC splitter chip and input/output optical fiber arrays housed in a square metal tube. Available with 0.9mm or 250μm bare fiber outputs, these can be welded or processed with various types of optical fiber connectors.

Available Configurations

Split ratios: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32, 2x64
Unconnectorized options available
Fiber jacketing: 2mm up to 3mm
Rack mount type or inside metal box/patch panel type
Connector options: SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC
Custom connector configurations and combinations

Key Features

High uniformity and reliability
Easy installation
Compliant with GR-1221 and GR-1209 standards
Various coupling ratios available
Single mode and multi mode options
Low PDL, low excess loss, low insertion loss
Environmentally stable performance
Compact design with standard and compact sizes
Wide operating wavelength: 1260nm to 1650nm
Wide operating temperature: -40°C to 85°C

Technical Specifications

1xN Splitter Parameters

Parameters	1*2	1*4	1*8	1*16	1*32	1*64	1*128
Operating wavelength	1260-1650nm
Insertion Loss (dB)(P/S Grade)	3.6/4.0	7.2/7.4	10.2/10.5	13.5/13.7	16.2/16.7	20.5/21	23.8/24.5
Uniformity (dB)	0.4	0.6	0.8	1	1.2	1.8	2
PDL (dB)	0.2	0.2	0.3	0.3	0.3	0.4	0.5
Return Loss (dB)	≥55
Directivity (dB)	≥55
TDL (dB)	0.5
Operating/Storage Temperature (°C)	-40~85

2xN Splitter Parameters

Parameters	2*2	2*4	2*8	2*16	2*32	2*64	2*128
Operating wavelength	1260-1650nm
Insertion Loss (dB)(P/S Grade)	3.8/4.2	7.5/7.8	10.7/11	14/14.2	17/17.5	21/21.5	25/25.5
Uniformity (dB)	0.6	1	1.2	1.5	1.8	2	2.5
PDL (dB)	0.2	0.2	0.3	0.3	0.3	0.4	0.4
Return Loss (dB)	≥55
Directivity (dB)	≥55
TDL (dB)	0.5
Operating/Storage Temperature (°C)	-40~85

Additional Specifications

Wavelength: 1260-1650nm
Material: PVC, ABS
Design: OEM & ODM available
Dimensions:
- A (2,4,8 port): 60L*7W*4H mm
- B (16 port): 60L*12W*4H mm
- C (32 port): 80L*20W*6H mm
Connectors: FC, SC, ST, LC, LC/APC, SC/APC, MU, FC/APC fiber optic connectors available

Product Images

Packing & Delivery

Trade terms: FOB, CIF, CFR, etc.
Price Terms: T/T, Western Union, Paypal
Payment Terms: T/T in advance
MOQ: 10 pcs
Port: Shenzhen
Lead time: Within 5 working days after receiving payment
Shipment: Express, Air
Sample availability: Yes (not free)
Package: Carton/wooden package

Frequently Asked Questions

Q: Are you manufacturer?

A: Yes, we are manufacturer in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 pcs, but we don't recommend ordering just 1 piece as the cost will be higher, resulting in a higher price than your budget.

Q: What's the price?

A: The price depends on your quantity. After you let us know your quantity, we will offer our best price. Large quantities receive very competitive pricing.

Q: Can you quote FOB price?

A: Yes we can, but due to the small size and weight, most deliveries are by air (DHL, TNT, UPC, FEDEX, etc.). EXW price or CFR price may be better options. Contact us for more solutions if needed.

Q: How is your quality?

A: Our production follows IEC and European standards in nearly dust-free workshops. We use imported production equipment and quality control equipment, with all products 100% tested before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time can be 2-3 working days for 5000 pcs. Regular products are in stock, and we can handle urgent orders.

Q: What's your warranty?

A: For patch cords, we offer 2 years warranty since delivery for non-artificial damage. For artificial damage, we can repair for free but freight will be paid by your side.

Q: What's your packing?

A: We use international export packaging and can print your logo on the packaging.

Q: Can you do OEM/ODM?

A: Yes, we can. We are a manufacturer and all products accept OEM/ODM. We can sign confidentiality agreements.

Q: Can I have a sample?

A: For adaptors, attenuators, patch cords, and pigtails, we can provide samples for free but freight is repaid by your side. For high-value products, sample charges apply but will be returned after order placement.

Q: How can I order?

A: Send us your product requirements, specifications, and quantity. We'll provide pricing and lead time. After acceptance, we'll issue a proforma invoice and begin production after payment receipt.

Q: What are your payment terms?

A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit in advance, 50% balance paid before delivery.
