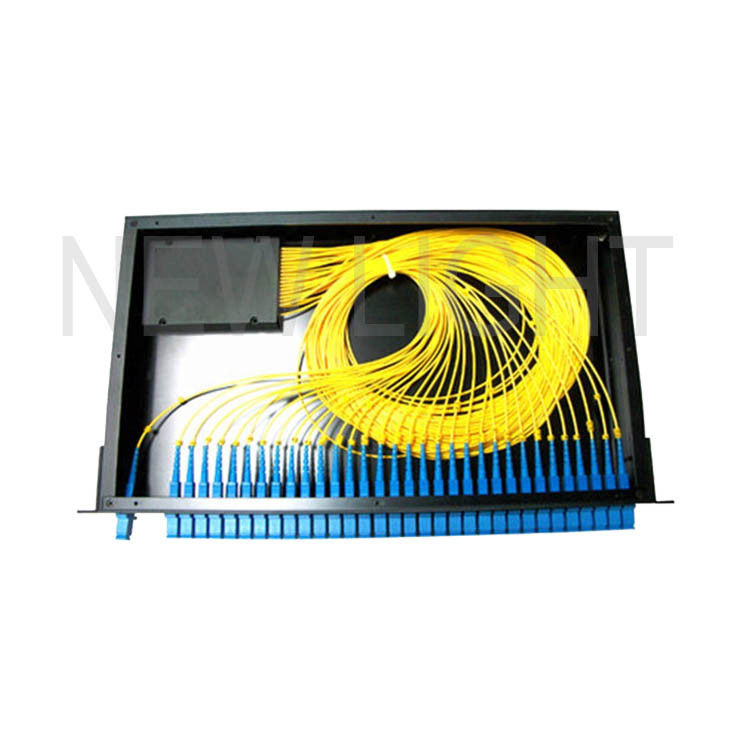

1*8 1*16 1*32 19 Inch Fiber Optic Splitter Types / Rack Mount Fiber Splitter Box

1*8 1*16 1*32 19 Inch Fiber Optic Splitter Types / Rack Mount Fiber Splitter Box

    • 1*8 1*16 1*32 19 Inch Fiber Optic Splitter Types / Rack Mount Fiber Splitter Box
    • 1*8 1*16 1*32 19 Inch Fiber Optic Splitter Types / Rack Mount Fiber Splitter Box
    • 1*8 1*16 1*32 19 Inch Fiber Optic Splitter Types / Rack Mount Fiber Splitter Box
  • 1*8 1*16 1*32 19 Inch Fiber Optic Splitter Types / Rack Mount Fiber Splitter Box

    Product Details:

    Place of Origin: Shenzhen China
    Brand Name: New Light
    Certification: CE , ISO ,RoSH
    Model Number: Mini Type

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: can be negotiated
    Packaging Details: opp bag + carton box
    Delivery Time: 2-10 working days
    Payment Terms: T/T, Western Union, MoneyGram, paypal
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 1 In 2 Out Mini Type PLC Splitter Connector Type: SC / E2000
    Mode Type: Single Mode OEM / ODM: Acceptable
    Tube Materials: Stainless Steel Certificate: CE , ISO , RoHS
    Cable Length: 1~3m Cable Diameter: 0.9mm , 0.6mm, 0.25mm

    1*8 1*16 1*32 Rack Mount Fiber Splitter Box 19 Inch fiber optic splitter types



    1 . Description



    Rack Mount PLC Splitter is a high quality passive device. It is especially for passive internet (EPON, BPON, and GPON). we offers whole series of 1xN and 2xN Rack Mount PLC Splitter, including 1x2,4, 8, 16, 32 and 2x2,4, 8, 16, 32 type, they are available in the flexible form of 1U 19'' rackmountable box and 2U 19'' rackmountable box.



    Options:


    1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
    2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
    Unconnectorized
    Fiber jacketing outside boxes 2mm and up to 3mm
    Rack mount type or inside metal box/patch panel type
    SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options
    Custom connector configurations and combinations



    2 . Features:
    Low insertion loss, PDL and high Back Reflection
    Good channel-to-channel uniformity
    Wide Operating Wavelength: From 1260nm to 1650nm
    High Mechanical Stability and Reliability
    Wide Operating Temperature: From -40℃ to 85℃
    Compact package





    3 . Compliance


    Telcordia GR-1209-CORE
    Telcordia GR-1221-CORE
    RoHS



    1 X N

    Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
    Operating wavelength 1260 ~1650nm
    Insertion Loss (dB)(P/S Grade) 3.6/4.0 7.2/7.4 10.2/10.5 13.5/13.7 16.2/16.7 20.5/21 23.8/24.5
    uniformity (dB) 0.4 0.6 0.8 1 1.2 1.8 2
    PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.5
    Return Loss (dB) ≥55
    Directivity (dB) ≥55
    TDL(dB) 0.5
    Operating/Storage Temperature () -40~85



    2 x N

    Parameters 2×2 2×4 2×8 2×16 2×32 2×64 2×128
    Operating wavelength 1260 ~1650nm
    Insertion Loss (dB)(P/S Grade) 3.8/4.2 7.5/7.8 10.7/11 14/14.2 17/17.5 21/21.5 25/25.5
    uniformity (dB) 0.6 1 1.2 1.5 1.8 2 2.5
    PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.4
    Return Loss (dB) ≥55
    Directivity (dB) ≥55
    TDL (dB) 0.5
    Operating/Storage Temperature () -40~85







    Wavelength(nm): 1260-1650
    Material PVC ABS
    Design OEM & ODM
    Specifications A (2.4.8 port) : 60L*7W*4H mmB (16 port ) : 60L*12W*4H mmC (32 port ) : 80L*20W*6H mm
    Connectors FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC fiber optic connectors are available
    Parameters 1x2 1x4 1x8 1x16 1x32 1x64 1x128
    Insertion Loss (dB) ≤4.2 ≤7.4 ≤10.7 ≤13.9 ≤17.2 ≤21.5 ≤24
    PDL (dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.5
    Uniformity (dB) ≤0.6 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
    Return Loss (dB) ≥50
    Directivity (dB) ≥55
    Directivity (dB) ≥55
    Temperature Range (°C) -40~+75
    Storage Temperature (°C -40~+85
    NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.









    1*8 1*16 1*32 19 Inch Fiber Optic Splitter Types / Rack Mount Fiber Splitter Box

    1*8 1*16 1*32 19 Inch Fiber Optic Splitter Types / Rack Mount Fiber Splitter Box

    1*8 1*16 1*32 19 Inch Fiber Optic Splitter Types / Rack Mount Fiber Splitter Box









    1*8 1*16 1*32 19 Inch Fiber Optic Splitter Types / Rack Mount Fiber Splitter Box

    1*8 1*16 1*32 19 Inch Fiber Optic Splitter Types / Rack Mount Fiber Splitter Box




    Packing & Delivery


    Trade Info:
    Trade terms: FOB,CIF,CFR,etc
    Price Terms: T/T,Western Union,Paypal
    Payment Terms: T/T in advance
    MOQ:10 pcs
    Port: Shenzhen
    Lead time: Within 5 working days after receiving payment.
    Shipment: Express, Air
    Sample availability: Yes( not free)
    Package information: carton/wooden package







    FQA



    1. Q : Are you manufacturer ?

    A: yes, we are manufacturer in Shenzhen,China



    2. Q : What's your MOQ ?

    A: MOQ can be 1 pcs , but we are not suggest to order 1 pcs , because the cost will be higher , so that the price will be higher than your budget .



    3. Q : What's the price ?

    A : The price is according to your quantity . After you let us know your quantity , we will offer our best price for you . Big Quantity will get very competitive price .



    4. Q: Can you quote FOB price ?

    A : yes we can , But due to the size and weight is not big , most are delivery by air ,DHL , TNT , UPC , FEDEX ,etc . So it it difficult to do FOB price . The best way is let us know your detailed specifications and quantity , we will offer the freight with products price for your reference .



    We have very competitive price logist . If your quantity is big and there are dozens of carton boxes , we can figure out freight by sea for your reference .



    EXW price or CFR price will be better . You can contact us for more solution if you need .



    5. Q: How is your quality ?

    A: Our production is according to IEC , Europe standard production , almost closed to dust-free workshop . Imported production equipment and quality control equipment . Especially MTP Daisi equipments .



    All the products are 100% test before delivery .



    6. Q : Whats your lead time ?

    A : We have three factories in China . One factory for fiber optic cable production , two factories for patch cord , PLC , ODF , adaptor ,attenuators ,etc .

    For fiber optic patch cord , the lead time can be 2 -3 owrking days for 5000 pcs . regular products we are have it in stock . We can deal with urgent order for you . More informations , you can feel free to contact us .



    7. Q : Whats your warranty ?

    A : for patch cord , we have 2 years warranty since delivery , but only responsible for non-artificial damage . For artificial damage , we can repare it for you for free ,but freight will be paid by your side .



    8. Q : Whats your packing ?

    A : We are using international export package . attached some packing of different products for your reference . We also can print your logo on the packing



    9. Q: Can you do OEM/ODM ?

    A: yes , we can . We are manufacturer , all products are accept OEM /ODM . we can sign the Confidentiality agreement .



    10. Q: Can I have a sample ?

    A: It depends on which products , for adaptor , attenuator ,patch cord , pigtail , we can provide a sammple for you for free . But freight repaid by your side .

    For big value products , we can't offer it for free , sample charge and freight repaid first , after you placed order , the sample charge will be returned.



    11. Q: How can I order ?

    A: 1. send mail to us or send inquiry . let us know the products name , detailed specifications , quantity . Provide your receive address if you need us to figure out freight for you .

    2. After we know your requirements , will offer our best price for you ,with lead time . The price is according to your quantity .

    3. When you accept the quotation , we will make Profoma Invoice with our bank account .

    4. We will arrange the production for you after we received payment .

    5. Before we delivery will confirm the receive information with you again .and will send the tracking number to you after delivery .

    6. We will try our best to meet your requirements for long-term cooperation .



    12. Q: What your payment term ?

    A: T/T , Western Union , Paypal ,MoneyGram at once .For big amount , can 50% deposit in advance , 50% balance paid before delivery .
