1x8 1x16 1x32 19 Inch Rack Mount Fiber Optic PLC Splitter with Low Insertion Loss

Brand Name:	New Light
Model Number:	Mini Type
MOQ:	10
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Product Name:

1 In 2 Out Mini Type PLC Splitter

Connector Type:

SC / E2000

Mode Type:

Single Mode

OEM / ODM:

Acceptable

Tube Materials:

Stainless Steel

Certificate:

CE , ISO , RoHS

Cable Length:

Cable Diameter:

0.9mm , 0.6mm, 0.25mm

Supply Ability:

1000000

Highlight:

fiber optic plc splitter

single mode fiber splitter

Product Description

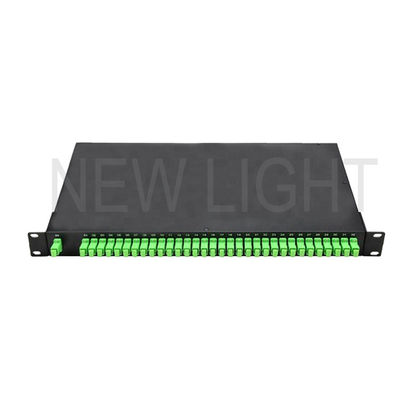

Rack Mount PLC Fiber Optic Splitter Box

High-quality passive device designed for passive internet applications including EPON, BPON, and GPON networks. Available in 1U and 2U 19-inch rack-mountable configurations.

Available Configurations

Split Ratios: 1x2, 1x4, 1x8, 1x16, 1x32, 1x64
Dual Split Ratios: 2x2, 2x4, 2x8, 2x16, 2x32, 2x64
Unconnectorized options available
Fiber jacketing: 2mm to 3mm
Rack mount type or inside metal box/patch panel type
Connector options: SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC
Custom connector configurations and combinations

Key Features

Low insertion loss, PDL and high back reflection
Excellent channel-to-channel uniformity
Wide operating wavelength: 1260nm to 1650nm
High mechanical stability and reliability
Wide operating temperature: -40℃ to 85℃
Compact package design

Compliance Standards

Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, RoHS

Technical Specifications - 1xN Splitter

Parameters	1*2	1*4	1*8	1*16	1*32	1*64	1*128
Operating wavelength	1260 ~1650nm
Insertion Loss (dB)(P/S Grade)	3.6/4.0	7.2/7.4	10.2/10.5	13.5/13.7	16.2/16.7	20.5/21	23.8/24.5
Uniformity (dB)	0.4	0.6	0.8	1	1.2	1.8	2
PDL (dB)	0.2	0.2	0.3	0.3	0.3	0.4	0.5
Return Loss (dB)	≥55
Directivity (dB)	≥55
TDL(dB)	0.5
Operating/Storage Temperature (℃)	-40~85

Technical Specifications - 2xN Splitter

Parameters	2*2	2*4	2*8	2*16	2*32	2*64	2*128
Operating wavelength	1260 ~1650nm
Insertion Loss (dB)(P/S Grade)	3.8/4.2	7.5/7.8	10.7/11	14/14.2	17/17.5	21/21.5	25/25.5
Uniformity (dB)	0.6	1	1.2	1.5	1.8	2	2.5
PDL (dB)	0.2	0.2	0.3	0.3	0.3	0.4	0.4
Return Loss (dB)	≥55
Directivity (dB)	≥55
TDL (dB)	0.5
Operating/Storage Temperature (℃)	-40~85

Additional Specifications

Wavelength: 1260-1650nm
Material: PVC, ABS
Design: OEM & ODM
Dimensions:
- 2,4,8 port: 60L*7W*4H mm
- 16 port: 60L*12W*4H mm
- 32 port: 80L*20W*6H mm
Connectors: FC, SC, ST, LC, LC/APC, SC/APC, MU, FC/APC

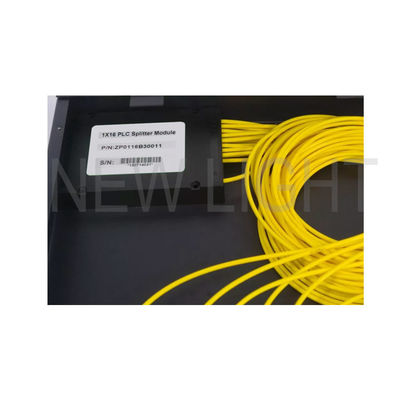

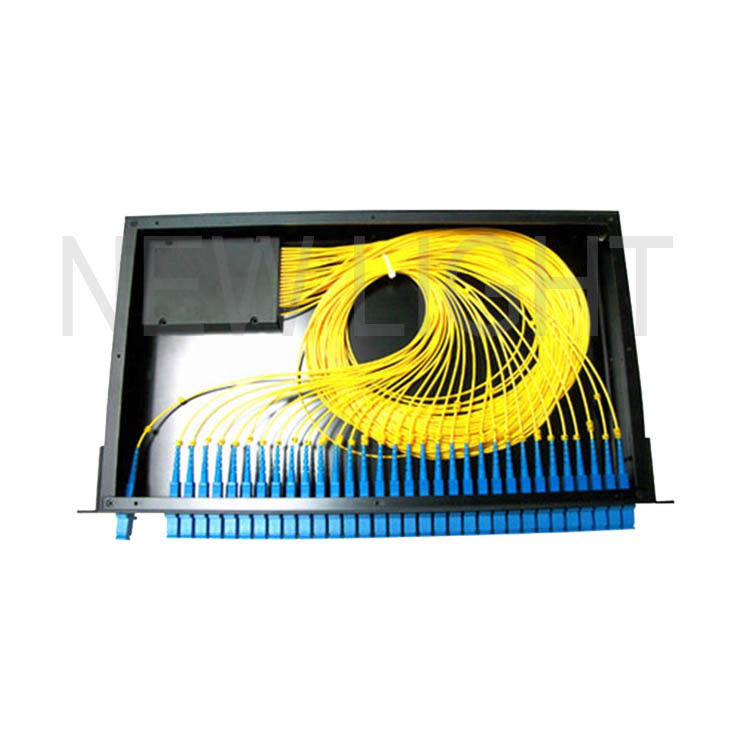

Product Images

Packing & Delivery Information

Trade Terms: FOB, CIF, CFR, etc.
Price Terms: T/T, Western Union, Paypal
Payment Terms: T/T in advance
MOQ: 10 pcs
Port: Shenzhen
Lead Time: Within 5 working days after receiving payment
Shipment: Express, Air
Sample Availability: Yes (not free)
Package: Carton/wooden package

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering just 1 piece as the cost will be higher, resulting in a higher price than your budget.

What's the price?

The price depends on your quantity. After you provide your quantity requirements, we will offer our best price. Large quantities receive very competitive pricing.

Can you quote FOB price?

Yes we can, but due to the small size and weight, most deliveries are by air (DHL, TNT, UPC, FEDEX, etc.). EXW price or CFR price is usually better. Contact us for more solutions if needed.

How is your quality?

Our production follows IEC and European standards in nearly dust-free workshops. We use imported production equipment and quality control equipment. All products are 100% tested before delivery.

What's your lead time?

We have three factories in China. For fiber optic patch cords, lead time can be 2-3 working days for 5000 pieces. Regular products are typically in stock. We can handle urgent orders.

What's your warranty?

For patch cords, we offer 2 years warranty since delivery for non-artificial damage. For artificial damage, we can repair it for free but freight will be paid by the customer.

What's your packing?

We use international export packaging. We can also print your logo on the packaging.

Can you do OEM/ODM?

Yes, we can. We are a manufacturer and all products accept OEM/ODM. We can sign confidentiality agreements.

Can I have a sample?

For adaptors, attenuators, patch cords, and pigtails, we can provide samples for free but freight is paid by the customer. For high-value products, sample charges and freight must be paid first and will be returned after order placement.

How can I order?

Send us an email or inquiry with product name, detailed specifications, quantity, and delivery address. We'll provide our best price and lead time. After acceptance, we'll create a proforma invoice and arrange production after payment.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large amounts, 50% deposit in advance and 50% balance paid before delivery.
