3 dB Attenuation 12 Fiber MPO Attenuator Single Mode Fiber Optic Attenuator for 40G/100G Networks

Brand Name:	New Light
Model Number:	MPO
MOQ:	10
Price:	1~30
Packaging Details:	standard export package
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO / RoHS

Product Name:

3db 12 Fiber MPO Optical Fiber Attenuator Single Mode 9/125 Um

Connector Type:

MPO / MTP

Material:

Plasticl

Mode Type:

Single Mode

Repeatability:

>1000 Times

Attenuation:

3 DB

Return Loss:

≥60dB

Operate Temperature:

-40-+80

Fiber Count:

12 FIBER

Supply Ability:

100,000 pcs per month

Highlight:

variable optical attenuator

single mode fiber attenuator

Product Description

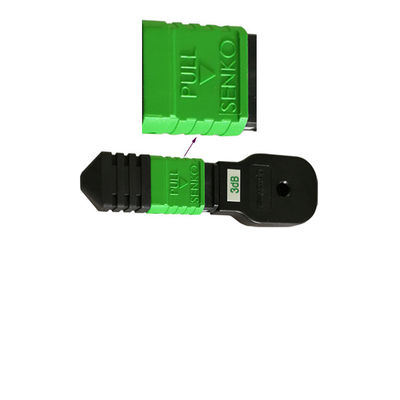

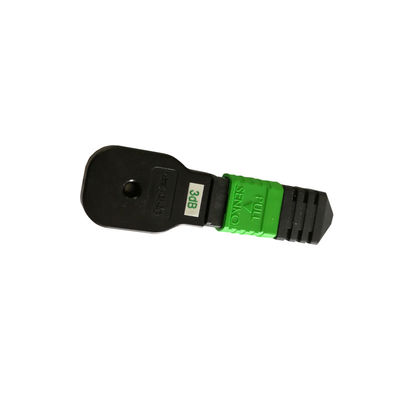

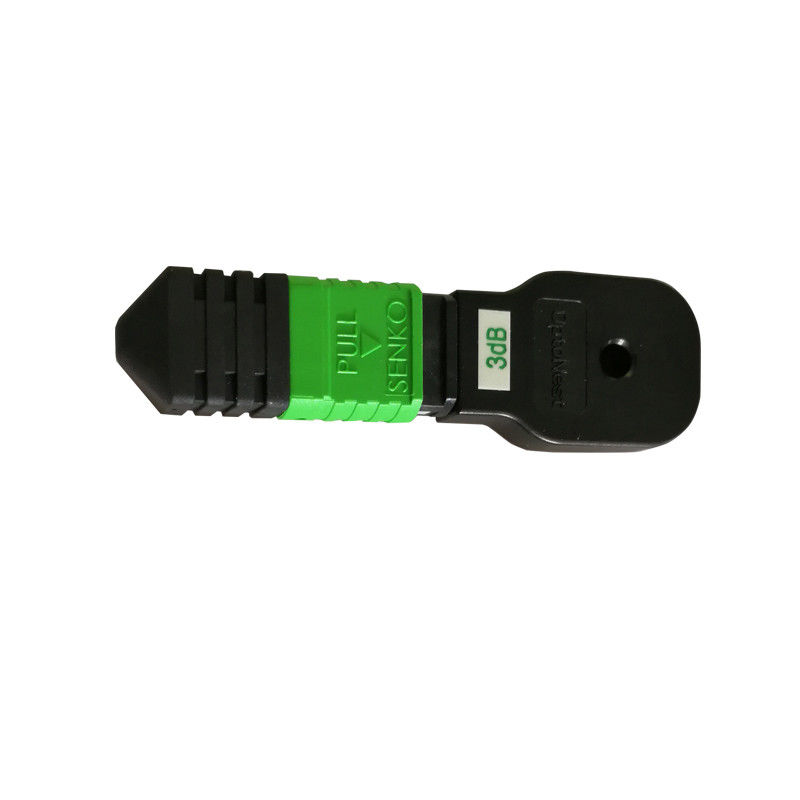

3dB 12 Fiber MPO Optical Fiber Attenuator

This single-mode 9/125μm MPO fiber optic attenuator features female and male connectors with customizable attenuation levels from 1-30dB. Standard options include 3dB, 5dB, and 7dB attenuation values.

Fiber optic attenuators are passive components designed to reduce optical signal power levels in fiber optic transmission systems. Measured in decibels (dB), these devices are essential for single-mode long-haul applications and comply with TIA/EIA 604-5, IEC61754-7, and RoHS standards.

Technical Specifications

Parameter	Specification
Operating Wavelength	1310/1550 nm
Core Count	12 core
Mode Type	Single-mode
Return Loss (PC/UPC/APC)	≥50 dB / ≥55 dB / ≥60 dB
Attenuator Value	Customizable 1-30 dB
Maximum Optical Input Power	200 mW
Bellcore Compliance	Wavelength Independent (DWDM)
Operating Temperature	-40°C to +85°C
Attenuation Accuracy	±0.5 dB (1-10 dB) ±1.0 dB (11-30 dB)
Storage Temperature	-40°C to +85°C

Contact for Inquiries: WhatsApp 008613534063703

Key Features

Low back reflection and low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range (1-30 dB)
Precision ceramic ferrule
Multiple connector options: FC, SC, ST, LC
Plastic or metal housing material

Applications

Testing equipment
Fiber Optical CATV systems
Fiber Optical Sensors
Fiber Optical Telecommunication Systems
40G/100G optical network optical link testing

Ordering Information

Step 1: Connector type: FC, SC, LC, ST, MU

Step 2: Ferrule End-face: PC, UPC, APC

Step 3: Type: Single-mode, Multimode

Step 4: Attenuation: 1-10dB (1dB step), 15, 20, 25, 30dB

Step 5: Mode: Fixed, Female&Male, In-line, Variable

Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm

Example: LC/UPC-SM-5dB-Female&Male

Packaging

Each unit is packaged in a PE bag with stick label. Custom logo printing available upon request.
