Product Details:
|
| Product Name: | 3db 12 Fiber MPO Optical Fiber Attenuator Single Mode 9/125 Um | Connector Type: | MPO / MTP |
|---|---|---|---|
| Material: | Plasticl | Mode Type: | Single Mode |
| Repeatability: | >1000 Times | Attenuation: | 3 DB |
| Return Loss: | ≥60dB | Operate Temperature: | -40-+80 |
| Fiber Count: | 12 FIBER | ||
| High Light: | variable optical attenuator,single mode fiber attenuator |
||
Fiber Optic Attenuator Product Name

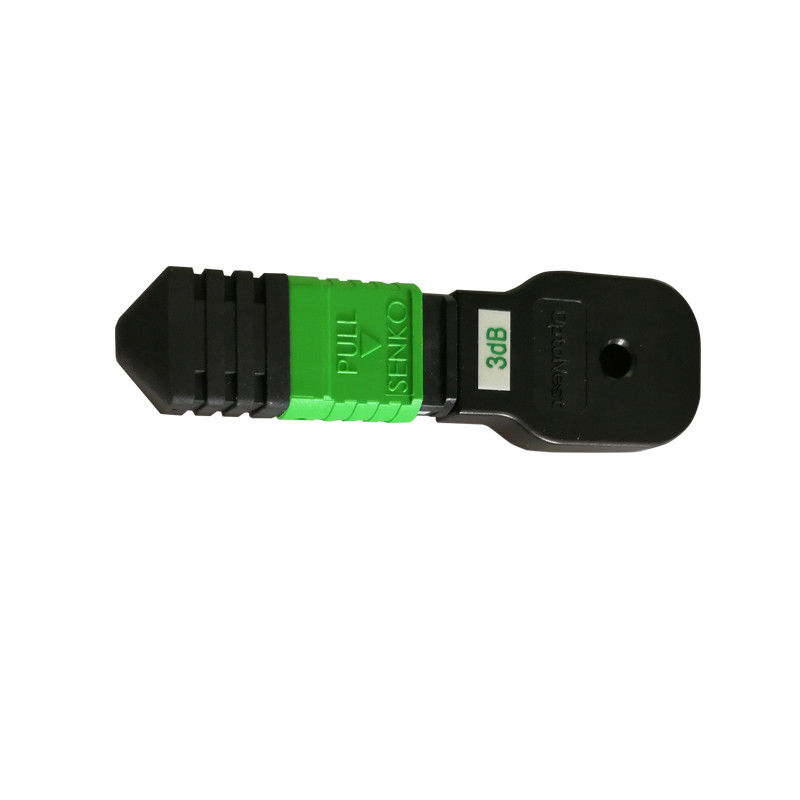

3db 12 Fiber MPO Optical Fiber Attenuator Single Mode 9/125 Um
Fiber Optic Attenuator Product Description
The MPO fiber optical attenuator has female and male connectors. The attenuation can be 1-30dB according to your requirements.
Normally, it is 3dB, 5dB, and 7dB attenuation. But it can be another attenuation if you need it.
A fiber optic attenuator is a passive component that is used to reduce the power level of an optical signal by a predetermined factor in the fiber optic transmission system.
The intensity of the signal is described in decibels (dB) over a specific distance the signal travels. Fiber optic attenuators are generally used in the single-mode long-haul applications.
Product Description MPO loopback attenuator is applied to 40G/100G optical network optical link test, which not only meets TIA/EIA's 604-5 and IEC61754-7 standards, but also strictly complies with RoHS standards, and meets the fire test specifications of network components.
Technical parameters:
| Item |
Specification
|
||
| PC | UPC |
APC
|
|
| Operating Wavelength (nm): |
1310/1550
|
||
| core count |
12 core |
||
|
mode type |
single-mode | ||
| Return Loss (dB): | ≥50 | ≥55 |
≥60
|
| Attenuator Value: |
According to custom request make 1-30dB
|
||
| Maximum Optical Input Power: |
200mW
|
||
| Bellcore Compliant: |
Wavelength Independent (DWDM)
|
||
| Operating Temperature: |
-40--+85°C
|
||
| Attenuation Accuracy: | +/-0.5 (1-10) +/-1.0 (11-30) |
||
| Durability (well over 100mw): |
Simple and Reliable Structure
|
||
| Storage Temperature: |
-40--+85°C
|
||
Key Features:
1.Low back reflection and Low PDL
2.The high precision attenuation value
3.Precision control of attenuation range
4.Wide attenuation range
5.Precision ceramic ferrule
6.FC, SC, ST, LC … optional
7.Plastic or metal housing material
Application :
1.Testing equipment
2.Fiber Optical CATV
3.Fiber Optical Sensor
4.Fiber Optical Telecommunication System
5.Precision ceramic ferrule
6.FC, SC, ST, LC … optional
7.Plastic or metal housing material
Ordering Information:
LC/UPC-SM-5dB-Female&Male
Step 1: Connector type: FC, SC, LC, ST, MU
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
Packing:
One-piece per PE bag with stick label (we could add customer's logo in the label.)
