Slidable Rack Mount Fiber Optic Distribution Frame with 12/24 Fiber Capacity for Indoor Wall-mount Applications

Brand Name:	Newlight
Model Number:	NL013
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,ROSH

Manufacturers Name:

NewLight

Country Of Origin:

China

Material:

Cold-roll Steel

Splicing Unit:

12fiber

Adapters:

FC, SC, ST, LC

Dimension:

30*30*8.5cm

Fiber Quantity:

10 /12/24

Type:

Indoor Wall-mount

Aplication:

Management Fiber

Supply Ability:

2000 Nos per month

Highlight:

odf optical fiber distribution frame

odf fiber optic patch panel

Product Description

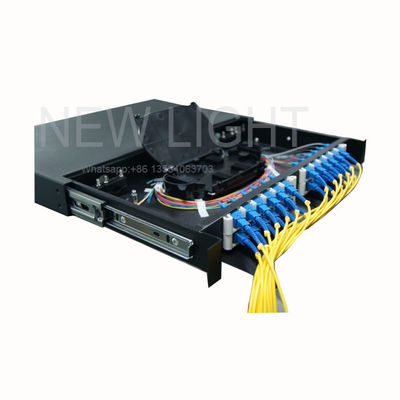

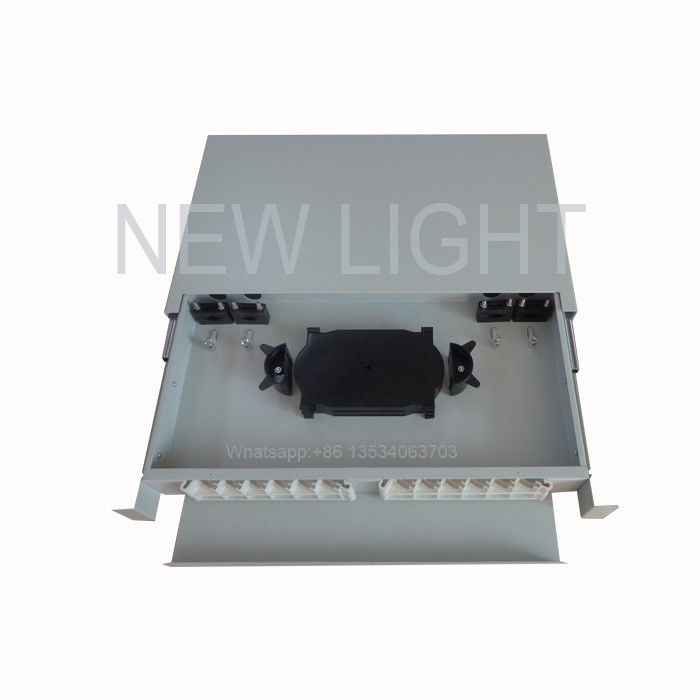

Slidable Rack Mount Fiber Optic Distribution Frame 1U Black / Grey RAL7035

12 / 24 Fiber Wall Mounted Indoor Optical Fiber Distribution Box

This slidable rack-mount fiber optic distribution frame features aluminum sliding fittings with self-locking functions to prevent the drawer from falling when moved. Designed for 19-inch rack mounting, it supports ST, SC, LC, MTRJ, FC, and other adapters. Available in various fiber capacities including 12, 24, 48, and 96 cores. The drawer serves as a holding board for splicing, allowing easy fiber withdrawal during testing and distribution.

Key Features

Interface options: SC, FC, LC, ST, etc.
Core capacity options: 12, 24, 36, 48, 72, 96, 144, etc.
Standard size with lightweight and rational structure
Slide-out drawer for easy cable management
Suitable for ribbon and single fiber applications
Compact design for space-saving installation
Various panel plates to fit different adapter interfaces
Front marking on plates for easy identification and operation
Easy management and operation

Applications

Telecommunications subscriber loop, Fiber to the home (FTTH), LAN/WAN networks, CATV systems

Specifications

Model	Fiber Quantity	Dimensions	Weight
ODF-12B	12/24	28531745.5cm	4.5

Packing & Delivery

Trade Terms: FOB, CIF, CFR, etc.

Price Terms: T/T, Western Union, Paypal

Payment Terms: T/T in advance

MOQ: 1 piece

Port: Shenzhen

Lead Time: Within 5 working days after receiving payment

Shipment: Express, Air

Sample Availability: Yes (not free)

Package Information: Carton/wooden package

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a manufacturer located in Shenzhen, China.

Q: What's your MOQ?

A: MOQ can be 1 piece, but we don't recommend ordering just 1 piece as the cost and price will be higher than your budget.

Q: What's the price?

A: Pricing depends on your quantity. After you specify your quantity, we will provide our best price. Larger quantities receive more competitive pricing.

Q: Can you quote FOB price?

A: Yes, but due to the small size and weight, most shipments are delivered by air (DHL, TNT, UPS, FEDEX, etc.). EXW price or CFR price is usually better. Contact us for more shipping solutions.

Q: How is your quality?

A: Our production follows IEC and European standards in nearly dust-free workshops. We use imported production and quality control equipment. All products are 100% tested before delivery.

Q: What's your lead time?

A: We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are typically in stock. We can accommodate urgent orders.

Q: What's your warranty?

A: For patch cords, we offer 2 years warranty from delivery for non-artificial damage. For artificial damage, we repair for free but freight is paid by customer.

Q: What's your packing?

A: We use international export packaging and can print your logo on the packaging.

Q: Can you do OEM/ODM?

A: Yes, we accept OEM/ODM and can sign confidentiality agreements.

Q: Can I have a sample?

A: For adapters, attenuators, patch cords, and pigtails, we provide free samples with freight paid by customer. For higher-value products, sample charges apply but are refunded with order.

Q: How can I order?

A: 1. Contact us with product name, specifications, quantity, and shipping address. 2. We provide pricing and lead time. 3. Upon acceptance, we issue Proforma Invoice. 4. Production begins after payment. 5. We confirm shipping details and provide tracking. 6. We strive for long-term cooperation.

Q: What are your payment terms?

A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
