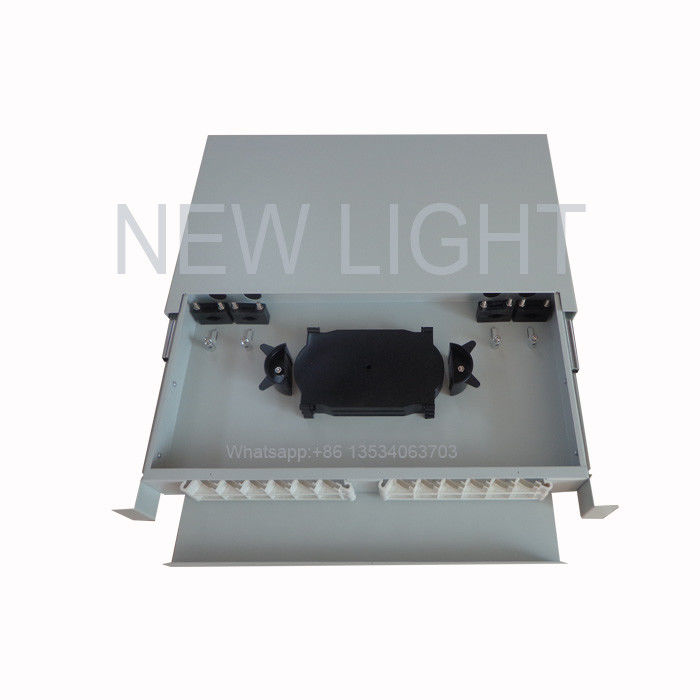

1U Slidable Rack Mount Fiber Optic Patch Panel with 45° Angled Adapters and 12 Fiber Splicing Unit

Brand Name:	Newlight
Model Number:	NL013
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,ROSH

Manufacturers Name:

NewLight

Country Of Origin:

China

Material:

Cold-roll Steel

Splicing Unit:

12fiber

Adapters:

FC, SC, ST, LC

Dimension:

30*30*8.5cm

Fiber Quantity:

10 /12/24

Type:

Indoor Wall-mount

Aplication:

Management Fiber

Supply Ability:

2000 Nos per month

Highlight:

odf optical fiber distribution frame

odf fiber optic patch panel

Product Description

1U Slidable Rack Mounted ODF-1U Holder For Adapters Angled For 45°

The 1U Slidable Rack-mounted ODF-1U features aluminum sliding fittings with self-locking functions to prevent the drawer from falling when moved. This 19-inch rack mount system accommodates ST, SC, LC, MTRJ, FC, and other adapters, supporting fiber quantities from 12 to 96 cores. The sliding drawer design facilitates easy fiber access for testing and distribution.

Key Features

19" server rack and cabinet mountable
Excellent sliding drawer design
Tight and durable construction
4 optical fiber input ports
Up to 48 adapter output ports
Reliable fiber pigtail protection

Insulated core and casing
Easy operation and installation
Multiple interface options: SC/FC/LC/ST
Compact space-saving design
Suitable for ribbon and single fiber
Front marking for easy identification

Applications

Ideal for Local Area Networks, CATV Networks, FTTx Systems, Wide Area Networks, and Test Instruments.

Technical Specifications

Parameter	Specification
Material	Steel and ABS plastic
Appearance	Black finish
Cassettes	1 cassette (splices trays)
Cable Input	4 cable entry ports
Adapters	24 x LC duplex
Working Temperature	-40℃ to +60℃
Design Standards	TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1
Curvature Radius	≥40mm
Lateral Pressure Resistance	500N
Resistance	750N

Product Model Specifications

Model	Fiber Quantity	Dimensions	Weight
ODF-12B	12/24	28531745.5cm	4.5kg

Packing & Delivery Information

Trade Terms: FOB, CIF, CFR

Price Terms: T/T, Western Union, Paypal

Payment Terms: T/T in advance

MOQ: 1 piece

Port: Shenzhen

Lead Time: Within 5 working days after payment

Shipment: Express, Air

Sample Availability: Yes (not free)

Package: Carton/wooden package

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ is 1 piece, though larger quantities receive better pricing.

What's the price?

Pricing varies by quantity. Contact us for competitive pricing based on your requirements.

Can you quote FOB price?

Yes, though EXW or CFR pricing is often more suitable for smaller shipments.

How is your quality?

We follow IEC and European standards with imported production equipment and 100% testing before delivery.

What's your lead time?

Regular products are in stock, with lead times of 2-3 working days for patch cords. We handle urgent orders efficiently.

What's your warranty?

2-year warranty for patch cords covering non-artificial damage.

Can you do OEM/ODM?

Yes, we accept OEM/ODM orders and can sign confidentiality agreements.

Can I have a sample?

Samples available for some products with freight costs covered by customer.
