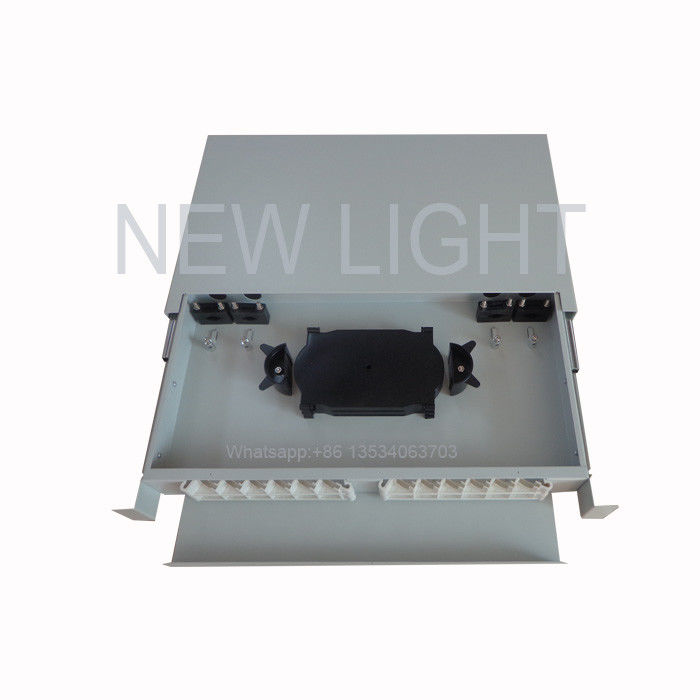

1U Slidable Rack Mounted ODF-1U Holder For Adapters Angled For 45°

1U Slidable Rack Mounted ODF-1U Holder For Adapters Angled For 45°
1U Slidable Rack Mounted ODF-1U Holder For Adapters Angled For 45°
1U Slidable Rack Mounted ODF-1U Holder For Adapters Angled For 45° 1U Slidable Rack Mounted ODF-1U Holder For Adapters Angled For 45° 1U Slidable Rack Mounted ODF-1U Holder For Adapters Angled For 45°

Large Image :  1U Slidable Rack Mounted ODF-1U Holder For Adapters Angled For 45°

Product Details:
Place of Origin: China
Brand Name: Newlight
Certification: ISO9001,ROSH
Model Number: NL013
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: can be negotiated
Packaging Details: opp bag + carton box
Delivery Time: 2-10 working days
Payment Terms: T/T, Western Union, MoneyGram, paypal
Supply Ability: 2000 Nos per month

1U Slidable Rack Mounted ODF-1U Holder For Adapters Angled For 45°

Description
Manufacturers Name: NewLight Country Of Origin: China
Material: Cold-roll Steel Splicing Unit: 12fiber
Adapters: FC, SC, ST, LC Dimension: 30*30*8.5cm
Fiber Quantity: 10 /12/24 Type: Indoor Wall-mount
Aplication: Management Fiber
High Light:

odf optical fiber distribution frame

,

odf fiber optic patch panel

1U Slidable Rack-mounted ODF-1U (holder for adapters angled for 45°)





Description



Slidable Rack-mount Fiber Optic Distribution Frame has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC,etc. adapters. And Fiber Quantity can be 12 core, 24 core, 48 core, 96 core etc.The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.

Rack Mount Fiber Patch Panel is ranging from 12 ports to 48 ports.

It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network.

The rack mount patch panel with 4 cable entry ports on the back maximum is design in sliding structure.

At the back of the box, there are 2 cable fixing bayonets.

The spice tray inside the box is made of ABS material which available for 0.9mm, 2.0mm &3.0mm Fiber Cable.

Each Patch Panel is fully loaded with panels, adaptors, splices trays and accessories and is ready for installation.


Features

• 19" server rack , cabinet mountable
• Excellent sliding drawer design
• Tightness and durable
• Optical fiber input: 4 ports
• Adapter output: up to 48 ports
• Fiber pigtail can provide reliable, perfect protection
• The core and casing is insulation
• Operate and install easily
• FC/SC/ST/Others Adapters for Option, available.

Features:

1, Interface optional: SC/FC/LC/ST etc.
2, Cores optional: 12/24/36/48/72/96/144 etc.
3, Standard size, light weight and reasonable structure
4, Slide out drawer for easy cable management
5, Suitable for ribbon and single fiber
6, Compact design for space saving
7, Various panel plate to fit different adapter interface
8, Front mark on the plate is easy for identification and operation
9, Easy for management and operation



Application

Local Area Network
CATV Network
FTTx System
Wide Area Network
Test Instruments

Specification

Technical Parameters

Material Steel and ABS plastic
Finished product black appearance
Cassette (splices trays) 1-cassettes
Cable input 4 cable entry ports
Adapters 24 x LC duplex

Working temperature -40℃ ~ + 60℃
Design standard TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1
Curvature radius ≥40mm
Extra loss in the splice tray none
Lateral pressure-resistance 500N
Resistance 750N





Specificate

Mode fiber quantity dimension weight
ODF-12B 12/24 285*317*45.5cm 4.5



1U Slidable Rack Mounted ODF-1U Holder For Adapters Angled For 45° 0

Packing & Delivery


Trade Info:
Trade terms: FOB,CIF,CFR,etc
Price Terms: T/T,Western Union,Paypal
Payment Terms: T/T in advance
MOQ:1 pcs
Port: Shenzhen
Lead time: Within 5 working days after receiving payment.
Shipment: Express, Air
Sample availability: Yes( not free)
Package information: carton/wooden package
