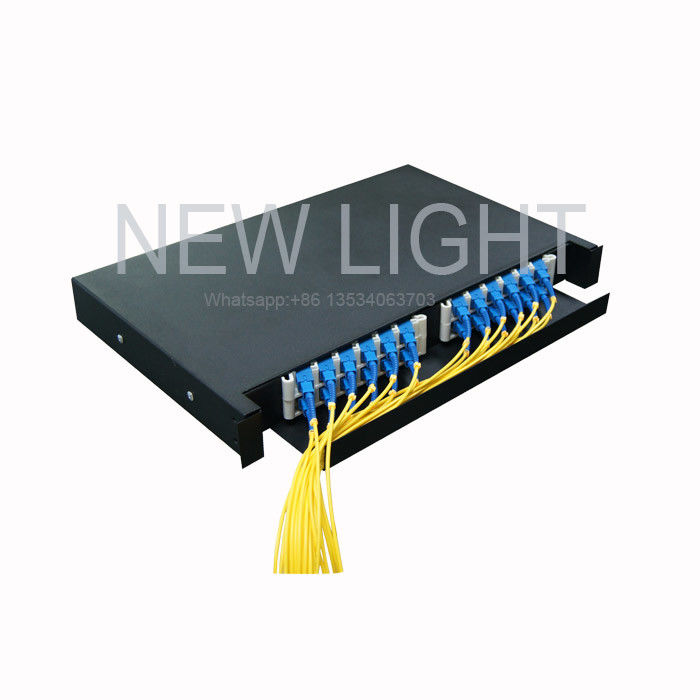

19''/23'' Rack Mount Slidable Drawer Fiber Optic Patch Panel with 12/24 Core for Easy Cable Management

Brand Name:	Newlight
Model Number:	NL013
MOQ:	1~10000
Price:	10~100
Packaging Details:	opp bag + carton box
Payment Terms:	T/T,Western Union,MoneyGram,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,ROSH

Manufacturers Name:

NewLight

Country Of Origin:

China

Material:

Cold-roll Steel

Splicing Unit:

12fiber

Adapters:

FC, SC, ST, LC

Dimension:

30*30*8.5cm

Fiber Quantity:

10 /12/24

Type:

Indoor Wall-mount

Aplication:

Management Fiber

Supply Ability:

2000 Nos per month

Highlight:

fiber optic accessories

fiber optic termination panel

Product Description

19" / 23" Rack Mounted Fiber Optic Patch Panel

This slidable rack-mount fiber optic distribution frame features aluminum sliding fittings with self-locking functions to prevent the drawer from falling when moved. Designed for 19-inch rack mounting with compatibility for ST, SC, LC, MTRJ, FC, and other adapters. Available in 12, 24, 48, and 96 core configurations.

Product Features

Constructed from cold-roll steel with electrostatic painting
ABS plastic tray interior, accommodating 12-24 cores per tray
Multiple adapter plate options: FC, SC, LC, ST, and more
Cable entry ports suitable for single fiber, bundle & ribbon fiber cables
Optimized design for organized cable management
19-inch sliding-out type for easy operation
4 fiber cable entry ports at rear side
Simplex and duplex FC, LC, SC, ST adapters available
12, 24, 48, 96 core configurations
Available in white or black color options
Standard size with lightweight, rational structure

Key Advantages

Standard size, lightweight and rational structure
Compatible with 19" and 23" standard distribution frames
Suitable for ribbon and single fiber applications
Various panel plates to fit different adapter interfaces
Front marking for easy identification and operation
Slide-out drawer for convenient cable management
Compact design for space optimization

Applications

Local Area Network (LAN)
CATV Network
FTTx System
Wide Area Network (WAN)
Test Instruments

Technical Specifications

Technical Parameters

Material: Steel and ABS plastic
Finish: Black appearance
Working temperature: -40℃ to +60℃
Design standards: TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1
Curvature radius: ≥40mm
Extra loss in splice tray: None
Lateral pressure-resistance: 500N
Resistance: 750N

Product Specifications

Model	Fiber Quantity	Dimensions	Weight
ODF-12B	12/24	28531745.5cm	4.5

Packing & Delivery

Trade terms: FOB, CIF, CFR, etc.

Price Terms: T/T, Western Union, Paypal

Payment Terms: T/T in advance

MOQ: 1 pcs

Port: Shenzhen

Lead time: Within 5 working days after receiving payment

Shipment: Express, Air

Sample availability: Yes (not free)

Package information: Carton/wooden package

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a manufacturer located in Shenzhen, China.

What's your MOQ?

MOQ can be 1 piece, but we don't recommend ordering just 1 piece as the cost will be higher, resulting in a higher price than your budget.

What's the price?

The price depends on your quantity. After you specify your quantity, we will offer our best price. Large quantities receive very competitive pricing.

Can you quote FOB price?

Yes we can, but due to the small size and weight, most deliveries are by air (DHL, TNT, UPC, FEDEX, etc.). EXW price or CFR price may be better options. Contact us for more solutions.

How is your quality?

Our production follows IEC and European standards in nearly dust-free workshops. We use imported production equipment and quality control systems. All products are 100% tested before delivery.

What's your lead time?

We have three factories in China. For fiber optic patch cords, lead time is 2-3 working days for 5000 pieces. Regular products are typically in stock.

What's your warranty?

For patch cords, we offer 2 years warranty since delivery for non-artificial damage. For artificial damage, we can repair for free but freight is paid by customer.

What's your packing?

We use international export packaging. We can also print your logo on the packaging.

Can you do OEM/ODM?

Yes, we can. As a manufacturer, all products accept OEM/ODM. We can sign confidentiality agreements.

Can I have a sample?

For adapters, attenuators, patch cords, and pigtails, we can provide samples for free but freight is paid by customer. For high-value products, sample charges apply but will be returned after order placement.

How can I order?

Send us your product requirements, specifications, and quantity. We'll provide pricing and lead time. After acceptance, we'll create a proforma invoice and begin production upon payment receipt.

What are your payment terms?

T/T, Western Union, Paypal, MoneyGram. For large amounts, 50% deposit in advance and 50% balance before delivery.
