1550nm Pass / 980nm Reflect Fiber Optic WDM , FWDM Optic Fiber Splitter

Brand Name:	New Light
Model Number:	WDM
MOQ:	1
Price:	1~30
Packaging Details:	export packing
Payment Terms:	T/T, Western Union, MoneyGram, paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO ,ROSH

Mode Type:

Single Mode

Insertion Loss:

≤ 2.5 DB

Connector Type:

SC/UPC

Nuber Of Channels:

8 Channel

Wavelength:

1470-1610nm

Passband Ripple:

≤0.30dB

Return Loss:

≥45dB

Derectivity:

≥50dB

Fiber Type:

Corning SMF-28 Ultra

Supply Ability:

1000000

Highlight:

wdm in optical fiber

wall mount fiber termination box

Product Description

1550nm Pass/980nm Reflect FWDM 980/1550nm Filter WDM optic fiber splitter

Description

The 1310/1550nm Filter Wavelength Division Multiplexer is based on environmentally stable thin-film filter technology. The devices combine or separate light at different wavelength in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability. High power handling capability can be achieved through unique pigtail processing and high quality AR coating. These components have been extensively used in EDFAs, Raman amplifiers, WDM networks and fiber optical instruments.

WDM is based on proven thin-film folter technology.This WDM is widely used in fiber optical communication system and EDFA where flat and broad operating bands are needed.

2.Features:

Broad Operating Band
High Channel Isolation
Low Insertion Loss
High Reliability and Stability

3.Applications:
EDFA
FTTH
CATV System
WDM System

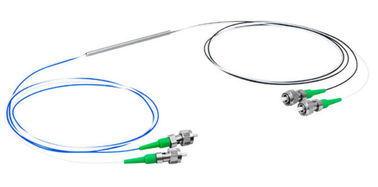

1550nm Pass / 980nm Reflect Fiber Optic WDM , FWDM Optic Fiber Splitter 0

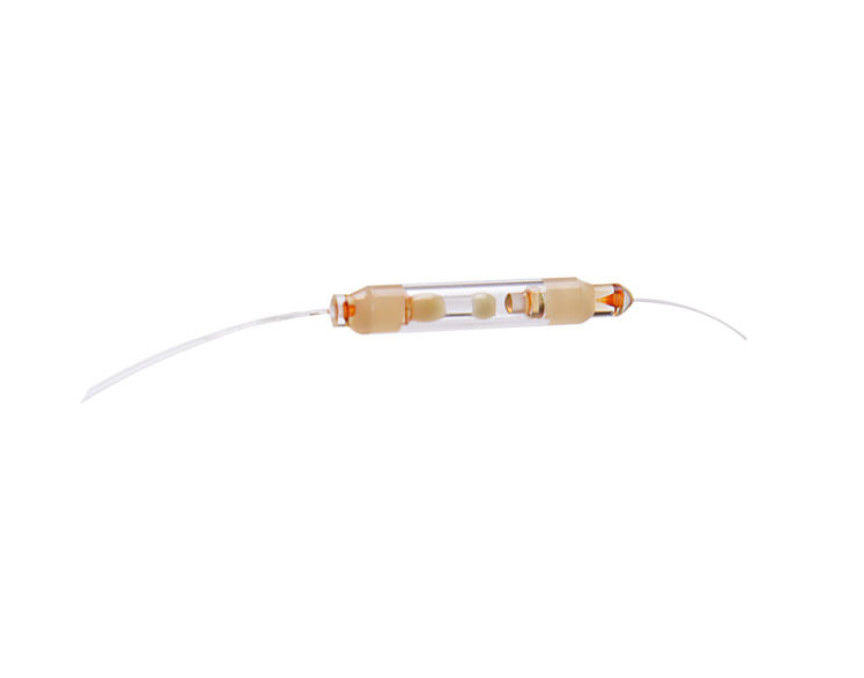

1550nm Pass / 980nm Reflect Fiber Optic WDM , FWDM Optic Fiber Splitter 1

Applications

Access networks
Metro WDM systems
Long haul WDM systems
Enterprise networks

Specifications

Item	Unit	Parameters
Channel spacing	GHz	200
Wavelength range		C- or L-band ITU channels 186.6 to 196.1 THz
Passband	GHz	≥+/- 33
Transmission passband ripple	dB	≤0.3
Transmission insertion loss	dB	≤1.0
Reflection passband ripple	dB	≤0.2
Reflection insertion loss	dB	≤0.4
Transmission isolation (adj channel)	dB	≥30
Transmission isolation (non-adj channel)	dB	≥50
Reflection isolation	dB	≥13
Polarization dependent loss	dB	≤0.2
Polarization mode dispersion	ps	≤0.2
Directivity	dB	≥50
Return loss	dB	≥45
Optical power handling	mW	≥500
Tensile Load	N	≥5
Operating temperature range		-5 to 70
Storage temperature range		-40 to +85 0C
Fiber type		SMF-28e
Package dimension	mm	5.5 x 34mm

Note: All the specifications are based on the devices without connectors, and guaranteed over
wavelength, polarization and temperature.

Dimensions drawing( mm)

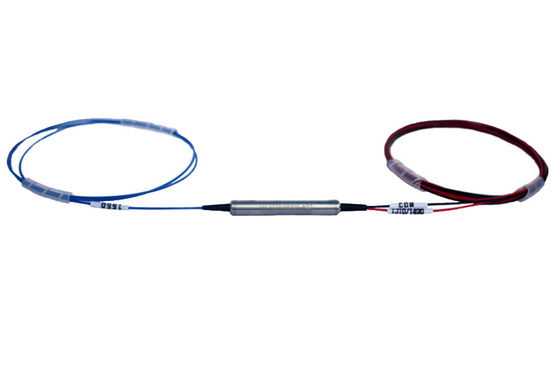

1550nm Pass / 980nm Reflect Fiber Optic WDM , FWDM Optic Fiber Splitter 2

Spectral plot (dB)

Ordering information

Product	Channel Frequency	Tube	Fiber length	Connector
200G	ITU Grid	1=250um fiber	1=0.5+/-0.1m	0=No connector
DWDM Filter	In C-band	2=900um fiber	2=1.0+/-0.1m	1=FC/UPC
		3=Others	3=others	2=FC/APC
				3=SC/UPC
				4=SC/APC
				5=LC

FAQ

1. Are you the real factory?

Yes we are the real factory with 16 years history

2. What is your fiber brand?

Fiber brands including YOFC FiberHome

3. What is your main products?

Fiber optic patch panel , fiber MPO&MTP cassette ,MPO&MTP cables

Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS ,Indoor armored patch cords fiber cable Optical patch cords SC LC FC ST MTP MPO optical patch cords

4. Product quality guarantee period?

20 years Guarantee for fiber optic cable

5. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers

6. What is your delivery time?

Within 48 hours for normal kinds of fiber optic products

7. MOQ: what is your minimum quantity?

MOQ for Fiber Optic Cable Patch Panel 10 set

There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds

8. Do you have distributor in other country or domestic?

Until now we sell our products to customers directly And factory price could be offered

9. Payment

For large orders: T/T

For small orders: T/T and Paypal are acceptable

10. Shipping & Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL) by air or by courier services,any of which is optional

Tags:
